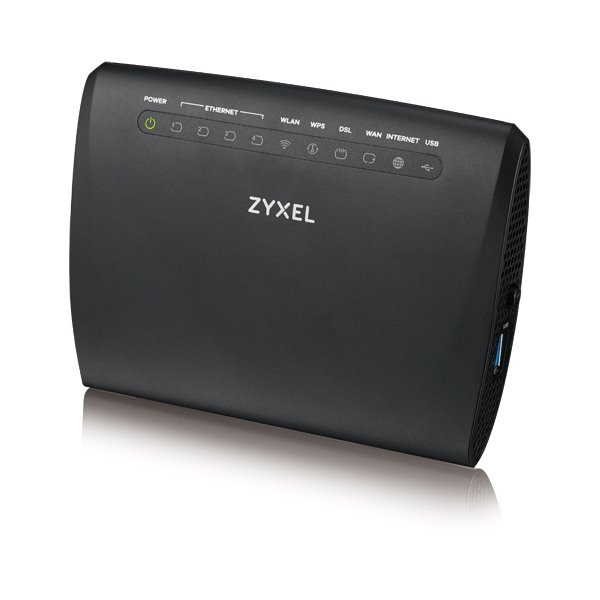

Zyxel VMG3312-T20A je pokročilá VDSL2 brána, ktorá poskytuje automatické snímanie medzi VDSL2 a ADSL2+ pre vysokorýchlostný prístup k internetu. Okrem toho s podporou G.vectoring zvyšuje rýchlosť a pokrytie aby konkurovalo iným širokopásmovým technológiám bez zmeny infraštruktúry.

Wireless Standard

802.11 b/g/n 2.4 GHz
VDSL Compliance

ITU-T G.993.2 VDSL2, band plan 997, 998
VDSL profiles (8a/b/c/d, 12a/b, 17a, 30a)
ITU-T G.993.5 (G.vector)
ITU-T G.998.4 (G.inp): up to 16 symbols
SRA (Seamless Rate Adaptation)
UPBO (Upstream Power Back-off)
PhyR (Physical Layer Retransmission)
TR-114
ADSL Compliance

ITU-T G.992.1 (G.dmt) Annex A
ITU-T G.992.2 (G.lite) Annex A
ANSI T1.413
ITU-T G.992.3 ADSL2
ITU-T G.992.5 ADSL2+
ITU-T G.998.4 (G.inp)
Reach-Extended ADSL (RE ADSL)
SRA (Seamless Rate Adaption)
PhyR (Physical Layer Retransmission)
TR-067/100
WLAN

IEEE 802.11 b/g/n compliance
Frequency: 2.4 GHz
Data rate: 300 Mbps
WPA/WPA2
WPA2-PSK with AES
WPA/WPA2-PSK with AES/TKIP+AES
WEP data encryption 64/128 bit
Wireless Protected Setup (WPS)
Multi SSID (up to 4) and hidden SSID support
USB

File sharing
3G dongle
Bridge/Router

PPPoE (RFC2516)
PPPoA (RFC2364)
DHCP client/server/relay
DHCP option 60/61/125
DNS Proxy/Static DNS/DNS from ISP
NAT (Enable/Disable)
Fullcone NAT (Enable/Disable)
IGMP Proxy (Enable/Disable)
IGMP v1, v2, v3
IEEE 802.1d transparent bridge
NAT server (Port forwarding)
Static route/policy routing
IP protocol (IPv4/IPv6)
VLAN/QoS

VLAN Active (Enable/Disable)/802.1p (0-7)/802.1q (1-4094)
Support flexible traffic classification
TCP/UDP port range
Ether type (NA/IP/ARP/PPPoE Discovery/PPPoE Session/802.1Q/IPv6)
Source & Destination address/subnet mask/port range/MAC/MAC mask
Predefine service
IP protocol (TCP/UDP/ICMP/IGMP/User defined)
DHCP OPT (60/61/77/125)
Packet length
6-bit DiffServ code point (DSCP, RFC 2474)
TCP ACK
Firewall & Security

MAC filter
Scheduler rule
IPv4/IPv6 Firewall (Sateful packet inspection)
Parental control
ACL rule support: (32 ACL rules)
DoS protection
Management

Web/HTTP: 3 level log-in
Login privilege
Command Line Interpreter (CLI) via SSH or Telnet
Firmware upgrade via Web/TFTP/FTP/TR069 RPC method
Text based configuration (XML based)
Configuration backup/update/restore default via Web
Configurable access control for remote management (Interface and/port number)
Trust domain
DSL forum TR-069, TR-098, TR-181 issue-2, TR-064, TR-111
SNMP v1, v2
Rom-D support
TR-069 serial number parameter MUST be device serial number in back label
