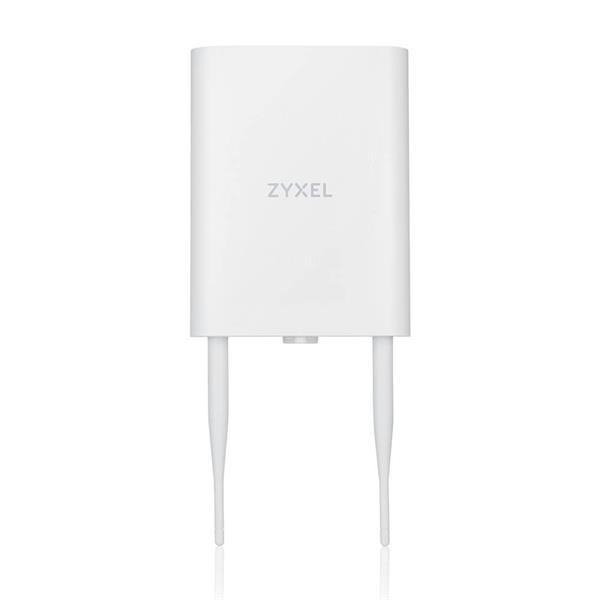

NWA55AXE, Outdoor AP Standalone / NebulaFlex Wireless Access Point, Single Pack include PoE Injector, EU only, ROHS
Popis a parametre
NWA55AXE, Outdoor AP Standalone / NebulaFlex Wireless Access Point, Single Pack include PoE Injector, EU only, ROHS
WiFi 6 na každú restauračnú predzahrádnu alebo do každého kempu - uvažujete o inovácii na technológiu 11ax (WiFi 6) pre vašu vonkajšiu bezdrôtovú sieť? Zyxel NWA55AXE je vaša odpoveď! Zyxel NWA55AXE s krytím IP55, odolný voči poveternostným vplyvom, navrhnutý pre drsné vonkajšie prostredie je najlepším vonkajším prístupovým bodom WiFi 6 na rozšírenie vašej bezdrôtovej siete vonku.
Description 802.11ax (WiFi 6) Dual-Radio Outdoor PoE Access Point
Wireless
Standard IEEE802.11 ax/ac/n/g/b/a
MIMO MU-MIMO
Wireless speed 2.4GHz: 575 Mbps
5GHz: 1200 Mbps
Frequency band 2.4 GHz
USA (FCC): 2.412 to 2.462 GHz
Europe (ETSI): 2.412 to 2.472 GHz
5 GHz
USA (FCC): 5.15 to 5.35 GHz; 5.470 to 5.850 GHz
European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz
Bandwidth 20-, 40- and 80-MHz
Conducted typical transmit output power US (2.4GHz/5GHz): 23/26 dBm
EU (2.4GHz/5GHz): 20/25 dBm
RF Design
Antenna type 2x2 External Antenna
Antenna gain 2.4GHz: 4 dBi
5GHz: 5 dBi
Minimum Receive sensitivity Min. Rx sensitivity up to -99 dBm
WLAN feature
Band Steering Yes
WDS/Mesh Yes
Fast roaming Yes
DCS Yes
Load balancing No
Security
Encryption
WPA Personal
WPA2 Personal
WPA3 Personal
Authentication No
Access management
MAC filtering
Rogue AP detection
Networking
IPv6 Yes
VLANs Yes
WMM Yes
U-APSD Yes
Management
Operating mode
Cloud managed
Standalone
ZON Utility
Discovery of Zyxel switches, APs and gateways
Centralized and batch configurations
IP configuration
IP renew
Device factory reset
Device reboot
Device locating
Web GUI access
Firmware upgrade
Password configuration
Zyxel Wireless Optimizer WiFi AP planning
Web UI/CLI Yes
SNMP NO
Physical Specifications
Item Dimensions (WxDxH)(mm/in.)
308 x 136.4 x 49.6 /12.13 x 5.37 x 1.95
Weight (g/lb.)
580/1.28
Packing Dimensions (WxDxH)(mm/in.)
221 x 188 x 59 / 8.70 x 7.40 x 2.32
Weight (g/lb.)
887/1.96
Included accessories
PoE injector
Mounting screws
MTBF (hr) 1,091,186
Physical Interfaces
Ethernet port 1x 10/100/1000M LAN
Power PoE (802.3at): power draw 16 W
Environmental Specifications
Operating Temperature
-20°C to 60°C/ -4°F to 140°F
Humidity
10% to 90% (non-condensing)
Storage Temperature
-40°C to 70°C/-40°F to 158°F
Humidity
10% to 90% non-condensing
Description 802.11ax (WiFi 6) Dual-Radio Outdoor PoE Access Point
Wireless
Standard IEEE802.11 ax/ac/n/g/b/a
MIMO MU-MIMO
Wireless speed 2.4GHz: 575 Mbps
5GHz: 1200 Mbps
Frequency band 2.4 GHz
USA (FCC): 2.412 to 2.462 GHz
Europe (ETSI): 2.412 to 2.472 GHz
5 GHz
USA (FCC): 5.15 to 5.35 GHz; 5.470 to 5.850 GHz
European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz
Bandwidth 20-, 40- and 80-MHz
Conducted typical transmit output power US (2.4GHz/5GHz): 23/26 dBm
EU (2.4GHz/5GHz): 20/25 dBm
RF Design
Antenna type 2x2 External Antenna
Antenna gain 2.4GHz: 4 dBi
5GHz: 5 dBi
Minimum Receive sensitivity Min. Rx sensitivity up to -99 dBm
WLAN feature
Band Steering Yes
WDS/Mesh Yes
Fast roaming Yes
DCS Yes
Load balancing No
Security
Encryption
WPA Personal
WPA2 Personal
WPA3 Personal
Authentication No
Access management
MAC filtering
Rogue AP detection
Networking
IPv6 Yes
VLANs Yes
WMM Yes
U-APSD Yes
Management
Operating mode
Cloud managed
Standalone
ZON Utility
Discovery of Zyxel switches, APs and gateways
Centralized and batch configurations
IP configuration
IP renew
Device factory reset
Device reboot
Device locating
Web GUI access
Firmware upgrade
Password configuration
Zyxel Wireless Optimizer WiFi AP planning
Web UI/CLI Yes
SNMP NO
Physical Specifications
Item Dimensions (WxDxH)(mm/in.)
308 x 136.4 x 49.6 /12.13 x 5.37 x 1.95
Weight (g/lb.)
580/1.28
Packing Dimensions (WxDxH)(mm/in.)
221 x 188 x 59 / 8.70 x 7.40 x 2.32
Weight (g/lb.)
887/1.96
Included accessories
PoE injector
Mounting screws
MTBF (hr) 1,091,186
Physical Interfaces
Ethernet port 1x 10/100/1000M LAN
Power PoE (802.3at): power draw 16 W
Environmental Specifications
Operating Temperature
-20°C to 60°C/ -4°F to 140°F
Humidity
10% to 90% (non-condensing)
Storage Temperature
-40°C to 70°C/-40°F to 158°F
Humidity
10% to 90% non-condensing
NWA55AXE, Outdoor AP Standalone / NebulaFlex Wireless Access Point, Single Pack include PoE Injector, EU only, ROHS
