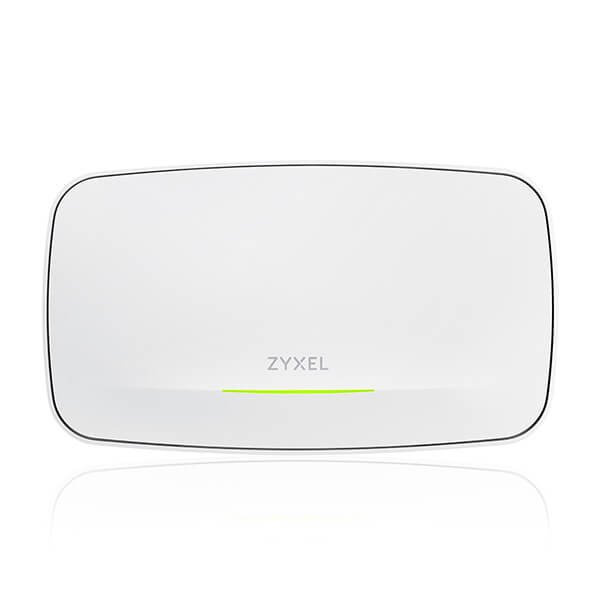

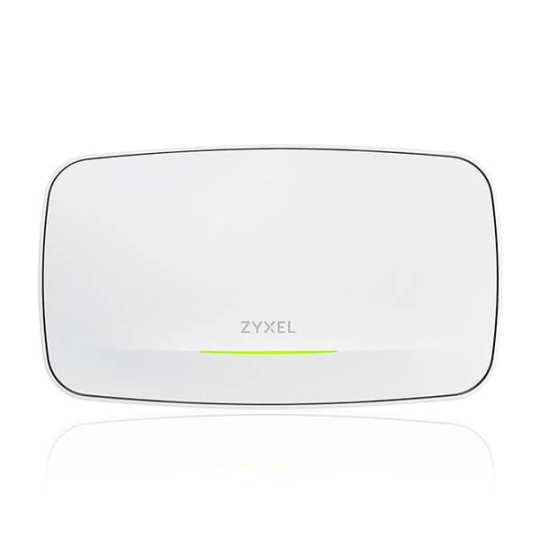

WBE660S, Single Pack 802.11be AP, Smart Antenna, Standalone / NebulaFlex 1 year Nebula Pro pack license bundled EU and UK, exclude Power Adaptor

Wireless
Standard

IEEE802.11 be/ax/ac/n/g/b/a

MIMO

MU-MIMO

Wireless speed

2.4 GHz: 1376 Mbps

5 GHz: 8646 Mbps

6 GHz: 11530 Mbps

Frequency band

2.4 GHz:

USA (FCC): 2.412 to 2.462 GHz

Europe (ETSI): 2.412 to 2.472 GHz


5 GHz:

USA (FCC): 5.15 to 5.35 GHz; 5.470 to 5.850 GHz

European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz


6 GHz:

USA (FCC): 5.925 to 6.425 GHz; 6.525 to 7.125 GHz

European (ETSI): 5.925 to 6.425 GHz

Bandwidth

20-, 40- ,80-, 160- , 240- and 320-MHz

Conducted typical transmit output power*1

US (2.4GHz/5GHz) or +/6GHz):

29/28/23dBm


EU (2.4GHz/5GHz) or +/6GHz):

19/25/22dBm

RF Design
Antenna type

Smart Antenna

Antenna gain

2.4 GHz:

3dBi, 4x4:4SS


5 GHz:

5dBi, 4x4:4SS


6 GHz:

5dBi, 4x4:4SS

Minimum receive sensitivity

Min. Rx sensitivity up to -104 dBm

WLAN Feature
Band steering

Yes

WDS/Mesh*2

Yes

Fast roaming

Pre-authentication, PMK caching and 802.11r/k/v

DCS

Yes

Load balancing

Yes

Advanced cellular coexistence

Yes

Security
Encryption

WEP

WPA

WPA2-PSK

WPA3

Authentication

IEEE 802.1X

RADIUS authentication

Access management

L2-isolation

MAC filtering

Rogue AP detection

Networking
IPv6

Yes

VLANs

Yes

WMM

Yes

U-APSD

Yes

Management
Operating mode

Nebula cloud managed

Controller-managed

Standalone

ZON Utility

Discovery of Zyxel switches, APs and gateways

Centralized and batch configurations:

IP configuration

IP renew

Device reboot

Device locating

Web GUI access

Firmware upgrade

Password configuration

Web UI/CLI

Yes

SNMP

Yes

Physical Specifications
Item

Dimensions (WxDxH)(mm/in.)
310 x 178 x 56 / 12.205 x 7.01 x 2.205

Weight (g/lb.)
1412/3.11

Packing

Dimensions (WxDxH)(mm/in.)
377 x 231 x 93 / 14.84 x 9.09 x 3.66

Weight (g/lb.)
2040/4.497

Included accessories

Mount plate

Mounting screws

MTBF (hr)

242,749
