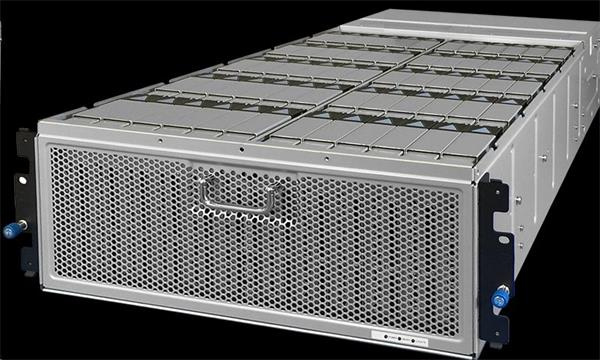

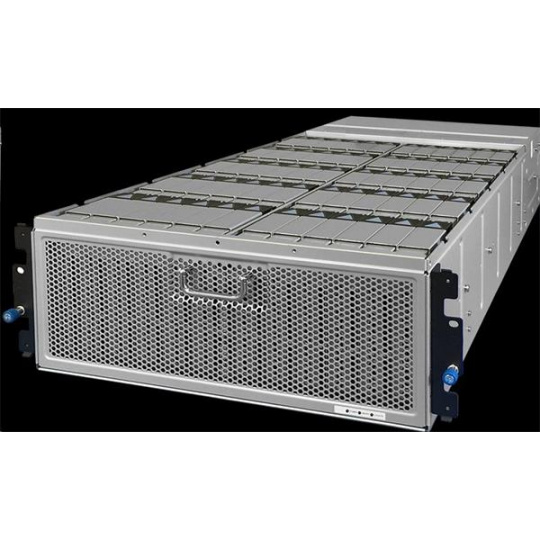

Ultrastar Data102 Hybrid Storage Platform Max. Drives 102 x 3.5” drive bays Up to 24 can be SAS or SATA SSD Drive Interface 12 Gb/s SAS 6 Gb/s SATA Available Drive Capacities HDD up to 14TB SSD up to 15.36TB Host Interface Dual redundant I/O Modules (IOM) 6 Mini-SAS HD ports per IOM Management SCSI Enclosure Services Redfish (out of band, via RJ45) Physical Dimensions Height: 175mm (6.89”) Width: 447mm (17.61”) Depth: 1047mm (41.25”) Depth in Rack: Max of 1,197mm (47.13”) w/ dual CMA—includes 2 SAS cables Weight Product without drives: 31.8kg (70lbs) Product with 102 HDDs: 118.8kg (262lbs) Power Dual 1600W, 80+ Platinum 200-240V AC input, auto ranging, 50-60Hz Cooling 4 main enclosure fans, front-to-rear system cooling with zero-loss backflow prevention 1 I/O module fan Dual PSUs with built-in fans LED Indicators Front/Rear: Power, ID, Fault Drive: Activity, Fault Serviceability Cable-free hot-swappable IOM, power supply, fans and drives Environmental Operating Temperature: 5 to 40°C Non-op Temperature: -40 to 60°C Humidity: 5 to 85% relative humidity Operating Altitude: 40°C @ 3,000ft Sound Power: < 7.2Bels @ 23±2°C
