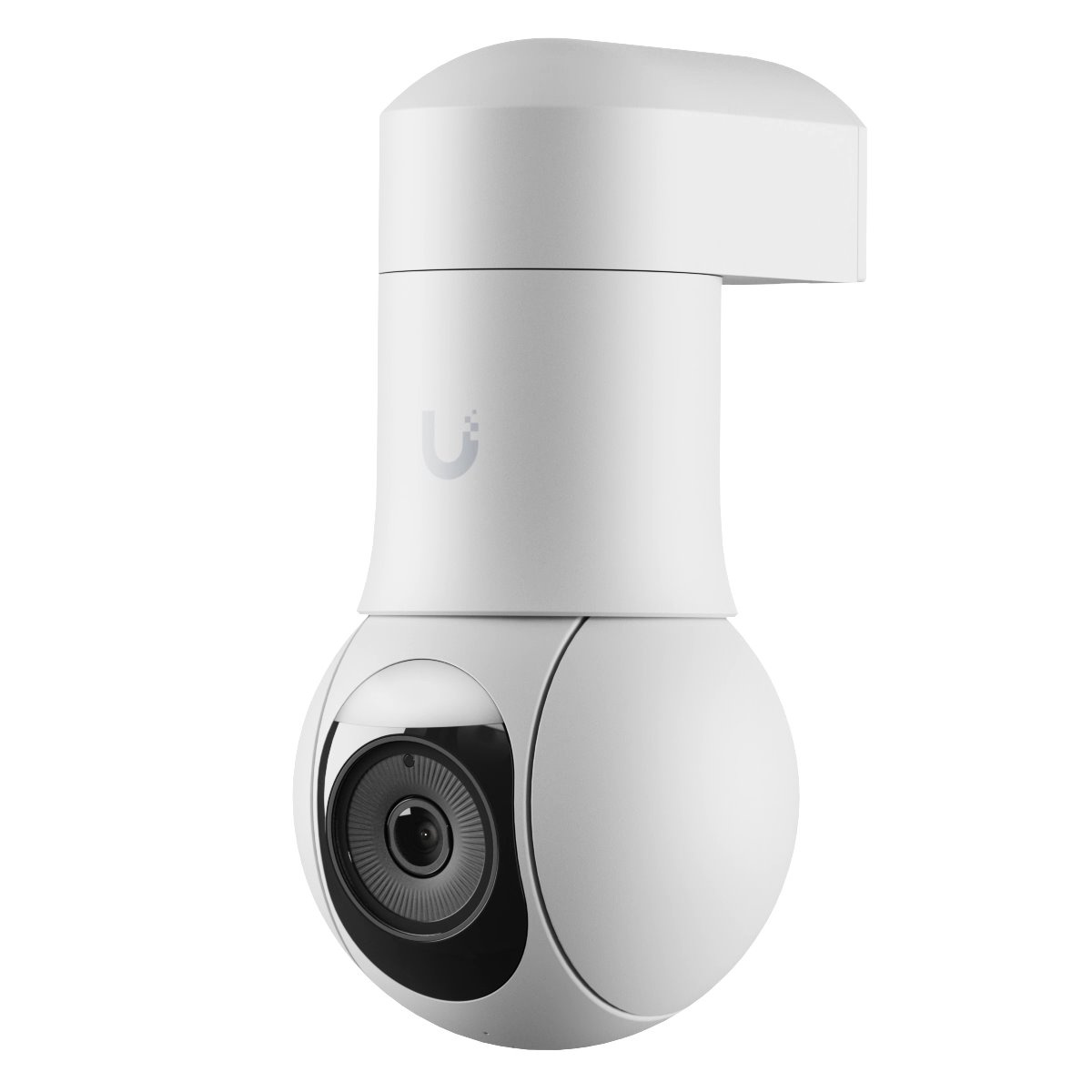

Compact, all-weather camera with ultra-low latency pan-tilt-zoom control and versatile mounting options.

2K (4MP) video resolution


2x optical zoom


20 m (65 ft) IR night vision


AI event detections and automatic person tracking


Record audio with an integrated microphone


Integrated LED spotlight for color night vision


Connect and power using PoE+


Weatherproof (outdoor exposed)

Technical Specifications
Mechanical
Dimensions Without mount: O90 x 152.5 mm (O3.5 x 6")
With mount: 90 x 94 x 179.5 mm (3.5 x 3.7 x 7")
Weight Without mount: 580 g (1.3 lb)
With mount: 650 g (1.4 lb)
Enclosure material Aluminum alloy, polycarbonate
Mount material Wall mount: polycarbonate
Pole mount: aluminum alloy
Pole mount diameter 38–50 mm (1.5–2") on pipe outer diameter
Weatherproofing IP66
Resistance IK04

Optics
Sensor 5MP 1/2.7" CMOS
Lens F 3.42–6.85 mm; f/1.85–f/2.4
View angle 16:9 Wide: H: 99.7°, V: 51.9°, D: 121°
16:9 Tele: H: 45.5°, V: 25.4°, D: 52.4°
Night mode Built-in IR & white LED illumination with IR cut filter
IR distance 20 m (65 ft)
IR limitation Keep distance from top/side ?60 cm (2 ft)

Video
Resolution 4MP 2688 x 1512 (16:9)
Max. frame rate 30 FPS

System
Networking interface 10/100 MbE RJ45 port
Max. power consumption 14W
Power method PoE+
Supported voltage range 37–57V DC
LEDs R/G/B/W: link, activity
Floodlight: 400 lm
Button Factory reset
Mounting Wall, pole mount (Included)
Conduit adapter, surface, in-ceiling, pendant, corner mount (Optional, sold separately)
Ambient operating temperature -30 to 45o C (-22 to 113o F)
Ambient operating humidity 0 to 90% noncondensing
Certifications FCC, IC, CE

Audio
Microphone Yes (Can be disabled)

Software
Web application UniFi Protect
Mobile app UniFi Protect iOS™ and Android™
