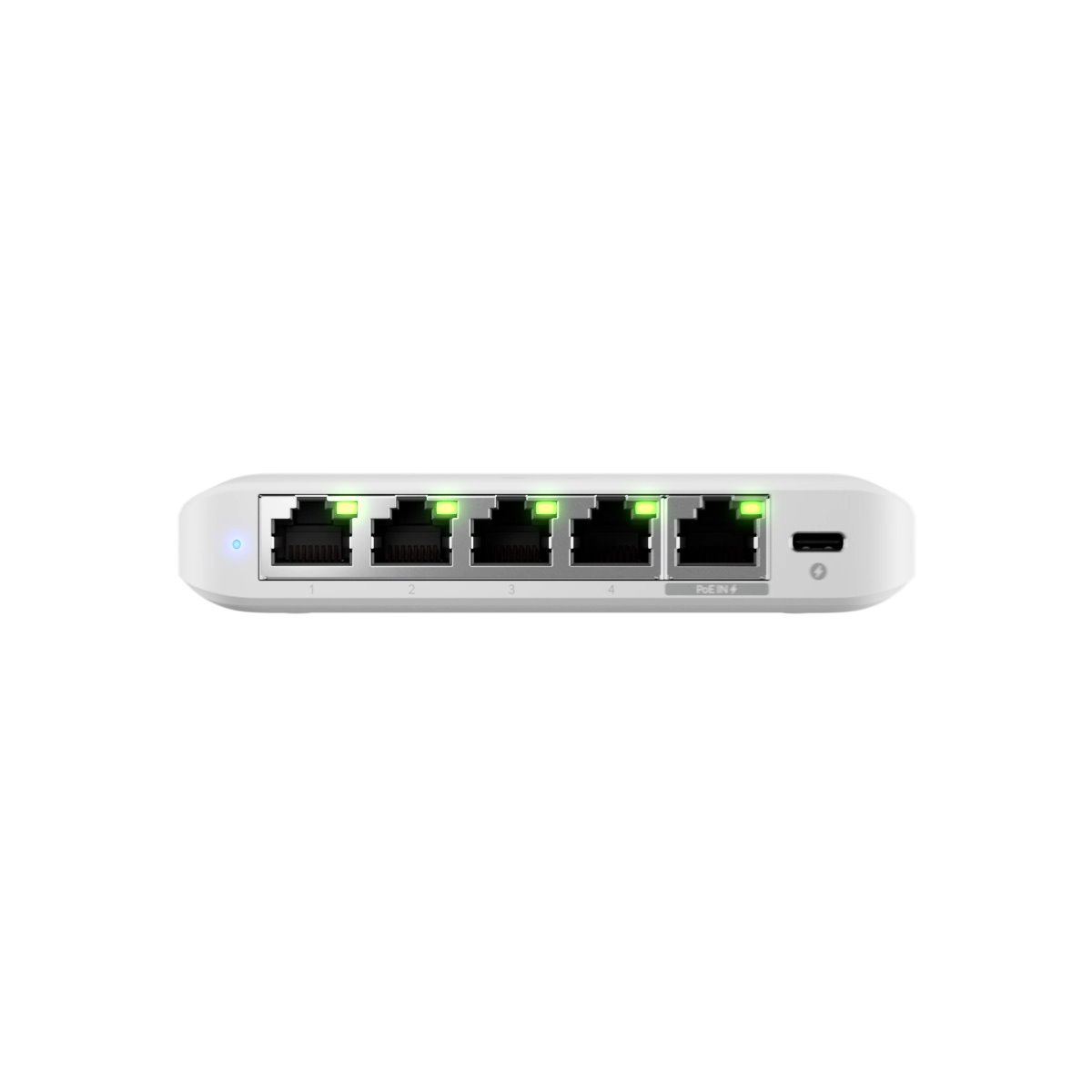

Compact, 5-port 2.5G switch that can be powered with PoE or a USB-C adapter.

(4) 2.5 GbE ports


(1) 2.5 GbE PoE input port for power


Optional powering with included 5V, 1A USB-C adapter

Technical Specifications
Mechanical
Dimensions 117.1 x 90 x 21.2 mm (4.6 x 3.5 x 0.8")
Weight 206 g (7.3 oz)
Enclosure material Polycarbonate

Hardware
Management interface Ethernet In-Band
Networking interface (5) 1/2.5 GbE RJ45 ports
Total non-blocking throughput 12.5 Gbps
Switching capacity 25 Gbps
Forwarding rate 18.6 Mpps
Power method (1) AC power adapter, 5V DC, 1A
(1) PoE (PairA 1, 2+; 3, 6-)(PairB 4, 5+; 7, 8-)
Power supply External AC/DC adapter
UniFi PoE switch
Supported voltage range AC/DC input: 5V DC
PoE input: 44—57V DC
Max. power consumption AC/DC input: 5W
PoE input: 6.4W
Button Factory reset
Ambient operating temperature -20 to 45° C (-4 to 113° F)
Ambient operating humidity 10 to 90% noncondensing
Certifications CE, FCC, IC

Switching Features
Layer 2 features STP / RSTP with priorities and port-level disable
Port isolation
Storm control
Port mirroring
Multicast / broadcast rate limiting
Flow control
Jumbo frames
Egress rate limit
Layer 3 features –

LEDs
System (1) Blue/white: power
Blinking white: bootup in progress
Blinking blue: firmware upgrading
Steady white: factory defaults; unit is awaiting adoption
Steady blue: unit is adopted

Ethernet (5) Green: link/activity

Application Requirements
UniFi Network Version 8.4.62 and later
