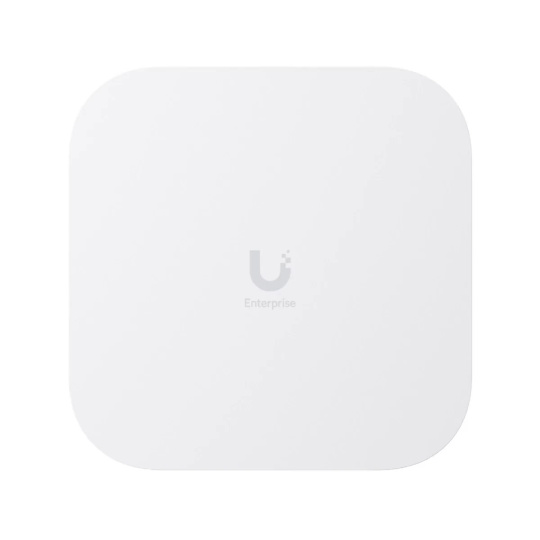

Enterprise-grade indoor access point with 10-stream WiFi 7 performance, a 10 GbE uplink, and a redundant GbE port for high availability.

WiFi 7 with 6 GHz support


10 spatial streams


Real-time spectral analysis for enhanced channel selection


Dedicated spectral analyzer radio


Long-range 6 GHz performance with AFC*


185 m2 (2,000 ft2) coverage


1,000+ connected devices


(1) 10 GbE RJ45 port and (1) GbE RJ45 port for power & data redundancy


Backwards compatible mounting system**


Powered using PoE++

Mechanical
Dimensions 250 x 250 x 43.5 mm (9.8 x 9.8 x 1.7")
Weight 1.8 kg (4 lb)
Enclosure material UV-stabilized polycarbonate, aluminum alloy
Mount material Stainless steel (SUS304), galvanized steel (SGCC)

Hardware
Networking interface (1) 10 GbE RJ45 port
(1) 1 GbE RJ45 port
Management interface Ethernet
Power method PoE++
Power supply UniFi PoE switch
Supported voltage range 42.5—57V DC
Max. power consumption 43W
Max. TX power
2.4 GHz
5 GHz
6 GHz
23 dBm
30 dBm
24 dBm / 30* dBm
*With 6 GHz Extended Range mode. Available in FCC/IC region only.
MIMO
2.4 GHz
5 GHz
6 GHz
2 x 2 (DL/UL MU-MIMO)
4 x 4 (DL/UL MU-MIMO)
4 x 4 (DL/UL MU-MIMO)
Max. data rate
2.4 GHz
5 GHz
6 GHz
688 Mbps (BW40)
8.6 Gbps (BW240)
11.5 Gbps (BW320)
Antenna gain
2.4 GHz
5 GHz
6 GHz
5 dBi
6 dBi
6 dBi
Antenna Internal with omni patterns
LEDs R/G/B
Button Factory reset
Mounting Wall/ceiling (Included)
Ambient operating temperature -30 to 50° C (-22 to 122° F)
Ambient operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC

Software
WiFi standards 802.11a/b/g/n/ac/ax/be (WiFi 6, WiFi 7)
Wireless security WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
BSSID 8 per radio
VLAN 802.1Q
Advanced QoS Per-user rate limiting
Guest traffic isolation Supported
Concurrent clients 1,000+
Ubiquiti specific features Dedicated spectral analyzer radio

Supported Data Rates
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)
802.11ac 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11ax (WiFi 6) 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
802.11be (WiFi 7) 7.3 Mbps to 11.5 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240/320)

Application Requirements
UniFi Network Version 8.6.9 and later
UniFi OS Version 4.0.20 and later
