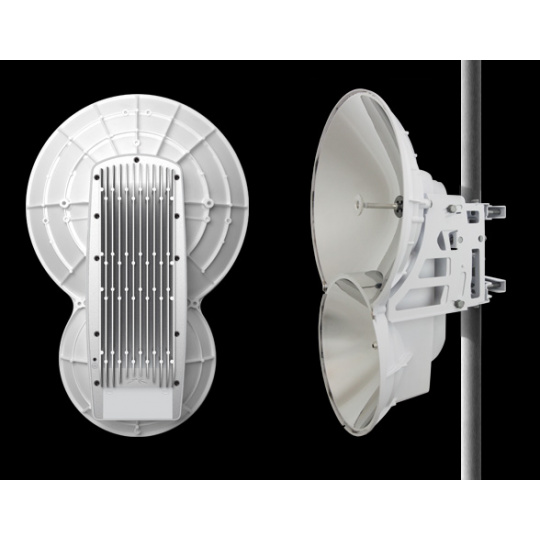

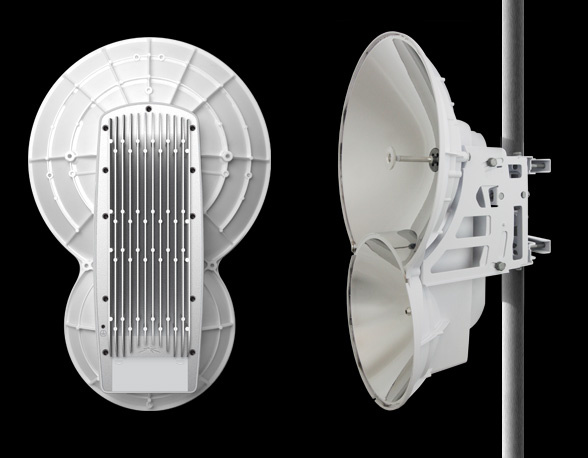

Ubiquiti AIRFIBER - 24GHz Point-to-Point 1.4Gbps
!!! Upozornenie !!!
airFiber je vonkajšia chrbticová jednotka pre voľné pásmo 24GHz určená pre Point-to-Point spoje na vzdialenosť až 13km pri prenosovej rýchlosti až 1,4 Gbps.
Pre realizáciu PtP spoje (bridge) je treba dvoch jednotiek.
airFiber vedľa tradičných TDD (Time Division Duplex) a FDD (Frequency Division Duplex) režimov disponuje tiež inovatívnym HDD (Hybrid Division Duplex) umožňujúcim dosiahnutie doteraz bezkonkurenčných rýchlostí a spektrálne výťažnosti v celosvetovo bezlicenčnom 24GHz pásme.
Podrobné technické specifikace
Operating Frequency: 24.05 – 24.25 GHz
Dimensions: 649 x 426 x 303 mm
Weight: 10.5 kg (Mount Included)
Max. Power Consumption: < 50W
Power Supply: 50V, 1.2A PoE GigE Adapter (Included)
Power Method: Passive Power over Ethernet (42-58VDC)
Certifications: CE, FCC, IC
Installation: Mounting Pole Mount Kit (Included)
Operating Temperature: -40 to 55°C (-40 to 131° F)
8x LED:
Data Port Speed, Data Port Link/Activity
Configuration Port Speed
Configuration Port Link/Activity
GPS Synchronization
Modulation Mode
Master/Slave
RF Status
(1) Two-Digit LED Display Calibrated in dBm
Interface
Data Port (1): 10/100/1000 Ethernet Port
Configuration Port (1): 10/100 Ethernet Port
Auxiliary Port (1): RJ-12, Alignment Tone Port
System
Maximum Throughput: 1.4+ Gbps
Maximum Range: 13+ km
Packets per Second: > 1 Million
Encryption: 128-Bit AES
Forward Error Correction: 164/205
Cyclic Prefix: 1/16 Fixed
Uplink/Downlink Ratio: 50% Fixed
Radio Frequency
GPS: GPS Clock Synchronization
Transceiver
EIRP: ~33 dBm
Frequency Accuracy: ±2.5 ppm without GPS Synchronization
±0.2 ppm with GPS Synchronization
Channel Bandwidth: 100 MHz
Operating Channels: 24.1 GHz, 24.2 GHz
Modulation:
64QAM MIMO
16QAM MIMO
QPSK MIMO
QPSK SISO
Integrated Split Antenna
Gain 33 dBi
Beamwidth < 3.5°
Front-to-Back Ratio 70 dB
Polarity Dual-Slant Polarization
Cross-Polarity Isolation > 28 dB
airFiber je vonkajšia chrbticová jednotka pre voľné pásmo 24GHz určená pre Point-to-Point spoje na vzdialenosť až 13km pri prenosovej rýchlosti až 1,4 Gbps.
Pre realizáciu PtP spoje (bridge) je treba dvoch jednotiek.
airFiber vedľa tradičných TDD (Time Division Duplex) a FDD (Frequency Division Duplex) režimov disponuje tiež inovatívnym HDD (Hybrid Division Duplex) umožňujúcim dosiahnutie doteraz bezkonkurenčných rýchlostí a spektrálne výťažnosti v celosvetovo bezlicenčnom 24GHz pásme.
Podrobné technické specifikace
Operating Frequency: 24.05 – 24.25 GHz
Dimensions: 649 x 426 x 303 mm
Weight: 10.5 kg (Mount Included)
Max. Power Consumption: < 50W
Power Supply: 50V, 1.2A PoE GigE Adapter (Included)
Power Method: Passive Power over Ethernet (42-58VDC)
Certifications: CE, FCC, IC
Installation: Mounting Pole Mount Kit (Included)
Operating Temperature: -40 to 55°C (-40 to 131° F)
8x LED:
Data Port Speed, Data Port Link/Activity
Configuration Port Speed
Configuration Port Link/Activity
GPS Synchronization
Modulation Mode
Master/Slave
RF Status
(1) Two-Digit LED Display Calibrated in dBm
Interface
Data Port (1): 10/100/1000 Ethernet Port
Configuration Port (1): 10/100 Ethernet Port
Auxiliary Port (1): RJ-12, Alignment Tone Port
System
Maximum Throughput: 1.4+ Gbps
Maximum Range: 13+ km
Packets per Second: > 1 Million
Encryption: 128-Bit AES
Forward Error Correction: 164/205
Cyclic Prefix: 1/16 Fixed
Uplink/Downlink Ratio: 50% Fixed
Radio Frequency
GPS: GPS Clock Synchronization
Transceiver
EIRP: ~33 dBm
Frequency Accuracy: ±2.5 ppm without GPS Synchronization
±0.2 ppm with GPS Synchronization
Channel Bandwidth: 100 MHz
Operating Channels: 24.1 GHz, 24.2 GHz
Modulation:
64QAM MIMO
16QAM MIMO
QPSK MIMO
QPSK SISO
Integrated Split Antenna
Gain 33 dBi
Beamwidth < 3.5°
Front-to-Back Ratio 70 dB
Polarity Dual-Slant Polarization
Cross-Polarity Isolation > 28 dB
