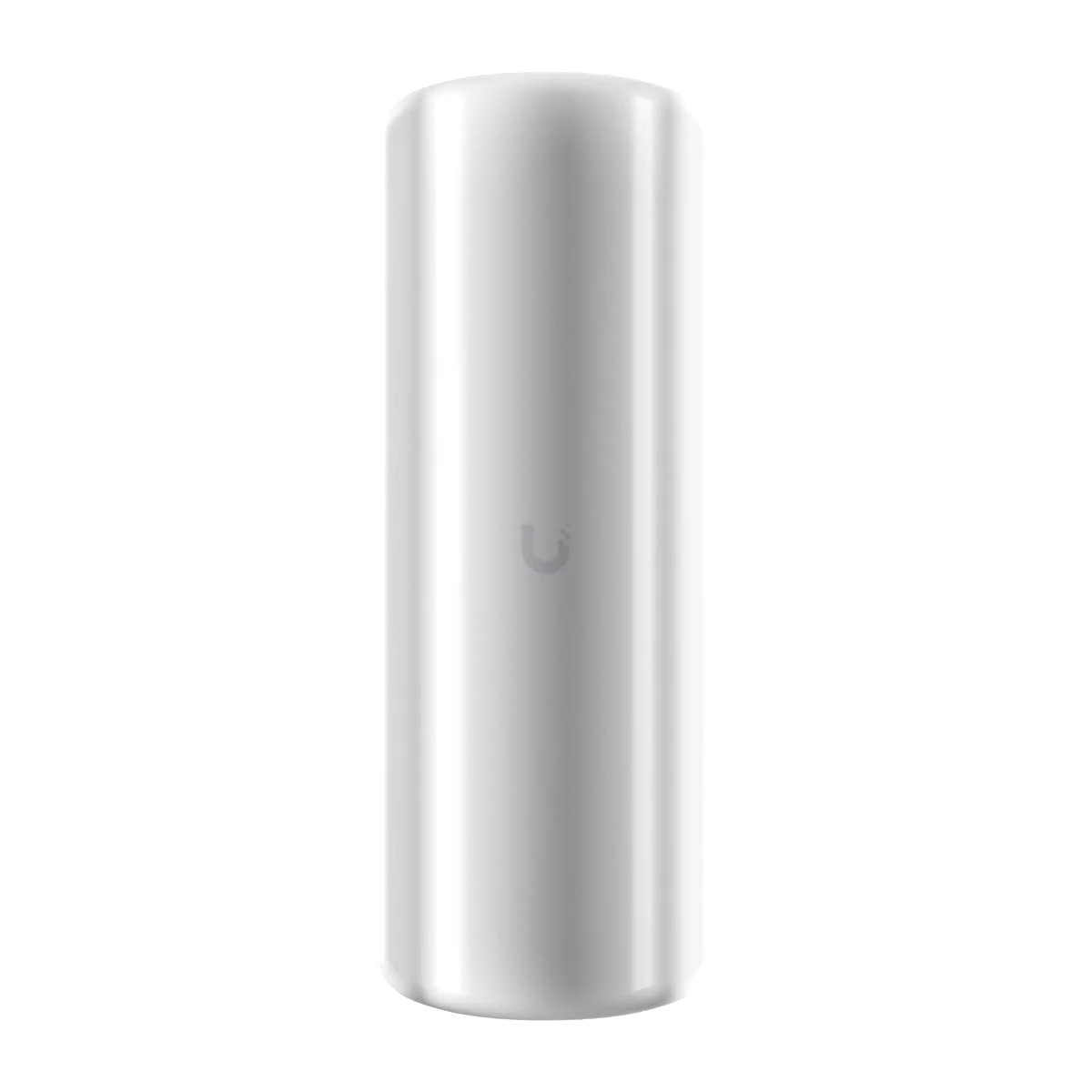

5 GHz point-to-multipoint access point that wirelessly bridges 40+ Device Bridge Pro clients at 5+ km distances.

Enables Point-to-Multi-Point (PtMP connectivity) with 40+ UDB-Pro clients


90° sector coverage


Powered using PoE


Pole mounting


Weatherproof (outdoor exposed)

Technical Specifications
Overview
Dimensions
360.9 x 129.6 x 71.4 mm
(14.2 x 5.1 x 2.8”)
WiFi Standard
WiFi 5
Spatial Streams
2
Coverage Area
5 km (3.1 mi)
Mounting Locations
Pole
Weatherproofing
IPX6
Power Method
PoE
Performance
MIMO
5 GHz
2 x 2
Max. Data Rate
5 GHz
400 Mbps (BW40)
Antenna Gain
5 GHz
17 dBi
Max. TX Power
5 GHz
25 dBm
Max. Conducted TX Power
25 dBm (Combined)
Supported Data Rates
802.11a
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac (WiFi 5)
6.5 Mbps to 400 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40)
Wireless Security
WPA2 AES (Always On)
Hardware
Max. Power Consumption
6W
Supported Voltage Range
42.5—57V DC
Networking Interface
(1) GbE RJ45 port
Antennas
Internal
Management
Ethernet
WiFi
Wind Loading
128.2N at 200 km/h
Weight
Device: 782 g (1.7 lb)
With mount: 835 g (1.8 lb)
Mount Material
UV-stabilized polycarbonate, stainless steel
Enclosure Material
UV-stabilized polycarbonate
Pole Mount Diameter
0.9—2.4" (24—60 mm)
Button
(1) Factory-reset
LEDs
System
Power, Ethernet
Channel Bandwidth
20/40 MHz
Certifications
CE, FCC, IC
NDAA Compliant
Yes
Operating Frequency
US/CA:
U-NII-1 5150 - 5250 MHz
U-NII-2A 5250 - 5350 MHz
U-NII-2C 5470 - 5725 MHz
U-NII-3 5725 - 5850 MHz

Worldwide:
5150 - 5875 MHz
Ambient Operating Temperature
-40 to 60° C (-40 to 140° F)
Ambient Operating Humidity
5 to 95% noncondensing
