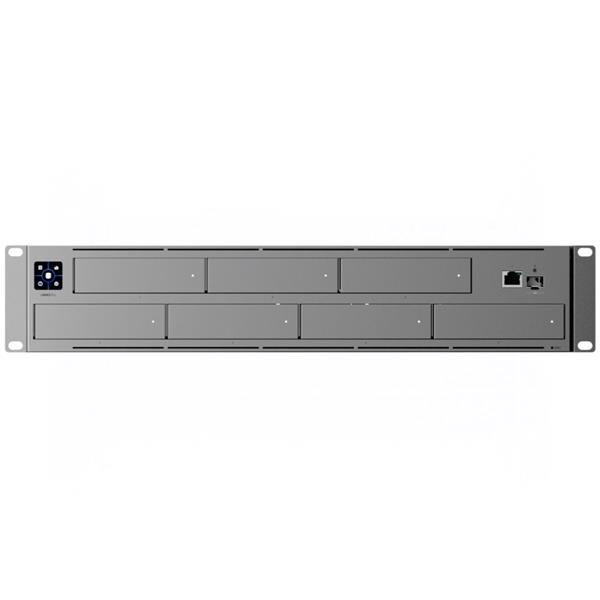

2U rack-mount NAS with (7) 2.5/3.5" drive bays and 10 Gbps performance designed for large-scale file storage and sharing.

(7) 2.5/3.5" HDD / SSD support


(1) 10G SFP+ uplink and (1) GbE RJ45 port


Data protection with RAID storage technology


UniFi Power Backup ready


1.3" touchscreen for management

Technical Specifications
Mechanical
Dimensions 442 x 325 x 87 mm (17.4 x 12.8 x 3.4")
Weight Without mounting brackets: 9.2 kg (20.3 lb)
With mounting brackets: 9.5 kg (20.8 lb)
Enclosure material SGCC steel
Mount material SGCC steel

Hardware
Processor Quad-Core ARM® Cortex®-A57 at 1.7 GHz
System memory 8 GB
Management interface Ethernet In-Band
Networking interface (1) GbE RJ45 port
(1) 1/10 GbE SFP+ port
RF interface Bluetooth 4.1
Power method (1) Universal AC input, 100—240V AC, 3A Max., 50/60 Hz
(1) USP-RPS DC input, 11.5V DC, 13.91A
Power supply AC/DC, internal, 200W
Supported voltage range 100—240V AC
Max. power consumption 160W
Max. power budget for Drives 135W
ESD/EMP protection Air: ± 12kV, contact: ± 8kV
LCM Display (1) 1.3" touchscreen
Ambient operating temperature -5 to 40° C (23 to 104° F)
Ambient operating humidity 5 to 95% noncondensing
Certifications FCC, CE, IC

LEDs
Ethernet Green: 1 Gbps
Amber: 10/100 Mbps
SFP+ White: 10 Gbps
Green: 1 Gbps
HDD White: disk detected
Amber: disk error
RPS Blue: ready

Application Requirements
UniFi Drive Version 1.16.0 and later
