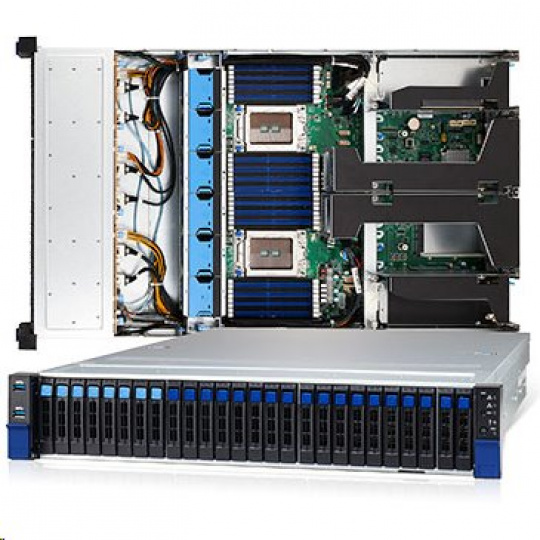

TYAN TS75AB8252 (B8252T75AV18E8HR-2T) Specifications System Form Factor 2U Rackmount Chassis Model TS75A Dimension (D x W x H) 29.53" x 17.24" x 3.45" (750 x 438 x 87.6mm) Motherboard Name S8252GM2NE-2T Motherboard Notification # The motherboard not sold separately Gross Weight 30 kg (66 lbs) Net weight 19 kg (42 lbs) Front Panel Buttons (1) RST / (1) ID / (1) PWR w/ LED LEDs (1) HDD / (2) LAN / (1) ID / (1) BMC event I/O Ports (2) USB 3.1 Gen1 ports External Drive Bay Q'ty / Type (18) 2.5" Hot-swap SSD/HDD + (8) NVMe HDD Backplane Support SAS 12Gb/s /SATA 6Gb/s /NVMe Supported HDD Interface (18) SATA 6Gb/s + (8) NVMe Notification The SAS/SATA HDD backplane is connected to onboard SATA connection by default. Please contact Tyan technical support if a discrete SAS HBA/RAID adapter is required. System Cooling Configuration FAN (6) 6cm fans Power Supply Type CRPS Input Range AC 100-127V/12A / AC 200-240V/9.48A Frequency 50-60 Hz Output Watts 1,600 Watts Efficiency 80 plus Platinum Redundancy 1+1 Processor Q'ty / Socket Type (2) AMD Socket SP3 Supported CPU Series (2) AMD EPYC™ 7002 Series Processors Configurable Thermal Design Power (cTDP) Wattage Max up to 240W Memory Supported DIMM Qty (16)+(16) DIMM slots DIMM Type / Speed DDR4 ECC RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS 3200 Capacity Up to 4,096GB RDIMM/LRDIMM Memory channel 8 Channels per CPU Memory voltage 1.2V Expansion Slots PCI-E (2) PCI-E Gen4 x16 slots (FH / 10.5"L) / (1) PCI-E Gen4 x8 slot (FH / HL) / (2) PCI-E Gen4 x16 (HH, HL) slots Pre-install TYAN Riser Card (PCI-E Gen4) (1) M8252T75-L24-1F riser card for (1) FH/10.5”L PCI-E Gen4 x16 slot (left) / (1) M8252T75-R24-2F riser card for (1) FH/10.5”L PCI-E Gen4 x16 + (1) FH/HL PCI-E Gen4 x8 slots (right) / (1) M8252T75-L16-1L riser card for (1) HH/HL PCI-E Gen4 x16 slot (left) / (1) M8252T75-R16-1L riser card for (1) HH/HL PCI-E Gen4 x16 slot (right) Others (1) PCI-E Gen4 x16 OCP 3.0 slot Physical Dimensions FH/FL (Full-height / Full-length): 4.4" x 12.3" (111.2 x 312mm) HH/ HL (Half-height / Half-length): 2.7" x 6.6" (68.9 x 167.7mm) FH/10.5”L (Full-height / 10.5” in length ): 4.4" x 10.5" (111.2 x 266.7mm) LAN Q'ty / Port (2) 10GbE ports, (1) GbE port dedicated for IPMI Controller Intel X550-AT2 PHY Realtek RTL8211E Storage SATA Connector (2) SFF-8654 connectors for up to (16) SATA ports Controller Direct from AMD EPYC CPU Speed 6Gb/s RAID N/A Additional SATA Connector (2) SATA Controller Marvell 9235 Speed 6Gb/s RAID N/A NVMe Connector (U.2) (4) SFF-8654 connectors for (8) front NVMe Connector (M.2) (2) 22110/2280 (by PCI-E Gen3 interface) Graphic Connector type D-Sub 15-pin Resolution Up to 1920x1200 Chipset Aspeed AST2500 I/O Ports USB (2) USB3.1 Gen1 ports (@ front) / (2) USB3.1 Gen1 ports (@ rear) COM (2) headers (COM1, COM2) VGA (1) D-Sub 15-pin port RJ-45 (2) 10GbE ports, (1) GbE dedicated for IPMI System Monitoring Chipset Aspeed AST2500 Temperature Monitors temperature for CPU & memory & system environment Voltage Monitors voltage for CPU, memory, chipset & power supply LED Over temperature warning indicator / Fan & PSU fail LED indicator Others Watchdog timer support Server Management Onboard Chipset Onboard Aspeed AST2500 AST2500 iKVM Feature 24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub AST2500 IPMI Feature IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface BIOS Brand / ROM size AMI / 32MB Feature Hardware Monitor / SMBIOS 3.0/PnP/Wake on LAN / Boot from USB device/PXE via LAN/Storage / Console Redirection / ACPI sleeping states S0,S1,S5 / FAN speed control automatic / ACPI 6.0 Operating System OS supported list Please refer to our AVL support lists. Regulation FCC (DoC) Class A CE (DoC) Class A CB/LVD Yes C-Tick Class A VCCI Class A Operating Environment Operating Temp. 10° C ~ 35° C (50° F~ 95° F) Non-operating Temp. - 40° C ~ 70° C (-40° F ~ 158° F) In/Non-operating Humidity 90%, non-condensing at 35° C RoHS RoHS 6/6 Compliant Yes Package Contains Barebone (1) TS75A-B8252 Barebone Manual (1) Quick Installation Guide
