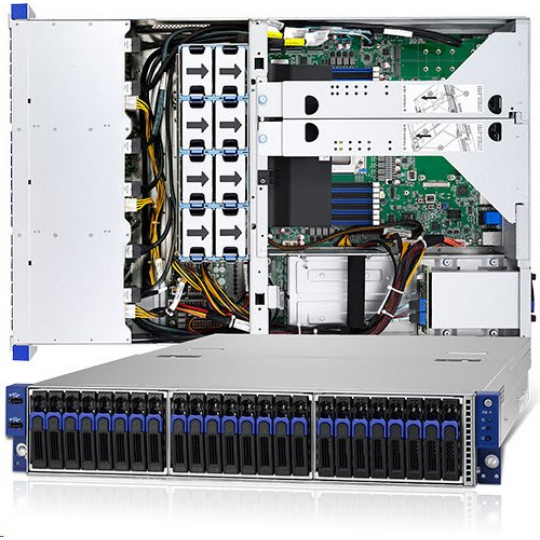

2U1S 26 SATA Storage Server 18 2.5" SATA + 8 2.5" drive bays (for HBA/RAID) PCIe x16 OCP v2.0 LAN mezzanine slot (Type 1) 4 FH/FL + 1 HH/HL PCIe x8 slots 2 NVMe/SATA M.2 ports for boot drives SAS support with 3rdparty SAS HBA/RAID Tyan Transport SX TN70AB8026 (B8026T70AV26HR-LE) Specifications System Form Factor 2U Rackmount Chassis Model TN70A Dimension (D x W x H) 27.56" x 17.72" x 3.43" (700 x 450 x 87mm) Motherboard Name S8026GM2NR-LE Gross Weight 30 kg (66 lbs) Net weight 19 kg (42 lbs) Front Panel Buttons (1) RST / (1) ID / (1) PWR w/ LED LEDs (1) ID / (1) Warning I/O Ports (2) USB 2.0 ports External Drive Bay Q'ty / Type (24) 2.5" Hot-Swap SSD/HDD (@ front) + (2) 2.5" Hot-Swap SSD/HDD (@ rear) HDD Backplane Support SAS 12Gb/s /SATA 6Gb/s Supported HDD Interface (26) SATA 6Gb/s Notification The SAS/SATA HDD backplane is connected to onboard SATA connection by default. Please contact Tyan technical support if a discrete SAS HBA/RAID adapter is required. System Cooling Configuration FAN (8) 6cm fans Power Supply Type RPSU Input Range AC 100-127V/10A / AC 200-240V/5A Frequency 50-60 Hz Output Watts 770 Watts Efficiency 80 plus Platinum Redundancy 1+1 Processor Q'ty / Socket Type (1) AMD Socket SP3 Supported CPU Series (1) AMD EPYC™ 7001/7002 Series Processor Thermal Design Power (TDP) Wattage Max up to 180W Memory Supported DIMM Qty (16) DIMM slots DIMM Type / Speed DDR4 ECC RDIMM/LRDIMM 2666/2400 Capacity Up to 1,024GB RDIMM/LRDIMM Memory channel 8 Channels per CPU Memory voltage 1.2V Notification LRDIMM is not supported when AMD EPYC™ 7002 Series Processors deployed in all configurations. Please contact Tyan Technical Support for more details. Expansion Slots PCI-E (2) PCI-E Gen3 x16 slots (FH / FL / SW) or (4) PCI-E Gen3 x8 slots (FH / FL) * split by Mux. / (1) PCI-E Gen3 x8 slot (HH / HL w/ tall bracket) Pre-install TYAN Riser Card (PCI-E Gen3) (1) M7106-L24-3F riser card for (1) PCI-E Gen3 x16 + (2) PCI-E Gen3 x8 slots (right) / (1) M7106-R24-3F riser card for (1) PCI-E Gen3 x16 + (2) PCI-E Gen3 x8 slots (right) Others (1) PCI-E Gen3 x16 OCP 2.0 slot (conn.A+conn.B) / *Without using OCP 2.0 Mezz. card, please contact with Tyan technical support for details. Physical Dimensions FH/FL (Full-height / Full-length): 4.4" x 12.3" (111.2 x 312mm) HH/ HL (Half-height / Half-length): 2.7" x 6.6" (68.9 x 167.7mm) FH/10.5”L (Full-height / 10.5” in length ): 4.4" x 10.5" (111.2 x 266.7mm) LAN Q'ty / Port (2) GbE ports, (1) GbE dedicated for IPMI Controller Broadcom BCM5720 PHY Realtek RTL8211E Storage SATA Connector (2) SATA / (2) SFF-8612 for (16) SATA ports Controller Direct from AMD EPYC CPU Speed 6Gb/s RAID N/A Notification The rear 2 SATA SSDs/HDDs are not available when AMD EPYC™ 7002 Series Processors deployed in all configurations. Please contact Tyan Technical Support for more details. NVMe Connector (M.2) (2) 22110/2280/2260/2242 (by PCI-E & SATA interface) Notification 2 onboard M.2 connectors shall support NVMe only when AMD EPYC™ 7002 Series Processors deployed in all configurations. Please contact Tyan Technical Support for more details. Graphic Connector type D-Sub 15-pin Resolution Up to 1920x1200 Chipset Aspeed AST2500 I/O Ports USB (3) USB3.0 ports (2 @ rear, 1 TYPE-A) / (2) USB2.0 ports (2 @ front) COM (1) DB-9 port (COM1) + (1) header (COM2) VGA (1) D-Sub 15-pin port RJ-45 (2) GbE ports, (1) dedicated GbE for IPMI TPM (Optional) TPM Support Please refer to our TPM supported list. System Monitoring Chipset Aspeed AST2500 Temperature Monitors temperature for CPU & memory & system environment Voltage Monitors voltage for CPU, memory, chipset & power supply LED Over temperature warning indicator / Fan & PSU fail LED indicator Others Watchdog timer support Server Management Onboard Chipset Onboard Aspeed AST2500 AST2500 iKVM Feature 24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub AST2500 IPMI Feature IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface BIOS Brand / ROM size AMI / 32MB Feature Hardware Monitor / Boot from USB device/PXE via LAN/Storage / User Configurable FAN PWM Duty Cycle / Console Redirection / ACPI 6.1 / SMBIOS 3.1/PnP/Wake on LAN / ACPI sleeping states S5 Operating System OS supported list Please refer to our AVL support lists. Regulation FCC (DoC) Class A CE (DoC) Class A CB/LVD Yes C-Tick Class A VCCI Class A Operating Environment Operating Temp. 10° C ~ 35° C (50° F~ 95° F) Non-operating Temp. - 40° C ~ 70° C (-40° F ~ 158° F) In/Non-operating Humidity 90%, non-condensing at 35° C RoHS RoHS 6/6 Compliant Yes Package Contains Barebone (1) TN70A-B8026 Barebone Manual (1) Quick Installation Guide Installation CD (1) TYAN Device Driver CD
