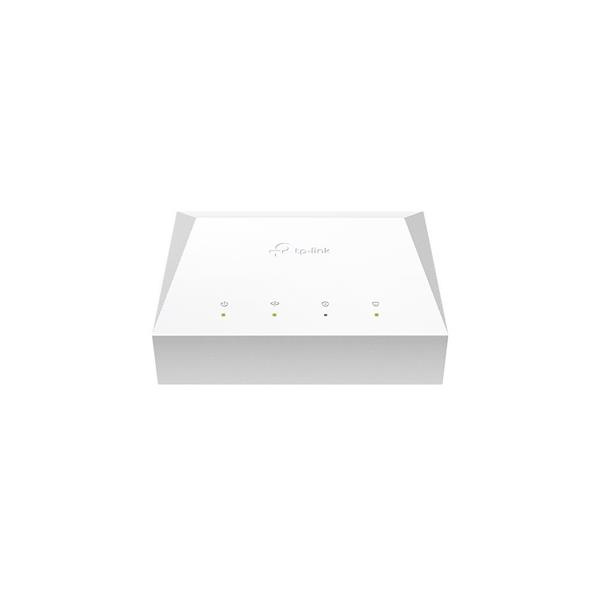

XZ005-G6
1portový terminál XPON 2,5GE LAN
Vysokorýchlostný prístup GPON: Umožňuje viacgigové pripojenie k internetu rýchlosťou až 2,5 Gb/s smerom dole a 1,25 Gb/s smerom hore.*
Podpora XPON: EPON: duálny režim EPON + GPON ponúka väčšiu flexibilitu pre prístup k internetu prostredníctvom optických vlákien.
Káblové pripojenia 2,5G: 1× port 2,5 GbE LAN umožňuje rýchle zdieľanie siete a spoľahlivé pripojenie.*
Jednoduché používanie: Rýchla a bezproblémová inštalácia s inteligentnou úsporou energie.
Vzdialená správa: Podporuje protokol OMCI (ONU Management Control Interface) pre centralizovanú konfiguráciu a správu.

HARDWARE FEATURES
Interface 1× PON Port
1× 2.5 Gigabit RJ45 LAN Port
Button 1× Power On/Off Button
1× Reset Button
External Power Supply 9VDC/0.6A
IEEE Standards IEEE 802.3, 802.3u, 802.1p, 802.1Q
Data Rates Downstream Speeds: 2.488 Gbps (GPON), 1.25 Gbps (EPON)*
Upstream Speeds: 1.244 Gbps (GPON), 1.25 Gbps (EPON)*
Wavelength Upstream: 1310 nm
Downstream: 1490 nm
Dimensions ( W x D x H ) 3.7 × 3.0 × 1.2 in (95.0 × 75.0 × 29.3 mm)
Distance 0–20 Km Max
GPON Standards ITU-T G.988, G.984.1, G.984.2, G.984.3, G.984.4
Optical Module Class B+
Receiver Super-TIA
Transmitter DFB Laser
SOFTWARE FEATURES
Advanced Features Upstream and Downstream FEC
Dynamic Bandwidth Allocation(DBA) support NSR/SR
Up to 16 T-CONTs and 256 GEM Ports
Optical power detection
Dying Gasp
Terminal Silent mechanism
VLAN 802.1Q tag VLAN, VLAN transparent mode/VLAN translation mode/VLAN trunk mode, Authentication based on SN and Password, VLAN Auto Detect
Security AES Encryption, Packet Filter based on VLAN
Management Local management: WebGUI, Telnet
Remote management: OMCI
IGMP IGMP v1/v2/v3
OTHERS
Package Contents 1-Port 2.5GE LAN XPON Terminal XZ005-G6
Power Adapter
Quick Installation Guide
Requirements Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
Subscription with an internet service provider (for internet access)
Certifications CE, RoHS
Environment Operating Temperature: 0?–40? (32?–104?)
Storage Temperature: -40?–60? (-40?–140?)
Operating Humidity: 10%–90% non-condensing
Storage Humidity: 5%–90% non-condensing
