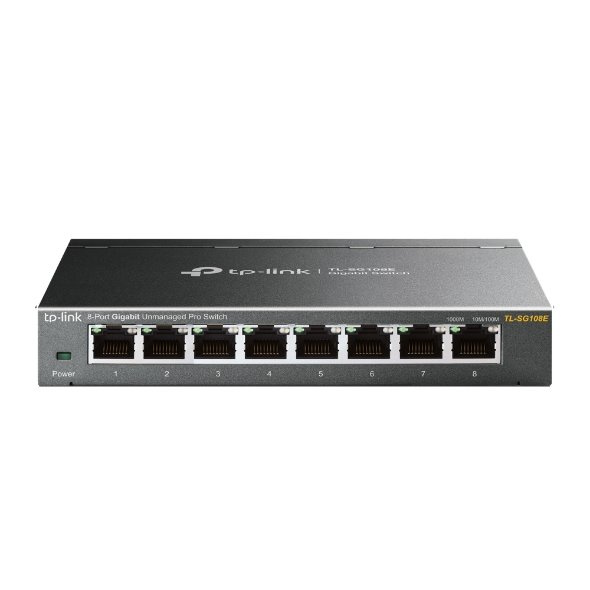

8portový gigabitový switch Easy Smart TL-SG108E 8 portů 10/100/1 000 Mbit/s RJ45 Poskytuje monitorování sítě, prioritizaci přenosů a funkce VLAN Inovativní technologie úspory energie ušetří až 80% spotřeby Jednoduché nastavení sítě a připojení plug-and-play S nástrojem jednoduché chytré konfigurace můžete centrálně spravovat všechny jednoduché chytré switche Easy Smart HARDWARE FEATURES Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p Interface 8 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100? STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100? STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100 STP (maximum 100m) Fan Quantity Fanless Power Supply External Power Adapter(Output: 9VDC/0.6A) Power Consumption Maximum: 4.48W (220V/50Hz) Dimensions ( W x D x H ) 6.2*4.0*1.0 in. (158*101*25 mm) Max Power Consumption 3.55W(220V/50Hz) Max Heat Dissipation 12.12BTU/h PERFORMANCE Switching Capacity 16Gbps Packet Forwarding Rate 11.9Mpps MAC Address Table 4K Packet Buffer Memory 1.5Mb Jumbo Frame 15KB SOFTWARE FEATURES Quality of Service Support Port-based/802.1p/DSCP priority Support 4 priority queues Rate Limit Storm Control L2 Features IGMP Snooping V1/V2/V3 Link Aggregation Port Mirroring Cable Diagnostics Loop Prevention VLAN Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs) MTU/Port/Tag VLAN Transmission Method Store-And-Forward OTHERS Certification FCC, CE, RoHS Package Contents TL-SG108E Power Cord Installation Guide Resource CD Rubber Feet System Requirements Microsoft® Windows® for running Utility Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
