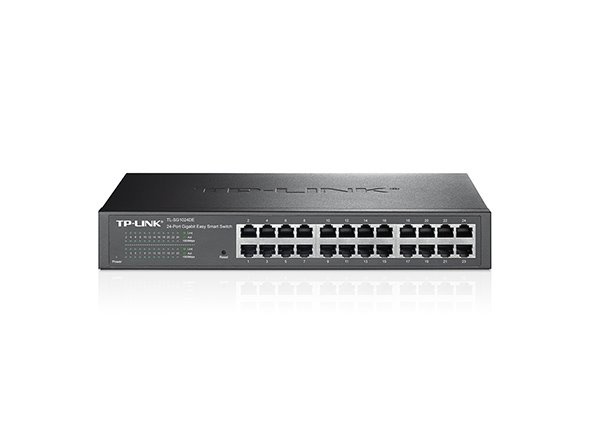

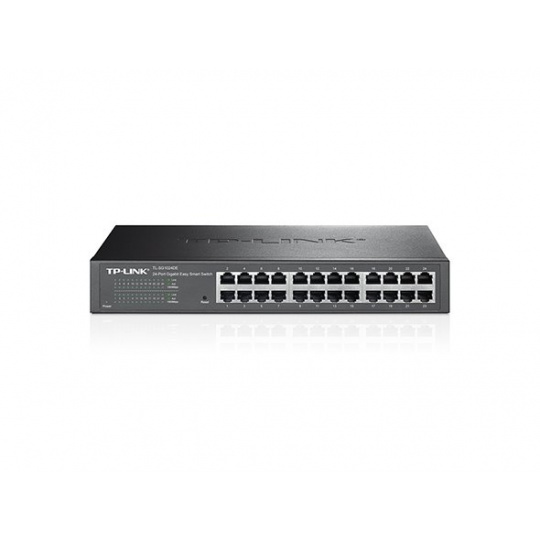

24portový gigabitový switch Easy Smart TL-SG1024DE 24 portů 10/100/1 000 Mbit/s RJ45 Poskytuje monitorování sítě, prioritizaci přenosů a funkce VLAN Inovativní technologie úspory energie ušetří až 40 % spotřeby Jednoduché nastavení sítě a připojení plug-and-play Centralizovaná správa všech Easy Smart switchů s Easy Smart Configuration Utility HARDWARE FEATURES Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p Interface 24 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100 STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100? STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100 STP (maximum 100m) Fan Quantity Fanless Power Supply 100-240VAC, 50/60Hz Power Consumption Maximum: 14.86W (220V/50Hz) Dimensions ( W x D x H ) 11.6*7.1*1.7 in. (294*180*44 mm) Mounting Rack Mountable Max Power Consumption 33.52W (220V/50Hz) Max Heat Dissipation 114.37 BTU/h PERFORMANCE Switching Capacity 48Gbps Packet Forwarding Rate 35.7Mpps MAC Address Table 8K Packet Buffer Memory 512KB Jumbo Frame 9KB SOFTWARE FEATURES Quality of Service Support Port-based/802.1p/DSCP priority Support 4 priority queues Rate Limit Storm Control L2 Features IGMP Snooping V1/V2/V3 Link Aggregation Port Mirroring Cable Diagnostics Loop Prevention VLAN Supports up to 128 VLANs simultaneously (out of 4K VLAN IDs) MTU/Port/Tag VLAN Transmission Method Store-And-Forward OTHERS Certification FCC, CE, RoHS Package Contents TL-SG1024DE, Power Cord, Installation Guide, Resource CD, Rackmount Kit, Rubber Feet System Requirements Microsoft® Windows® for running Utility Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
