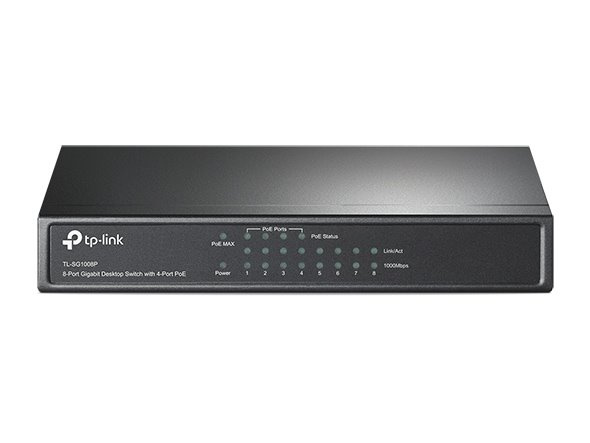

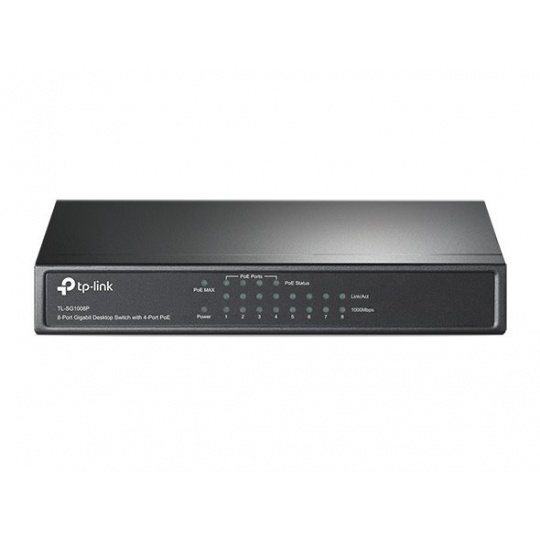

8portový gigabitový stolní switch s 4 porty PoE TL-SG1008P 8 portů 10/100/1 000 Mbit/s RJ45 Se čtveřicí portů PoE probíhá přenos dat a napájení v jednom kabelu. Spolupracuje se zařízeními standardu IEEE 802.3af a rozšiřuje domácí nebo firemní síť. Nevyžaduje žádnou instalaci ani konfiguraci. 802.1p/DSCP QoS umožňuje plynulou komunikaci Podporuje PoE power až 15.4W pro každý PoE port Podporuje PoE power až 55W pro všechny PoE porty HARDWARE FEATURES Interface 8 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100 STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100 STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100 STP (maximum 100m) Fan Quantity Fanless Power Consumption 65.2W (max. with 55w PoE device connected) 5.5W (max. no PoE device connected) External Power Supply External Power Adapter(Output: 48VDC / 1.25A) PoE Ports (RJ45) Standard: 802.3 af compliant PoE Ports: Port1- Port4 Power Supply: 55W Backbound Bandwidth 16Gbps Mac Address Table 4K Dimensions ( W x D x H ) 6.7*3.9*1.1 in. (171*98*27 mm) Max Power Consumption 5.49W(220/50Hz. no PD connected) 65.24W(220/50Hz. with 55W PD connected) Max Heat Dissipation 18.73BTU/h(no PD connected) 222.60BTU/h(with 55W PD connected) SOFTWARE FEATURES Transmission Method Store-And-Forward Advanced Functions Compatible With IEEE 802.3af Compliant PDs Priority Function Mac Address Auto-Learning And Auto-Aging EEE802.3x Flow Control 802.1p/DSCP QoS OTHERS Certification CE, FCC, RoHS Package Contents TL-SG1008P, Power Adapter, Installation Guide Consumption 65.2W (max. with 55w PoE device connected) 5.5W (max. no PoE device connected) Environment Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5%~90% non-condensing
