TP-LINK "Omada Multi-Gigabit VPN RouterPORT: 1× 2.5G RJ45 WAN Port, 1× 2.5G RJ45 WAN/LAN Port, 1× Gigabit SFP WAN/LAN P
Popis a parametre
TP-LINK "Omada Multi-Gigabit VPN RouterPORT: 1× 2.5G RJ45 WAN Port, 1× 2.5G RJ45 WAN/LAN Port, 1× Gigabit SFP WAN/LAN P

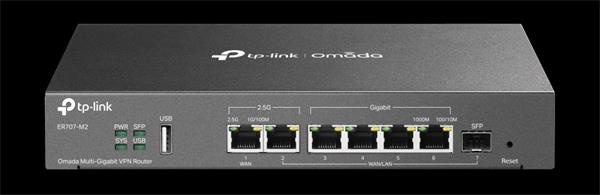

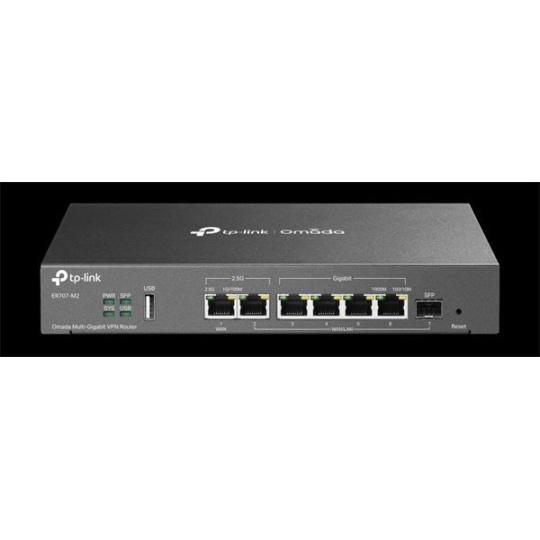

ER707-M2
Multigigabitový VPN router Omada
Dva 2,5 G porty: 1 port 2,5 G WAN a 1 port 2,5 G WAN/LAN ponúka možnosť agregácie širokopásmových pripojení.
Až 6 WAN portov: 2,5 G RJ45, gigabitové optické a gigabitové RJ45 WAN porty s funkciou vyrovnávania zaťaženia zvyšujú mieru využitia viaclinkového širokopásmového pripojenia.
VPN s vysokým zabezpečením: Protokoly SSL / IPsec / GER§ / PPTP / L2TP VPN a OpenVPN sú vhodné pre použitie v podnikovom prostredí naprieč niekoľkými pobočkami a pre prácu z domova.
Integrované do platformy Omada SDN: Podporuje funkciu Zero-Touch Provisioning (ZTP)**, centralizovanú cloudovú správu, inteligentné monitorovanie a ďalšie funkcie.
Centralizovaná správa: Cloudový prístup a aplikácia Omada umožňujú maximálne pohodlnú správu.
Bohaté funkcie zabezpečenia: Chráňte svoju sieť a dáta pomocou pokročilých zásad firewallu, ochrany pred útokmi DoS, filtrovania adries IP/MAC/URL a ďalších bezpečnostných funkcií.
HARDWARE FEATURES
Standards and Protocols • IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q
• TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP
Interface • 1× 2.5G RJ45 WAN Port
• 1× 2.5G RJ45 WAN/LAN Port
• 1× Gigabit SFP WAN/LAN Port
• 4× Gigabit RJ45 WAN/LAN Ports
• 1× USB 2.0 Port (Supports USB storage, and LTE backup with LTE dongle)
Network Media • 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m)
• 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m)
• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
• 2500BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
Fan Quantity Fanless
Button Reset Button
Power Supply 12V/1.5A Adapter
PoE Budget -
Flash 128MB NAND
DRAM 1 GB DDR4
LED PWR, SYS, SFP, USB, WAN (Speed, Link/Act), LAN (Speed, Link/Act)
Dimensions ( W x D x H ) 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm)
Protection 4 kV surge protection
Enclosure Steel
Mounting Desktop/Wall Mounting
Max Power Consumption 14.2 W (with USB2.0 connected)
7.1 W (without USB2.0 connected)
PERFORMANCE
Concurrent Session 500,000
New Sessions /Second 6,000
NAT (Static IP) 2365.17 Mbps / 2364.45 Mbps
NAT(DHCP) 2364.45 Mbps / 2366.04 Mbps
NAT(PPPoE) 2347.14 Mbps / 2348.29 Mbps
NAT (L2TP) 1308.86 Mbps / 974.10 Mbps
NAT (PPTP) 1236.27 Mbps / 1280.99 Mbps
IPsec VPN Throughput • ESP-SHA1-AES256: 673.3 Mbps
• ESP-SHA256-AES256: 650.2 Mbps
• ESP-SHA384-AES256: 629.3 Mbps
• ESP-SHA512-AES256: 633.8 Mbps
L2TP VPN Throughput • Unencrypted: 1243.7 Mbps
• Encrypted: 561.0 Mbps
SSL VPN Throughput 132.24 Mbps
66 Byte Packet forwarding rate 1832.69 Mbps / 1741.84 Mbps
1,518 Byte Packet forwarding rate 2461.18 Mbps / 2457.32 Mbps
BASIC FUNCTIONS
WAN Connection Type • IPv4_Static IP
• IPv4_Dynamic IP
• IPv4_PPPOE
• IPv4_L2TP
• IPv4_PPTP
• IPv6_PPP
• IPv6_DHCPv6
• IPv6_Static IP
• IPv6_6in4
• IPv6_Pass-Through
• Mobile Broadband: 4G/3G modem for backup via USB port
MAC Clone Modify WAN/LAN MAC Address†
DHCP • DHCP Server
• DHCPv6 PD Server (only in Standalone Mode)
• DHCP Options Customization
• DHCP Address Reservation
• Multi-IP Interfaces*
• Multi-Net DHCP*
IPv6 StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode
VLAN 802.1Q VLAN
IPTV IGMP v2/v3 Proxy, Custom Mode, Bridge Mode
ADVANCED FUNCTIONS
Advanced Routing • Static Routing
• Policy Routing
• RIP (only in Standalone Mode)
• OSPF (only in Standalone Mode)
Bandwidth Control • IP/Port-based Bandwidth Control
• Guarantee & Limited Bandwidth
Load Balance • Intelligent Load Balance
• Application Optimized Routing
• Link Backup (Timing§, Failover)
• Online Detection
NAT • One-to-One NAT§
• Multi-Net NAT
• Virtual Server
• Port Triggering§
• NAT-DMZ
• FTP/H.323/SIP/IPSec/PPTP ALG
• UPnP
Session Limit IP-based Session Limit
VPN
IPsec VPN • 100 IPSec VPN Tunnels
• LAN-to-LAN, Client-to-LAN
• Main, Aggressive Negotiation Mode
• DES, 3DES, SHA1, AES128, AES192, AES256 Encryption Algorithm
• IKEv1/v2
• MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm
• NAT Traversal (NAT-T)
• Dead Peer Detection (DPD)
• Perfect Forward Secrecy (PFS)
PPTP VPN • PPTP VPN Server
• PPTP VPN Clients (12)
• 60 Tunnels (Shared with L2TP)
• PPTP with MPPE Encryption
L2TP VPN • L2TP VPN Server
• L2TP VPN Clients (12)
• 60 Tunnels (Shared with PPTP)
• L2TP over IPSec
OpenVPN • OpenVPN Server
• OpenVPN Clients (6)
• 66 OpenVPN Tunnels*
SECURITY
Filtering • WEB Group Filtering§
• URL Filtering
• Web Security§
ARP Inspection • Sending GARP Packets§
• ARP Scanning§
• IP-MAC Binding§
Attack Defense • TCP/UDP/ICMP Flood Defense
• Block TCP Scan (Stealth FIN/Xmas/Null)
• Block Ping from WAN
Access Control Source/Destination IP Based Access Control
AUTHENTICATION
Web Authentication • No Authentication
• Simple Password*
• Hotspot (Local User/Voucher* /SMS*/Radius*)
• External Radius Server
• External Portal Server*
• LDAP
MANAGEMENT
Omada App Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management • Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
Cloud Access Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Service Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe)
Maintenance • Web Management Interface
• Remote Management
• Export & Import Configuration
• SNMP v1/v2c/v3*
• Diagnostics (Ping & Traceroute)§
• NTP Synchronize§
• Port Mirroring
• CLI (only in Standalone Mode)
• Syslog Support
Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller.
Management Features • Automatic Device Discovery
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule
• Captive Portal Configuration
• ZTP (Zero-Touch Provisioning)
OTHERS
Certification CE, FCC, RoHS
Package Contents • ER707-M2
• Power Adapter
• Quick Installation Guide
System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10, MAC OS, NetWare, UNIX or Linux
Environment • Operating Temperature: 0–40 ? (32–104 ?);
• Storage Temperature: -40–70 ? (-40–158 ?)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% non-condensing
