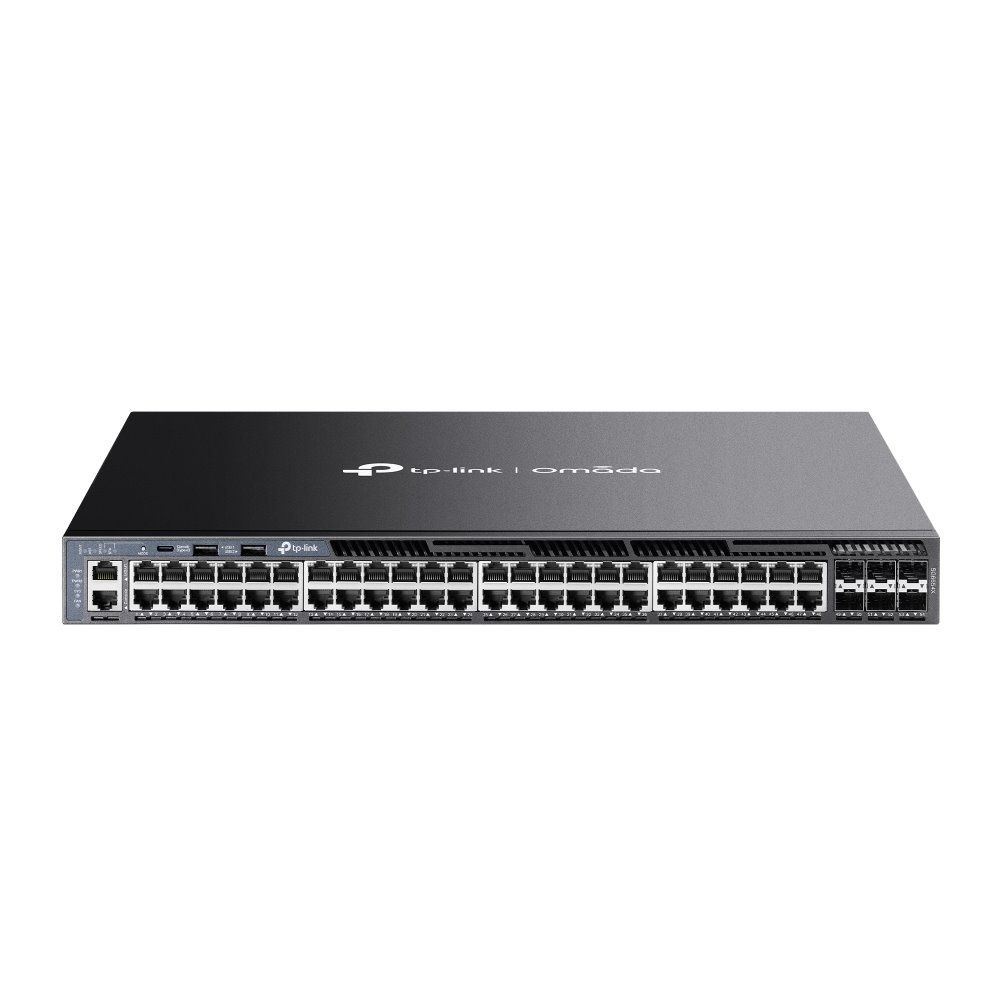

SG6654X
Omada 48portový gigabitový stohovateľný managovaný switch L3 so 6 slotmi 10G
48× gigabitových portov RJ45 a 6× 10 Gb/s slotov SFP+
Prepínacia kapacita 216 Gb/s na jednotku
Fyzické stohovanie pre vstavanú redundanciu a výkonnosť
Funkcia L3: RIP, OSPF, ECMP, VRRP, PIM-DM, DHCP Server/Relay
Stratégia zabezpečenia: ACL, zabezpečenie portov, DoS Defend, 802.1X
Vysoká dostupnosť vďaka dvom interným pevným zdrojom napájania, VRRP a ERPS
Centralizovaná správa cloudu prostredníctvom radiča Omada SDN
Samostatná správa cez web, CLI, SNMP a RMON


HARDWARE FEATURES
Interface • 48× 10/100/1000 Mbps RJ45 Ports
• 6× 10G SFP+ Slots
• 2× USB 2.0 Ports
• 1× RJ45 Console Port
• 1× USB Type-C Console Port
• 1× RJ45 Management Port
Fan Quantity Four Internal Fixed Fans
Power Supply Two Internal Fixed Power Supply Modules (100–240 VAC, 50/60 Hz)
Dimensions ( W x D x H ) 17.3 × 15.0 × 1.7 in (440 × 380 × 44 mm)
Mounting Rackmountable
Max Power Consumption 39.8 W (220 V/50 Hz)
Max Heat Dissipation 135.81 BTU/hr (220 V/50 Hz)
PERFORMANCE
Switching Capacity 216 Gbps per Unit
Stacking • Stacking Number: 8
• Stacking Port: 10G SFP+ Slot (all uplink ports can be used as stacking ports)
• Stack Bandwidth: Up to 120 Gbps (6 stack ports)
Packet Forwarding Rate 160.7 Mpps
MAC Address Table 32 K
Packet Buffer Memory 3 MB
Jumbo Frame 9 KB
SOFTWARE FEATURES
Quality of Service • Class of Service
- 8 Queues of Priority
- Port Priority
- IEEE 802.1p Priority
- DSCP Priority
- Queue Min-Bandwidth
- Schedule Mode (SP, WRR, SP+WRR)
• Bandwidth Control
- Rate Limit
- Storm Control
• Voice VLAN
• User-Defined OUI
• Smoother Performance
• Action for Flows
- QoS remark (802.1P Remark, DSCP Remark)
L3 Features • IP Interfaces:
- IPv4: Max 256, IPv6: Max 256
• Static Routing
- Max 1,024, IPv6: Max 512
• Host Route Table: Max 6,100 entries
• RIP: Version v1/v2, Max 8,190
• OSPF: Version v2/v3; v2: Max 8,190, v3: Max 4,097
• VRRP: Version v2/v3, Max 64 groups
• ECMP: 256 entries, max 32 ECMP Nexthops per Destination
• Static ARP: 512 static entries
• Dynamic ARP: 7,680 dynamic entries
• Proxy ARP
• DHCP Server:
- Max 8K IP Pools
- Max 1,000 Manual Binding Entries
• DHCP Relay:
- Relayed Interface
- Relayed VLAN
L2 and L2+ Features • Link Aggregation
• Spanning Tree Protocol
• Port-based and VLAN-based Loopback Detection
• 802.3x Flow Control
• Supports 2,048 IGMP groups
• ERPS
• Mirroring
• RSPAN
• MAC Address Table
• PIM-DM (IPv4)
• Multicast
- IGMP Snooping
- MLD Snooping
- L2 Multicast Table
- Fast Leave
- Multicast VLAN Registration (MVR)
- Static Multicast IP
- Multicast Filtering
Advanced Features • Automatic Device Discovery†
• Batch Configuration†
• Batch Firmware Upgrading†
• Intelligent Network Monitoring†
• Abnormal Event Warnings†
• Unified Configuration†
• Reboot Schedule†

ISP Features:
• 802.3ah Ethernet Link OAM
• L2PT (Layer 2 Protocol Tunneling)
• Device Link Detect Protocol (DLDP)
• DDM
• sFlow
VLAN • Max 4K VLAN Group (802.1q VLAN)
• 802.1Q Tagged VLAN
• MAC VLAN Entries: 200
• Multicast VLAN
• Management VLAN
• VLAN VPN (QinQ): Max 256 entries
• GVRP
• Protocol VLAN: Protocol Template 16, Protocol VLAN 12 entries
• VLAN VPN
• Voice VLAN
• Private VLAN
Security • Port Isolation
• CPU-Defend
• ARP Inspection (Dynamic ARP Inspection)
• DoS Defend
• IP-MAC-Port Binding
-1,024 Entries
- DHCP Snooping
- ARP Inspection
- IPv4 Source Guard
• IPv6-MAC
-Port Binding
-1,024 Entries
- DHCPv6 Snooping
- ND Detection
- ND Snooping
- IPv6 Source Guard
• DHCP Filter
• Static/Dynamic Port Security
- Up to 64 MAC addresses per port
• Broadcast/Multicast/Unknown-unicast Storm Control
- kbps/ratio control mode
• 802.1X
- Port base authentication
- Mac base authentication
- VLAN Assignment
- MAB
- Guest VLAN
- RADIUS authentication and accountability support
• AAA (including TACACS+)
• Secure web management through HTTPS with SSLv3/TLS 1.2
• Secure Command Line Interface (CLI) management with SSHv2
• IP/Port/MAC-based access control
MANAGEMENT
Omada App Yes. Requiring the use of the Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management • Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller
Cloud Access Yes. Requiring the use of the Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning Yes. Requiring the use of the Omada Cloud-Based Controller.
Management Features • Web-based GUI
• Command Line Interface (CLI) through console port, telnet
• SNMPv1/v2c/v3
- Trap/Inform
- RMON (1, 2, 3, 9 groups)
• SDM Template
• DHCP/BOOTP Client
• 802.1ab LLDP/LLDP-MED
• DHCP Auto Install
• Dual Image, Dual Configuration
• CPU Monitoring
• Cable Diagnostics
• Password Recovery
• SNTP
• System Log
• EEE
OTHERS
Package Contents • SG6654X Switch
• 2× Power Cords
• RJ45 Console Cable
• Quick Installation Guide
• Rackmount Kit
• Rubber Feet
System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
Environment • Operating Temperature:
-5 °C to 50 °C (23 °F to 122 °F) @ 300 meters
-5 °C to 45 °C (23 °F to 113 °F) @ 2,000 meters
-5 °C to 40 °C (23 °F to 104 °F) @ 3,000 meters

• Storage Temperature: -40 °C to 70 ? (-40 ? to 158 ?)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
