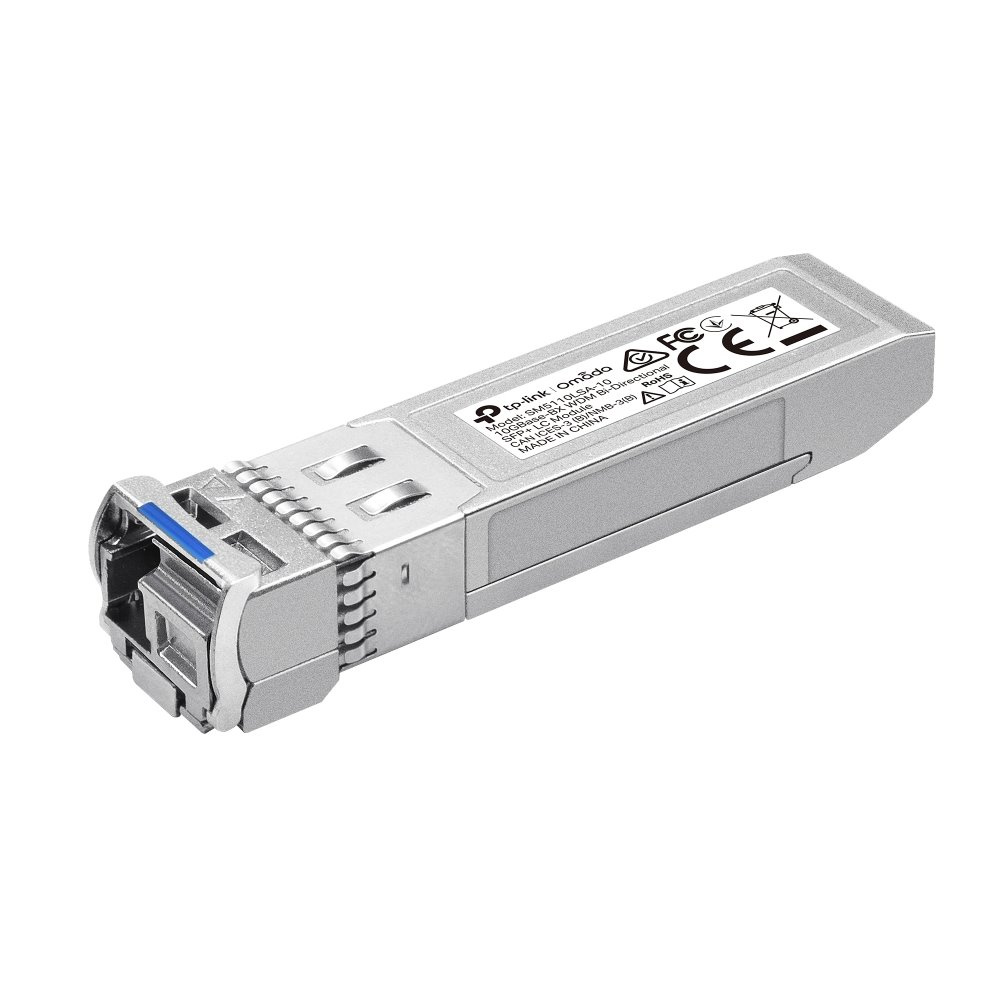

SM5110LSA-10
Omada 10GBase-BX WDM jednovláknový SFP+ LC modul
Podporuje WDM Bi-Di technológiu, používa jedno vlákno, čo šetrí náklady
Single mode SFP+ LC transceiver
Vlnové dĺžky TX 1330 nm, RX 1270 nm
Vymeniteľný za chodu s maximálnou flexibilitou
Podporuje digitálne diagnostické monitorovanie (DDM)
Kompatibilný s 10G Small Form Pluggable Multi-Source Agreement (SFP+)
Kompatibilný s prepínačmi s 10G portami, ako sú SG3428X, SG3452X, SX3008F, SX3016F a pod.

Transceiver
Standards and Protocols • IEEE 802.3ae
• SFF 8431, SFF 8432, SFF-8472
Wavelength •TX: 1330nm
•RX: 1270nm
Power Supply 3.3V
Fiber Type 9µm/125µm Single-Mode
Max. Cable Length 10km
Data Rate 10.3125 Gbps
Connector LC/UPC
Regulatory Compliance CE, FCC, RoHS
Environment • Operating Temperature: 0°C to 70°C (32–158 ?)
• Storage Temperature: -40°C to 85°C (-40°F to 185°F)
• Operating Humidity: 10% to 90% RH non-condensing
• Storage Humidity: 5% to 90% RH non-condensing
HARDWARE FEATURES
DDM Yes
Hot Swappable Yes
Dimensions ( W x D x H ) 2.24*0.55*0.47 in (57*14*12.0 mm)
PACKAGE CONTENTS
Package Contents • SM5110LSA-10
• Installation Guide
