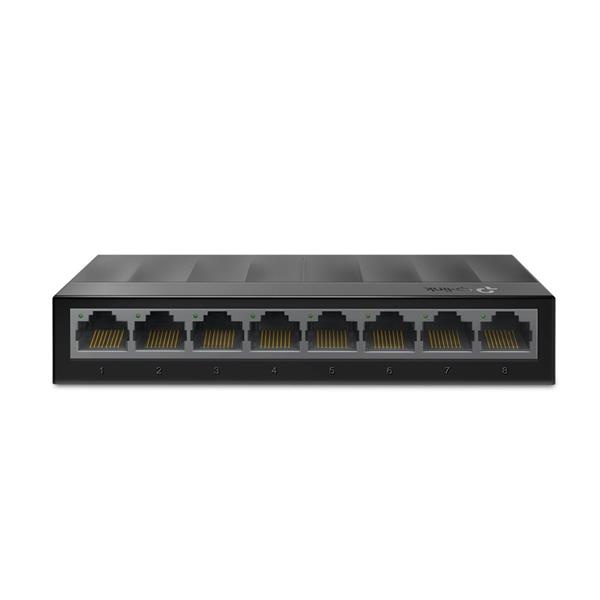

LS1008G
8-Portový stolný switch 10/100/1000Mb/s
8 portov RJ45 s automatickou adaptáciou 10/100/1000Mb/s podporujúcich Auto-MDI/MDIX
Technológia Green Ethernet šetrí spotrebu energie
Riadenie toku IEEE 802.3x zaisťuje spoľahlivý prenos dát
Plastové púzdro, desktopová konštrukcia alebo konštrukcia s upevnením na stenu
Plug and play, bez nutnosti konfigurácie
Dizajn bez ventilátora zaisťuje tichú prevádzku

ARDWARE FEATURES
Standards and Protocols IEEE 802.3i/802.3u/ 802.3ab/802.3x
Interface 8× 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports
Fan Quantity Fanless
External Power Supply External Power Adapter
• V1, V3: 9VDC / 0.6A
• V2: 5VDC / 0.6A
Dimensions ( W x D x H ) 5.0 × 2.6 × 0.9 in. (127 × 66.5 × 23 mm)
Max Power Consumption 3.9W
Max Heat Dissipation 13.299 BTU/h
PERFORMANCE
Switching Capacity 16 Gbps
Packet Forwarding Rate 11.9 Mpps
MAC Address Table 4K
Packet Buffer Memory 1.5 Mb
Jumbo Frame 16 KB
SOFTWARE FEATURES
Advanced Features Green Technology
802.3X Flow Control
Back Pressure
Transfer Method Store and Forward
OTHERS
Certification CE, FCC, RoHS
Package Contents 8-Port 10/100/1000Mbps Desktop Switch
Power Adapter
Installation Guide
Environment Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40?~60? (-40?~140?)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5%~90% non-condensing
