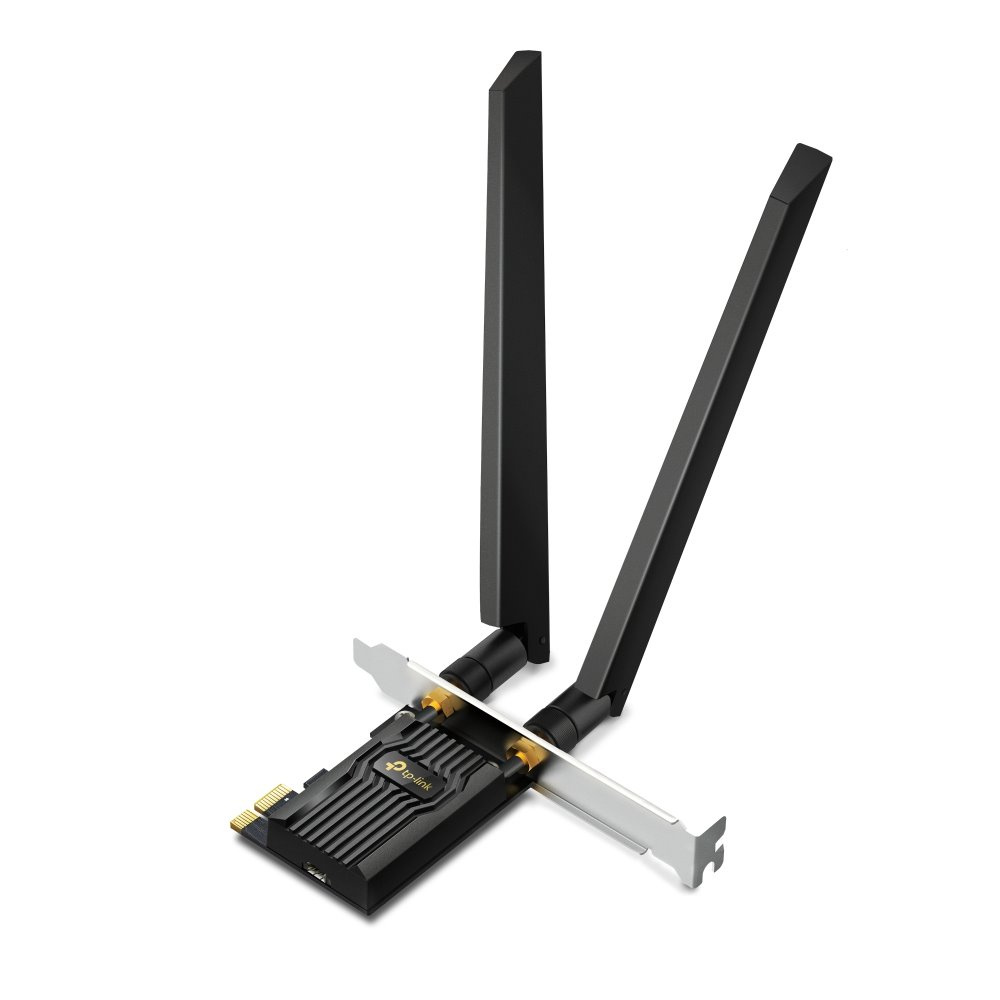

rcher TXE72E
AXE5400 Wi-Fi 6E Bluetooth 5.3 PCIe Adapter
Unparalleled Tri-Band Speed ??— Boost vaše overall speeds up to 2402 Mbps (6 GHz) + 2402 Mbps (5 GHz) + 574 Mbps (2.4 GHz)
WiFi 6E Standard — Rozšíriť na klírens, 6 GHz rozhlasový pásik pre viac bandwidth and faster speeds. Currently 6 GHz Band only supported on Windows 11.
Reliable Connections — Latest Intel® Wi-Fi 6E chipset's reduced latency and improved reliability unlocks váš Wi-Fi 6E router's full potential
Wider Signal Coverage — Two multidirectional antény sú určené pre optimálnu signal reception
Bluetooth 5.3 — Security and reliability improvement than last-gen high-speed Bluetooth 5.2
Improved Security — Najlepšie bezpečnostné enhancement, WPA3, provides enhanced protection in personal password safety
Reliably Engineered — Gold plating improve stability and performance even at high CPU temps
Backward Compatibility — Full support for 802.11ax/ac/a/b/g/n standards

HARDWARE FEATURES
Dimensions 2.2 × 1.4 × 0.4 in (55 × 36 × 11.5 mm)
Antenna Type 2× High-Gain Tri-Band Antennas
WIRELESS FEATURES
Wireless Standards IEEE 802.11a/b/g/n/ac/ax
WLAN Signal Rate 6 GHz:
11ax: Up tp 2402Mbps
5 GHz:
11ax: Up to 2402 Mbps(dynamic)
11ac: Up to 1732 Mbps(dynamic)
11n: Up to 300 Mbps(dynamic)
11a: Up to 54 Mbps(dynamic)
2.4 GHz:
11ax: Up to 574 Mbps(dynamic)
11n: Up to 400 Mbps(dynamic)
11g: Up to 54 Mbps(dynamic)
11b: Up to 11 Mbps(dynamic)
WLAN Reception Sensitivity 6 GHz:
11ax HE160 MCS0:-86
11ax HE160 MCS11:-56
5 GHz:
11ax HE80 MCS0: -90 dBm
11ax HE80 MCS11: -59 dBm
11a 54Mbps: -77 dBm
11ac VHT80 MCS0: -92dBm
11ac VHT80 MCS9: -64dBm
2.4 GHz:
11ax HE40 MCS0: -91 dBm
11ax HE40 MCS11: -60 dBm
11g 54Mbps: -76 dBm
11n HT40 MCS7: -72dBm
WLAN Transmit Power 5 GHz: 20dBm(FCC) /15dBm(CE) (EIRP)
2.4 GHz: 20dBm(FCC) / 16dBm(CE) (EIRP)
6 GHz: 12dBm(FCC)
WLAN Modes Infrastructure mode
Wireless Security WEP, WPA/WPA2/WPA3, WPA-PSK/WPA2-PSK
OTHERS
Certification FCC, CE, RoHS
Package Contents Archer TXE72E
2× High-Gain Antennas
Low-Profile Bracket
Bluetooth Header Cable
Quick Installation Guide
Resource CD
System Requirements Supported operating systems include Windows 10, 11(64-bit).
Currently 6 GHz Band only supported on Windows 11.
Environment Operating Temperature: 0?~40? (32? ~104?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Accessories Specifications Bluetooth Header Cable Length: 0.3m
