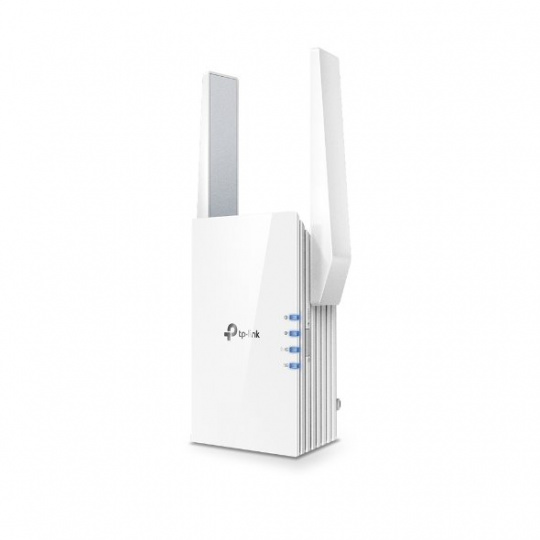

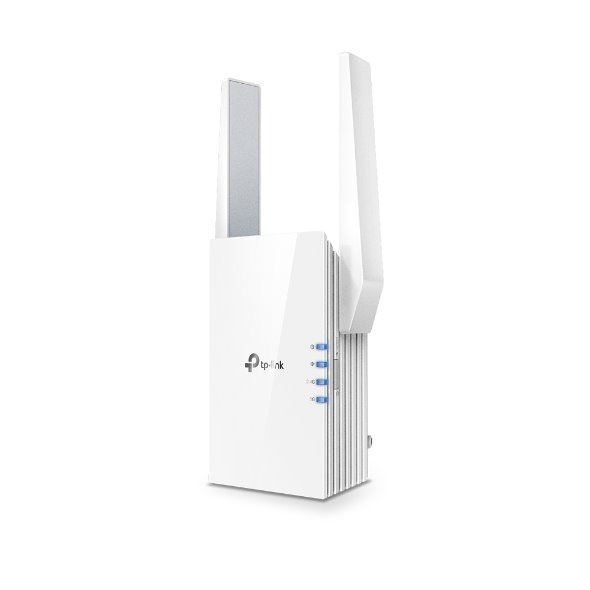

AX1500 Wi-Fi Range Extender
RE505X
RE505X comes equipped with the latest wireless technology, Wi-Fi 6, for faster speeds, greater capacity, and reduced network congestion.
Creates a Mesh network by connecting to a OneMesh router for seamless whole-home coverage.
Gigabit Ethernet Port – Provide faster-wired connections to smart TVs, computers and gaming consoles
Intelligent Signal Light – Helps to determine the best location for optimal Wi-Fi coverage by indicating the signal strength in the current placement
AP Mode – create a new Wi-Fi access point to enhance your wired network with Wi-Fi capability
TP-LINK Tether App – Easily access and manage your network using any iOS or Android mobile device
Ultimate Compatibility – Extend the range of any Wi-Fi router or wireless access point

HARDWARE FEATURES
Ports 1 Gigabit Ethernet Port
Button WPS Button, Reset Button
Power Consumption 10W
Dimensions ( W x D x H ) 2.9×1.8×4.9 in. (74.0×46×124.8 mm)
Antenna 2 External Antennas
WIRELESS FEATURES
Wireless Standards IEEE 802.11a/n/ac/ax 5GHz, IEEE 802.11b/g/n 2.4GHz
Frequency 2.4GHz and 5GHz
Signal Rate 300 Mbps at 2.4GHz, 1200 Mbps at 5GHz
Reception Sensitivity 5GHz:

11a 6Mbps: -93dBm,
11a 54Mbps: -75dBm
11ac HT20 MCS0: -92dBm,
11ac HT20 MCS8: -70dBm
11ac HT40 MCS0: -90dBm,
11ac HT40 MCS9: -66dBm
11ac HT80 MCS0: -87dBm,
11ac HT80 MCS9: -62dBm

2.4GHz:

11g 54Mbps: -77dBm,
11n HT20 MCS7: -75dBm
11n HT40 MCS7: -72dBm
Transmit Power CE: 2.4GHz ?20dBm, 5GHz ?30dBm
Wireless Functions Enable/Disable Wireless Radio, Wireless Statistics
Wireless Security 64/128-bit WEP, WPA/WPA-PSK2 encryptions
OTHERS
Package Contents Wi-Fi Range Extender RE505X
Quick Installation Guide
System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
Certifications FCC, RoHS
