TP-LINK "AC750 Wi-Fi Range ExtenderSPEED: 300Mbps at 2.4GHz + 433Mbps at 5GHzSPEC: 2 × External Antennas, 1 × 10/100Mb
Popis a parametre
TP-LINK "AC750 Wi-Fi Range ExtenderSPEED: 300Mbps at 2.4GHz + 433Mbps at 5GHzSPEC: 2 × External Antennas, 1 × 10/100Mb

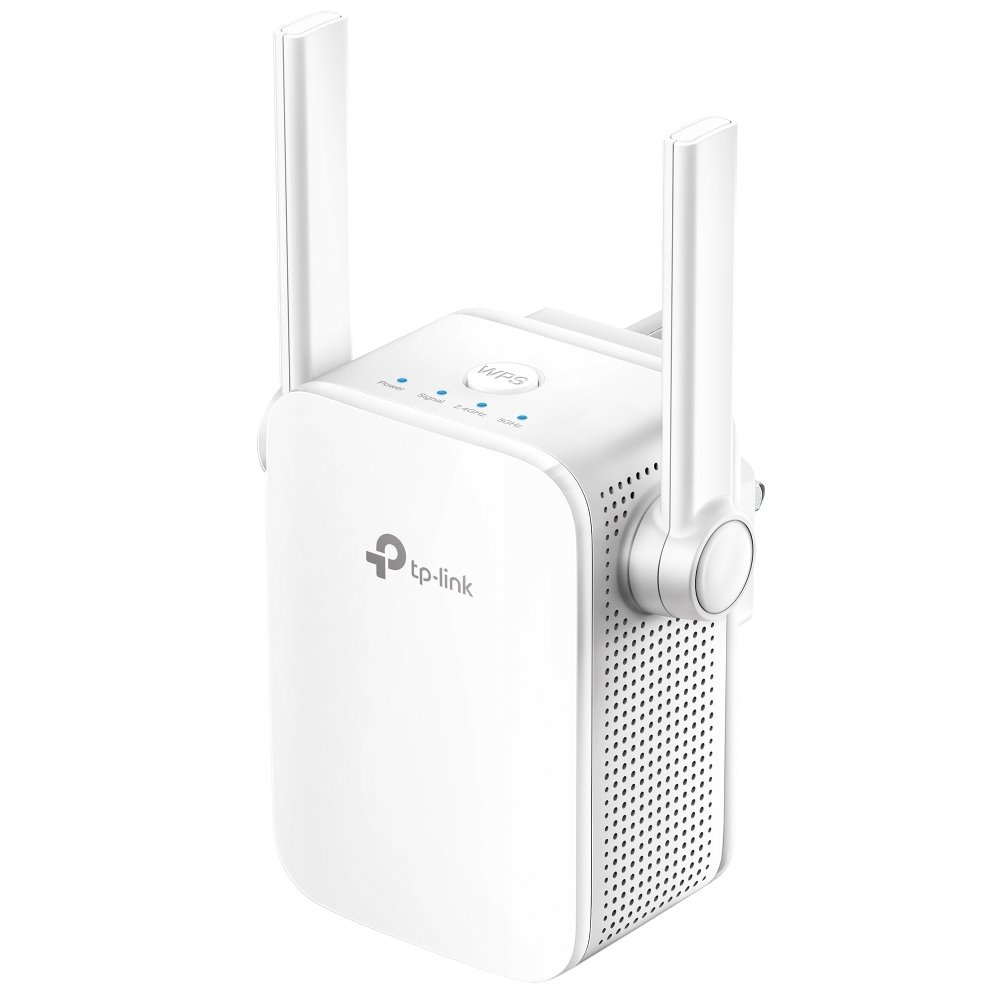

RE205
AC750 Wi-Fi Extender
Oživuje mrtvou zónu Wi-Fi díky silnému rozšíření Wi-Fi při kombinované rychlosti až 750 Mb/s
Pracuje v pásmu 2,4GHz (300Mb/s) a 5GHz (433Mb/s) pro stabilnější bezdrátovou provoz
Inteligentní signální světlo pomáhá najít nejlepší umístění pro optimální pokrytí Wi-Fi, a to zobrazením síly signálu
Spolupracuje s libovolným Wi-Fi routerem nebo bezdrátovým přístupovým bodem
WIRELESS
Working Modes Range Extender/Access Point
HARDWARE FEATURES
Plug Type EU, UK, US
Standards and Protocols IEEE802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11a, IEEE 802.11b
Interface 1 x 10/100M Ethernet Port (RJ45)
Ports 1 x 10/100Mbps Ethernet Port (RJ45)
Button WPS Button, Reset Button
Input Power 100-240V~50/60Hz
Power Consumption 7.3W(max power consumption)
Dimensions ( W x D x H ) 3.1 x 3.0 x 3.0 in. (80 x 78 x 77mm)
Antenna 2 x external
WIRELESS FEATURES
Wireless Standards IEEE 802.11a/n/ac 5GHz, IEEE 802.11b/g/n 2.4GHz
Frequency 2.4GHz & 5GHz(11ac)
Signal Rate 5GHz:Up to 433Mbps
2.4GHz:Up to 300Mpbs
Reception Sensitivity 5GHz:
11a 6Mbps: -94dBm@10% PER
11a 54Mbps: -77dBm@10% PER
11ac HT20: -69dBm@10% PER
11ac HT40: -66dBm@10% PER
11ac HT80: -63dBm@10% PER
2.4GHz
11g 54Mbps: -79dBm@10% PER
11n HT20: -77dBm@10% PER
11n HT40: -74dBm@10% PER
Wireless Modes Range Extender/Access Point
Wireless Statistic
Concurrent Mode boost both 2.4G/5G Wi-Fi band
Wireless Functions Wireless Statistic
Concurrent Mode boost both 2.4G/5G Wi-Fi band
Access Control
LED Control
Domain Login Function
Wireless Security 64/128-bit WEP
WPA-PSK / WPA2-PSK
Transmission Power <19.5dBm(2.4GHz)
<19.5dBm(5GHz)
OTHERS
Certification CE, FCC, RoHS
Package Contents AC750 Wi-Fi Range Extender RE205
Quick Installation Guide
Box Dimensions (W X D X H) 6.15 x 4 x 3.7 in. (156.5 x 101.5 x 95mm)
System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10, Mac® OS, NetWare®, UNIX® or Linux.
Environment Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
AC750 Wi-Fi Extender
Oživuje mrtvou zónu Wi-Fi díky silnému rozšíření Wi-Fi při kombinované rychlosti až 750 Mb/s
Pracuje v pásmu 2,4GHz (300Mb/s) a 5GHz (433Mb/s) pro stabilnější bezdrátovou provoz
Inteligentní signální světlo pomáhá najít nejlepší umístění pro optimální pokrytí Wi-Fi, a to zobrazením síly signálu
Spolupracuje s libovolným Wi-Fi routerem nebo bezdrátovým přístupovým bodem
WIRELESS
Working Modes Range Extender/Access Point
HARDWARE FEATURES
Plug Type EU, UK, US
Standards and Protocols IEEE802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11a, IEEE 802.11b
Interface 1 x 10/100M Ethernet Port (RJ45)
Ports 1 x 10/100Mbps Ethernet Port (RJ45)
Button WPS Button, Reset Button
Input Power 100-240V~50/60Hz
Power Consumption 7.3W(max power consumption)
Dimensions ( W x D x H ) 3.1 x 3.0 x 3.0 in. (80 x 78 x 77mm)
Antenna 2 x external
WIRELESS FEATURES
Wireless Standards IEEE 802.11a/n/ac 5GHz, IEEE 802.11b/g/n 2.4GHz
Frequency 2.4GHz & 5GHz(11ac)
Signal Rate 5GHz:Up to 433Mbps
2.4GHz:Up to 300Mpbs
Reception Sensitivity 5GHz:
11a 6Mbps: -94dBm@10% PER
11a 54Mbps: -77dBm@10% PER
11ac HT20: -69dBm@10% PER
11ac HT40: -66dBm@10% PER
11ac HT80: -63dBm@10% PER
2.4GHz
11g 54Mbps: -79dBm@10% PER
11n HT20: -77dBm@10% PER
11n HT40: -74dBm@10% PER
Wireless Modes Range Extender/Access Point
Wireless Statistic
Concurrent Mode boost both 2.4G/5G Wi-Fi band
Wireless Functions Wireless Statistic
Concurrent Mode boost both 2.4G/5G Wi-Fi band
Access Control
LED Control
Domain Login Function
Wireless Security 64/128-bit WEP
WPA-PSK / WPA2-PSK
Transmission Power <19.5dBm(2.4GHz)
<19.5dBm(5GHz)
OTHERS
Certification CE, FCC, RoHS
Package Contents AC750 Wi-Fi Range Extender RE205
Quick Installation Guide
Box Dimensions (W X D X H) 6.15 x 4 x 3.7 in. (156.5 x 101.5 x 95mm)
System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10, Mac® OS, NetWare®, UNIX® or Linux.
Environment Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
