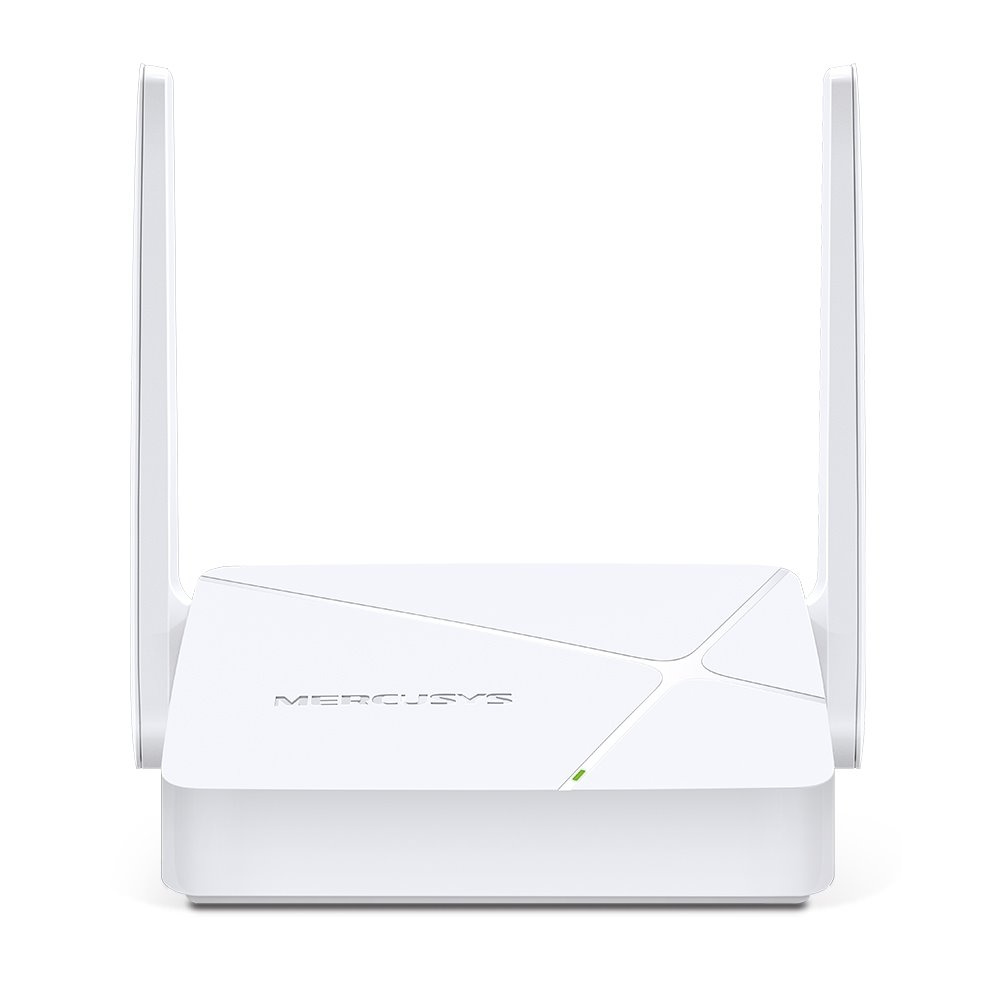

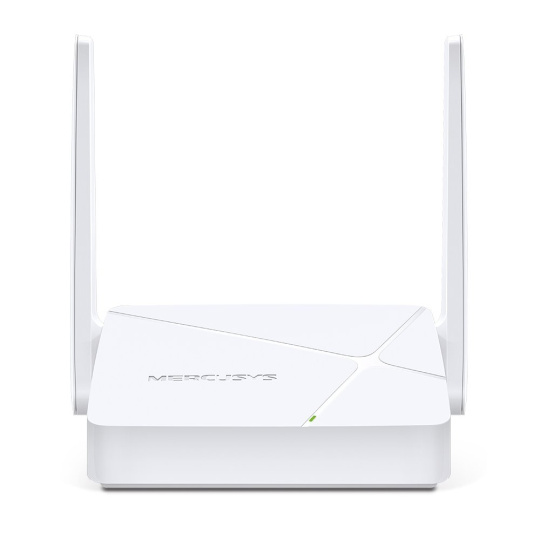

AC750 Wireless Dual Band Router
AC750 Dual Band WiFi – Enjoy home entertainment without any lag, reaching speeds up to 750 Mbps (433 Mbps on the 5 GHz band and 300 Mbps on the 2.4 GHz band)
Broader Coverage – 2× high-gain external antennas boost stable omnidirectional connections throughout your home for strong WiFi signals in every corner
Multi-Mode — Router mode, Access Point Mode, and Range Extender mode in one device to satisfy all application scenarios
Easy installation — Intuitive webpage or MERCUSYS app guides you through the setup process in minutes.
Easily Manage Your Home Network – Varied software functions such as Parental Controls, QoS, and Guest Network for safety and effectiveness
IPTV and IPv6 Supported

WirelessWiFi Speeds
300 Mbps (2.4 GHz) + 433 Mbps (5 GHz),
compatible with 11ac/a/b/g/n Wi-Fi standards

Reception Sensitivity
2.4G
11g 6Mbps: -94dBm
11g 54Mbps: -77dBm
11n HT40 MCS7:-73dBm
11n HT20 MCS7:-76dBm
5G
11a 6Mbps:-93dBm
11a 54Mbps:-75dBm
11ac VHT20 MCS8:-70dBm
11ac VHT40 MCS9:-65dBm
11ac VHT80 MCS9:-62dBm

Transmission Power
2.4 GHz < 20dBm (EIRP)
5 GHz < 23dBm (EIRP)

Wireless Security
WPA-PSK/WPA2-PSK/WPA3

HardwareDimensions
4.5 × 3.7 × 1.0 in (114 × 94 × 26 mm)

Interfaces
1× 10/100 Mbps WAN Port, 2× 10/100 Mbps LAN Ports

Button
Reset/WPS Button

Antenna Type
2× 5 dBi Fixed Omni-Directional Antennas

SoftwareOperation Modes
Router Mode, Range Extender Mode, Access Point Mode

WAN Type
Dynamic IP/Static IP/PPPoE/L2TP/PPTP

Management
Access Control
Local Management
Remote Management

DHCP
Server, DHCP Client List

NAT Forwarding
Port Forwarding, Port Triggering, UPnP, DMZ

Firewall Security
SPI Firewall, IP and MAC Address Binding

Guest Network
2.4 GHz Guest Network, 5 GHz Guest Network

OthersPackage Contents
• AC750 Wi-Fi Router (MR20)
• Power Adapter
• Quick Installation Guide
• RJ45 Ethernet Cable

Environment
• Operating Temperature: 0°C~40°C (32°F~104°F)
• Operating Humidity: 10%~90% Non-Condensing
• Storage Humidity: 5%~90% Non-Condensing
