TP-LINK "5MP Full-Color Turret Network CameraSPEC:H.265+/H.265/H.264+/H.264, 1/2.7"" Progressive Scan CMOS, Color/0.005
Popis a parametre
TP-LINK "5MP Full-Color Turret Network CameraSPEC:H.265+/H.265/H.264+/H.264, 1/2.7"" Progressive Scan CMOS, Color/0.005

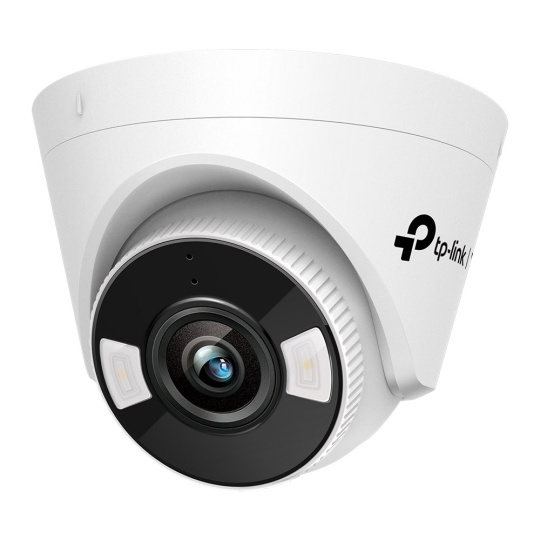

VIGI C450 New VIGI 5 Mpx vnútorný turret sieťová kamera s plnofarebným nočným videním Super vysoké rozlíšenie 5 Mpx: Kamera má rozlíšenie 5 Mpx – to je viac ako dostatočný počet pixelov na zachytenie niektorých diskrétnejších detailov. 24h Full-Color: Vďaka objektívu s veľkou clonou, veľmi citlivému snímaču a pripojeným doplnkovým svetlám získate po 24 hodín farebné detaily aj v čiernočiernych podmienkach. Rozlíšenie ľudí a vozidiel: Rozlišuje ľudí a vozidlá od ostatných objektov, takže dostávate presnejšie oznámenie o udalostiach. Inteligentná Detekcia: Aktívne detekuje neobvyklé udalosti, ako je narušenie vytýčenej oblasti a prekročenie hranice, a ihneď vám zašle oznámenie. Analýza osôb a vozidiel: Rýchlo a efektívne vyhľadávajte požadované osoby alebo vozidlá na základe mnohých rôznych vlastností§. Aktívna obrana: Okamžite odraďte možných votrelcov pomocou sirény a svetiel v prípade neobvyklých situácií. Obojsmerný zvuk: Vďaka podpore hlasového interkomu môžete viesť obojsmernú konverzáciu a zároveň sledovať svoj kanál odkiaľkoľvek. Corridor Mode: Umožňuje zmeniť pomer strán obrazu z 16:9 na 9:16 a pomáha tak sledovať dlhé a úzke oblasti. H.265+?: Kamery prenášajú komprimovaný krištáľovo čistý obraz bez toho, aby využívali ďalšiu šírku pásma, a šetria tak miesto na disku, znižujú zaťaženie siete a náklady na monitorovanie – to všetko bez zníženia kvality obrazu. Inteligentné vylepšenia videa: Profesionálne technológie VIGI spracovávajú videá a výrazne zlepšujú ich kvalitu, ktorá je pre vaše sledovanie zásadná, vrátane Smart IR, True WDR, 3D DNR a nočného videnia. PoE/12V DC: Dva typy napájacích zdrojov vám poskytnú nielen väčšie pohodlie, ale aj pozoruhodne uľahčia zapojenie. Flexibilná správa a úložisko: Prevezmite plnú kontrolu nad svojím zabezpečením prostredníctvom štyroch spôsobov správy: webového užívateľského rozhrania, užívateľského rozhrania NVR, aplikácie VIGI a nástroja VIGI Security Manager. Miestne úložisko je dostupné pre každú z metód, rovnako ako integrované úložisko so slotom na SD kartu (až 512 GB).
CAMERA
Image Sensor 1/2.7” Progressive Scan CMOS
Shutter Speed 1/3 to 1/10000 s
Slow Shutter Yes
Minimum Illumination 0.005 Lux; 0 Lux with IR/white light
Day/Night Mechanism IR Cut Filter
Day/Night Switch Unified/ Scheduled/ Auto
LENS
Type Fixed Focal Lens
Focal Length 2.8/4 mm
Aperture 2.8 mm: F1.6
4 mm: F1.6
FOV 2.8mm:
Horizontal FOV: 109°, Vertical FOV: 57°, Diagonal FOV: 128°
4mm:
Horizontal FOV: 90°, Vertical FOV: 48°, Diagonal FOV: 107°
Lens Mount M12*P 0.5
DORI Distance 2.8 mm
Detect: 64 m (209 ft)
Observe: 27 m (87 ft)
Recognize: 13 m (42 ft)
Identify: 6 m (21 ft)
4 mm
Detect: 80 m (262 ft)
Observe: 33 m (109 ft)
Recognize: 16 m (52 ft)
Identify: 8 m (26 ft)
Angle Adjustment (Manual)
Range Pan: 0° to 360°, Tilt: 0° to 85°
ILLUMINATOR
IR LED Quantity: 2
Range: 30m
Wavelength: 850nm
White LED Quantity: 2
Range: 30m
Illuminator On/Off Control Auto/Scheduled/Always on/Always off
VIDEO
Max. Resolution 2880 X 1620
Main Stream Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution:
2880x1620,2688x1520, 2304x1296, 2048x1280, 1920x1080,1280x720
Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-Stream Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution:
704x576,640x480, 352x288, 320x240
Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate Control CBR, VBR
Video Compression Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
H.264 Type Main Profile/High Profile
H.264+ Main Stream Supported
H.265 Type Main Profile?
H.265+ Main Stream Supported?
Video Bit Rate Main Stream: 256 Kbps to 6 Mbps
Sub-Stream: 64 Kbps to 512 Kbps
Image Settings Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation(90°/270°)
Image Enhancement BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range 120 dB
SNR ? 52 dB
Image Parameters Switch Yes
Privacy Mask Up to 4 Masks
ROI 1 Region
OSD Setting Yes
AUDIO
Audio Communication Two-Way Audio
Audio Input Yes
Audio Output Yes
Audio Compression Yes
Audio Sampling Rate 8KHz
Environment Noise Filtering Yes
Audio Bit Rate 64 Kbps(G.711 alaw)
NETWORK
Protocol TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
ONVIF Yes
API Open Network Video Interface (Profile S)
Simultaneous Live View 3 Main Streams & 3 Sub-Streams
Client VIGI App, VIGI Security Manager, Web UI
Web Browser Google Chrome® 57 and above
Firefox® 52 and above
Safari® 11 and above
Microsoft® Edge 91 and above
Cloud Yes
Security Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
ALARM AND EVENT MANAGEMENT
Smart Event Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection, Loitering Detection
Basic Event Motion Detection, Video Tampering Detection, Exception ( Illegal Login), Scene Change Detection
Alarm Linkage Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing
Linkage Method N/A
Output Notification Message Push
Deep Learning Function
People & Vehicle Analytics Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.
Multi-Target-Type Detection Supports Simultaneous Detection and Capture of Human Body and Vehicle
Face Capture N/A
Face Comparison N/A
INTERFACES
Network Interface 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Alarm N/A
Reset Button Yes
Power DC Power Port
On-board Storage Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB
Built-in Microphone Yes; Records Anything Going on within a 15-ft Radius of the Camera
Built-in Speaker Yes
Audio N/A
GENERAL
Operating Temperature -30–60 °C
Storage Temperature -40–60 °C
Operating Humidity 95% or Less (Non-Condensing)
Storage Humidity 95% or Less (Non-Condensing)
Package Contents VIGI Network Camera
Quick Start Guide
Mounting Accessories
Material Plastic
Net Weight 0.24 Kg
Gross Weight 0.4 Kg
Power Supply 12V DC ± 5%, Max. 9 W, 5.5mm Coaxial Power Plug
PoE: 802.3af/at, class 0, Max. 10.5 W
Protection N/A
Product Dimensions (L x W x H) 123x 84x 123 mm
Certifications CE, NTRA, VCCI, KC, BSMI, FCC, IC
CAMERA
Image Sensor 1/2.7” Progressive Scan CMOS
Shutter Speed 1/3 to 1/10000 s
Slow Shutter Yes
Minimum Illumination 0.005 Lux; 0 Lux with IR/white light
Day/Night Mechanism IR Cut Filter
Day/Night Switch Unified/ Scheduled/ Auto
LENS
Type Fixed Focal Lens
Focal Length 2.8/4 mm
Aperture 2.8 mm: F1.6
4 mm: F1.6
FOV 2.8mm:
Horizontal FOV: 109°, Vertical FOV: 57°, Diagonal FOV: 128°
4mm:
Horizontal FOV: 90°, Vertical FOV: 48°, Diagonal FOV: 107°
Lens Mount M12*P 0.5
DORI Distance 2.8 mm
Detect: 64 m (209 ft)
Observe: 27 m (87 ft)
Recognize: 13 m (42 ft)
Identify: 6 m (21 ft)
4 mm
Detect: 80 m (262 ft)
Observe: 33 m (109 ft)
Recognize: 16 m (52 ft)
Identify: 8 m (26 ft)
Angle Adjustment (Manual)
Range Pan: 0° to 360°, Tilt: 0° to 85°
ILLUMINATOR
IR LED Quantity: 2
Range: 30m
Wavelength: 850nm
White LED Quantity: 2
Range: 30m
Illuminator On/Off Control Auto/Scheduled/Always on/Always off
VIDEO
Max. Resolution 2880 X 1620
Main Stream Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution:
2880x1620,2688x1520, 2304x1296, 2048x1280, 1920x1080,1280x720
Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-Stream Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution:
704x576,640x480, 352x288, 320x240
Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate Control CBR, VBR
Video Compression Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
H.264 Type Main Profile/High Profile
H.264+ Main Stream Supported
H.265 Type Main Profile?
H.265+ Main Stream Supported?
Video Bit Rate Main Stream: 256 Kbps to 6 Mbps
Sub-Stream: 64 Kbps to 512 Kbps
Image Settings Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation(90°/270°)
Image Enhancement BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range 120 dB
SNR ? 52 dB
Image Parameters Switch Yes
Privacy Mask Up to 4 Masks
ROI 1 Region
OSD Setting Yes
AUDIO
Audio Communication Two-Way Audio
Audio Input Yes
Audio Output Yes
Audio Compression Yes
Audio Sampling Rate 8KHz
Environment Noise Filtering Yes
Audio Bit Rate 64 Kbps(G.711 alaw)
NETWORK
Protocol TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
ONVIF Yes
API Open Network Video Interface (Profile S)
Simultaneous Live View 3 Main Streams & 3 Sub-Streams
Client VIGI App, VIGI Security Manager, Web UI
Web Browser Google Chrome® 57 and above
Firefox® 52 and above
Safari® 11 and above
Microsoft® Edge 91 and above
Cloud Yes
Security Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
ALARM AND EVENT MANAGEMENT
Smart Event Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection, Loitering Detection
Basic Event Motion Detection, Video Tampering Detection, Exception ( Illegal Login), Scene Change Detection
Alarm Linkage Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing
Linkage Method N/A
Output Notification Message Push
Deep Learning Function
People & Vehicle Analytics Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.
Multi-Target-Type Detection Supports Simultaneous Detection and Capture of Human Body and Vehicle
Face Capture N/A
Face Comparison N/A
INTERFACES
Network Interface 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Alarm N/A
Reset Button Yes
Power DC Power Port
On-board Storage Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB
Built-in Microphone Yes; Records Anything Going on within a 15-ft Radius of the Camera
Built-in Speaker Yes
Audio N/A
GENERAL
Operating Temperature -30–60 °C
Storage Temperature -40–60 °C
Operating Humidity 95% or Less (Non-Condensing)
Storage Humidity 95% or Less (Non-Condensing)
Package Contents VIGI Network Camera
Quick Start Guide
Mounting Accessories
Material Plastic
Net Weight 0.24 Kg
Gross Weight 0.4 Kg
Power Supply 12V DC ± 5%, Max. 9 W, 5.5mm Coaxial Power Plug
PoE: 802.3af/at, class 0, Max. 10.5 W
Protection N/A
Product Dimensions (L x W x H) 123x 84x 123 mm
Certifications CE, NTRA, VCCI, KC, BSMI, FCC, IC
