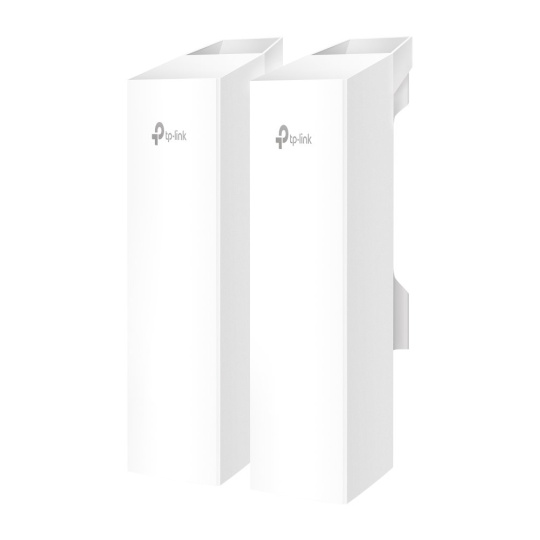

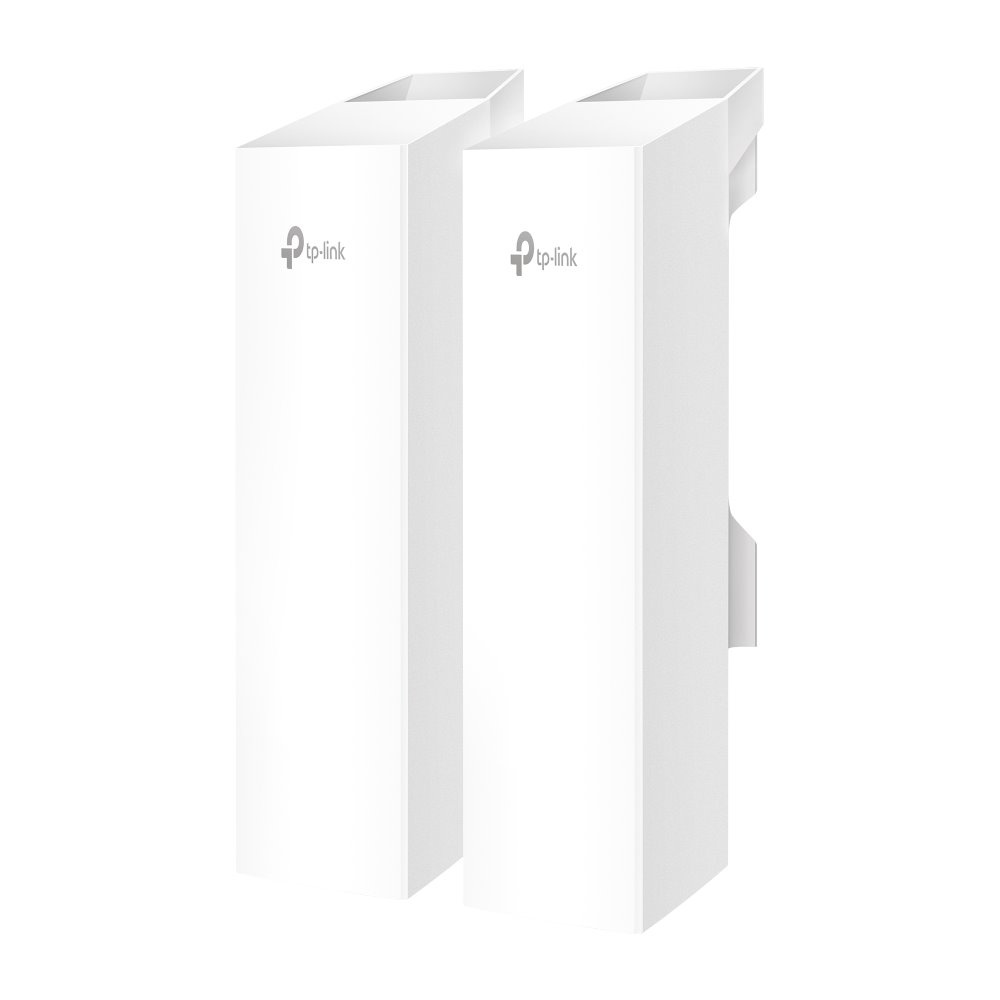

EAP211-Bridge KIT
Bezdrôtový most Omada 5 GHz 867 Mb/s vnútorný/vonkajší prístupový bod
802.11ac pro až 867 Mbps pri 5 GHz bezdrôtovej základnej frekvencii.*1
Ideálny profesionálny bezdrôtový prenos na veľké vzdialenosti až do 1 km.*2
Automatické párovanie a agilné LED diódy pre efektívne nasadenie.
3× Gigabit Ethernet porty pre viac vysokorýchlostných pripojení IP kamier.
Podporuje vzdialenú a centralizovanú správu Omada SDN pro.
IP65 naprogramovať clonu a ochranu pred bleskom 6kV vhodnosť do každého počasia.*3
Podporuje pasívne PoE pre flexibilné nasadenie (adaptér je súčasťou balenia).

HARDWARE FEATURES
Interface 3x Gigabit Ethernet Ports
Button Reset
Power Supply 12V DC / 24V Passive PoE (Passive PoE adapter included.)
Dimensions ( W x D x H ) 8.8 x 3.1 x 2.4 in (224 × 79 × 60 mm)
Antenna Type Internal 2×2 Dual-polarized directional MIMO antennas
5 GHz: 7.0 dBi
Horizontal:70°, Vertical: 70°
Weatherproof Enclosure IP65
Mounting Pole Mounting (Accessories included)
WIRELESS FEATURES
Coverage 1000m(3280ft)5
Wireless Standards IEEE 802.11 a/b/g/n/ac
Frequency 5 GHz
Signal Rate 5 GHz: Up to 867 Mbps
Wireless Functions • Mesh*4
• MU-MIMO: 5G 2x2 MU-MIMO DL
• Load Balance
• Beamforming
• Airtime Fairness
• Multiple SSIDs:8
• Wireless Statistics
• Wireless Schedule
• Reboot Schedule
• RADIUS Accounting
• MAC Authentication
• Static IP/Dynamic IP
Wireless Security • VLAN
• Access Control
• Rogue AP Detection
• Captive Portal Authentication*4
• Maximum number of MAC Filter: 4,000
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise
Transmission Power • CE:
<23dBm (5 GHz, band 1/2, EIRP);
<30dBm (5 GHz band3, EIRP);

• FCC:
<22dBm (5 GHz band1/4)
MANAGEMENT
Omada App Yes
Restore & Backup Yes
Firmware update via Web Yes
NTP Yes
Centralized Management • Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
• Omada Cloud-Based Controller
Cloud Access Yes. Require the use of OC300, OC200, the Omada Software Controller, or Omada Cloud-Based Controller.
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1, v2c, v3
SSH Yes
Web-based Management Yes
OTHERS
Certification CE, FCC, RoHS
Package Contents • EAP211-Bridge KIT
• Passive PoE Adapter
• Power Cord
• Installation Guide
• Mounting Kit
Environment • Operating Temperature: -40 °C–70 °C (-40 °F–158 °F);
• Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);
• Operating Humidity: 10%–90% non-condensing;
• Storage Humidity: 5%–90% non-condensing
