WIRELESS
Standards Wi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz
WiFi Speeds AX3000
5 GHz: 2402 Mbps (802.11ax)
2.4 GHz: 574 Mbps (802.11ax)
WiFi Range 1-3 Bedroom Houses (1-pack)
TP-Link Mesh Technology
Optional Ethernet backhaul work together to link Deco units to provide seamless coverage

4× LTE/5G internal antennas + 2× Wi-Fi internal antennas
+ 2× external antenna interface
Multiple antennas form a signal-boosting array to cover more directions and large areas
WiFi Capacity High
Dual-Band
Distribute devices to different bands for optimal performance

MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients

OFDMA
Simultaneously communicates with multiple WiFi 6 clients

4 Streams
More than enough bandwidth for connected devices
Working Modes 5G/4G Router, Router, Access Point
SECURITY
Network Security SPI Firewall
Access Control

HomeShield Security
Real-Time IoT Protection
Malicious Site Blocker
Intrusion Prevention System
DDoS Attack Prevention
Home Network Scanner
Guest Network 1× 5 GHz Guest Network
1× 2.4 GHz Guest Network
WiFi Encryption WPA-Personal
WPA2-Personal
WPA3-Personal
HARDWARE
Ports and Connections 1× 2.5 Gigabit port + 2× 1 Gigabit ports
(WAN/LAN auto-sensing)

Compatibility
5G: N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N77/N78
4G FDD-LTE: B1/B3/B5/B7/B8/B20/B28
4G TDD-LTE: B38/B40/B41/B42/B43
3G: B1/B5/B8
SOFTWARE
Protocols IPv4
IPv6
Service Kit HomeShield
Learn More>
WAN Types Dynamic IP
Static IP
PPPoE
L2TP
PPTP
Quality of Service HomeShield QoS
QoS by Device
Cloud Service OTA Firmware Upgrade
TP-Link ID
DDNS
NAT Forwarding Port Forwarding
UPnP
IPTV IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN
DHCP Address Reservation
DHCP Client List
Server
DDNS TP-Link
Management Deco App
TEST DATA
WiFi Transmission Power CE:
?20 dBm (2.4 GHz),
?23 dBm (5 GHz)
PHYSICAL
Dimensions (W×D×H) 8.3 × 5.1 × 4.8 in
(210.5 × 130 × 123mm)
OTHERS
Certification RoHS, CE, RCM
Package Contents 1-pack

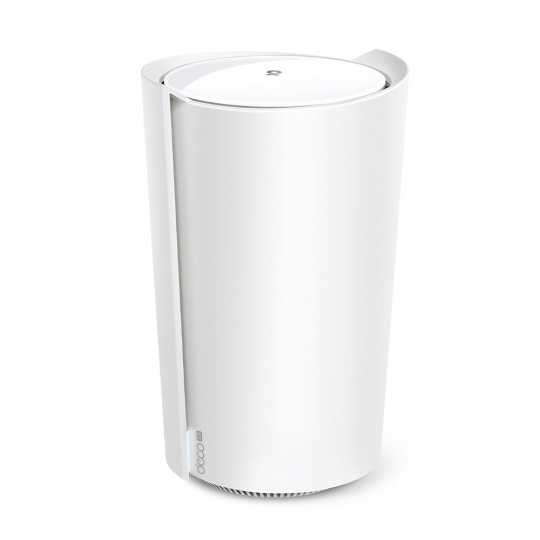

1 Deco X50-5G unit
1 RJ45 Ethernet Cable
1 Power Adapter
Quick Installation Guide
Environment Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~60°C (-40°F~140°F)
Operating Humidity: 10%~90%RH
Storage Humidity: 5%~90%RH
