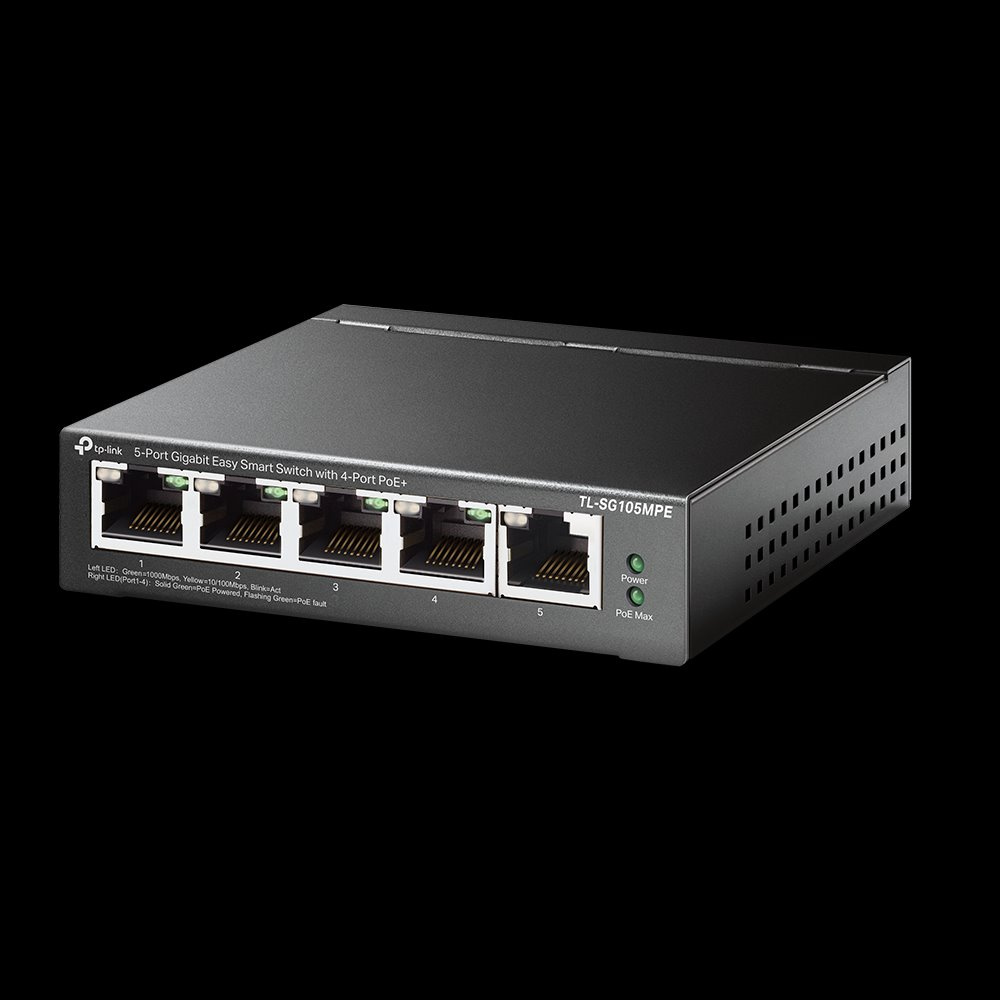

TL-SG105MPE
5portový gigabitový Easy Smart switch
so 4 portami PoE+
5 portov 10/100/1 000 Mbit/s RJ45
Je vybavený štyrmi portami 802.3af/at PoE+ s výkonom až 30 W pre každý port, dáta a napájanie je možné prenášať jediným káblom
Podporuje napájanie PoE s celkovým výkonom až 120 W zo všetkých portov PoE*
Poskytuje monitorovanie siete, riadenie prevádzky podľa priorít, funkcie VLAN a automatické obnovenie PoE
Jednoduché nastavenie siete a pripojenie „Plug and Play“
Webové užívateľské rozhranie a SW nástroj Easy Smart Configuration Utility zjednodušujú nastavenie
Konštrukcia bez ventilátora znižuje spotrebu energie a eliminuje prevádzkovú hlučnosť

HARDWARE FEATURES
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af,
IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at
Interface Five 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100? STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100? STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100? STP (maximum 100m)
Fan Quantity Fanless
Power Supply External Power Adapter (Output: 53.5 VDC / 2.43 A)
PoE Ports (RJ45) Standard: 802.3 af/at compliant
PoE Ports: Port 1- Port 4
PoE Power Budget: 120 W
Dimensions ( W x D x H ) 3.9 × 3.9 × 1.0 in (99.8 × 98 × 25 mm)
Max Power Consumption 4.34 W (220 V/50 Hz with no PD connected)
137.01 W (110 V/50 Hz with 120 W PD connected)
Max Heat Dissipation 14.8 BTU/h (with no PD connected)
467.17 BTU/h (with 120 W PD connected)
PERFORMANCE
Switching Capacity 10 Gbps
Packet Forwarding Rate 7.44 Mpps
MAC Address Table 2 K
Packet Buffer Memory 1 Mb
Jumbo Frame 16 KB
SOFTWARE FEATURES
Quality of Service Support Port-Based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control
L2 Features IGMP Snooping V1/V2/V3
Static Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention
PoE Auto Recovery
Extend Mode
VLAN Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN
Management Web-based GUI
Easy Smart Configuration Utility
Transmission Method Store-And-Forward
OTHERS
Certification FCC, CE, RoHS
Package Contents TL-SG105MPE
Power Adapter
Installation Guide
Rubber Feet
System Requirements Microsoft® Windows® for running Utility
Environment Operating Temperature: 0?~40? (32?~104?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90%RH non-condensing
Storage Humidity: 5%~95%RH non-condensing
