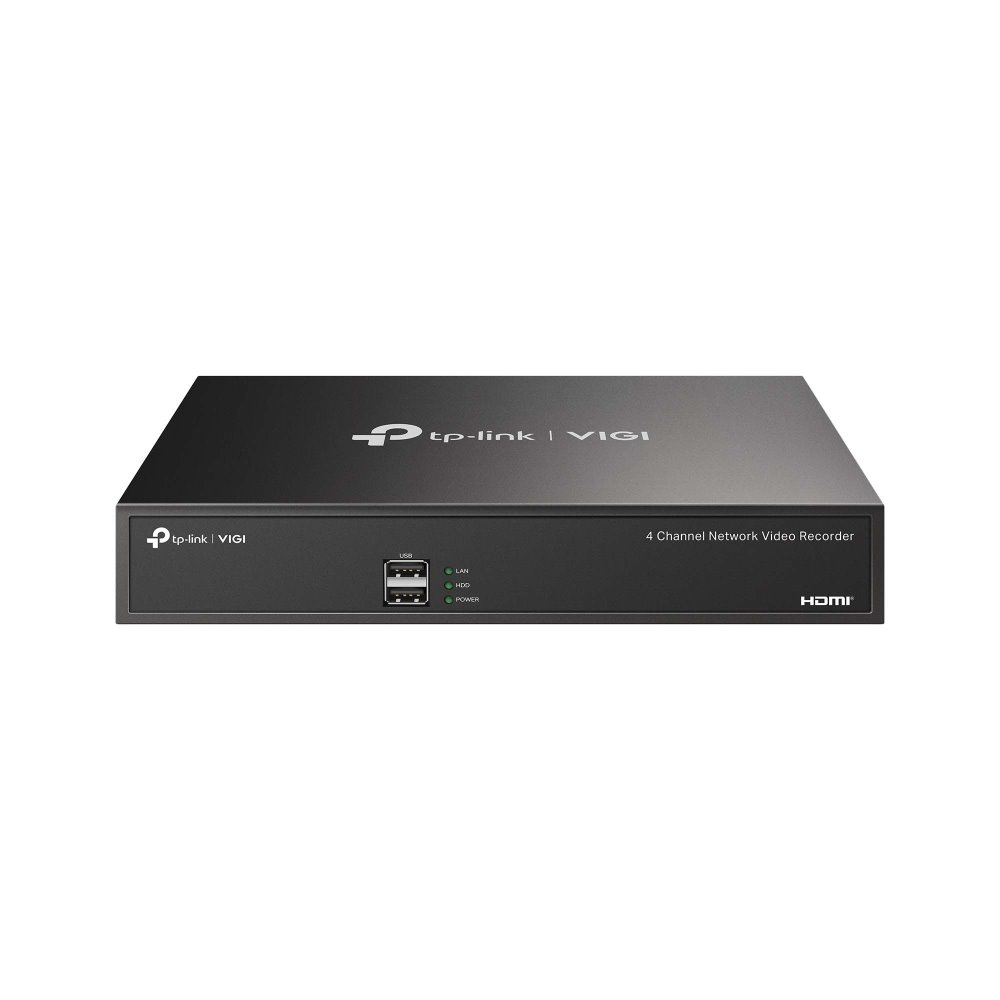

VIGI NVR1004H VIGI 4kanálový sieťový videorekordér 4-kanálový živý náhľad a 4K HDMI video výstup Dekódovanie: 2-kanály @ 8 MP / 4-kanály @ 4 MP 4-kanálové synchrónne prehrávanie† 80 Mb/s prichádzajúci šírku pásma a 60 Mb/s odchádzajúcu šírku pásma 1 SATA rozhranie (až 10 TB) * Komprese H.265+ Súčasný výstup HDMI a VGA Vzdálené monitorovanie

Video and Audio
IP Video Input 4-Channel
Incoming Bandwidth 80 Mbps
Outgoing Bandwidth 60 Mbps
HDMI Output Resolution 1 Channel, Resolution: 3840 ×2160/30Hz, 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
VGA Output Resolution 1 Channel, Resolution: 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
Video Output Mode HDMI/VGA Simultaneous Output
Multi-View Display 1/4
DECODING
Audio Compression G.711A/G.711U/G.726
Video Compression H.265+/H.265/ H.264+/H.264
Record Resolution 8 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
Synchronous Playback 4-Channel
Capability 2-ch @ 8MP, 4-ch @ 4MP
Record Management
Record Mode • Manual Recording
• Scheduling Recording
• Motion Detection Recording
Playback Mode • Instant Playback
• Regular Playback
• Tag Playback
• Event Playback
Backup Mode • Regular Backup
• Video Clip Backup
Playback Function • Play
• Pause
• Stop
• Fast Forward
• Fast Backward
• Play By Frame
• Full Screen
• Video Clip
• Export Clip
• Digital Zoom
• Lock Recording
• Audio On/Off
NETWORK
Protocol UPnP (Plug and Play), NTP (Network Timing), SMTP, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP
Mobile Phone Access Android, iOS
Web Browser Chrome (57+), Firefox (52+), Edge (91+)
Interoperability ONVIF, CGI
External Interface
Network Interface 1, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
USB Interface 2× USB 2.0
Audio Interface 1-ch RCA Input; 1-ch RCA Output
Alarm In/Out N/A
Serial Interface N/A
Power 1× DC Jack
Reset Button 1
Speaker N/A
eSATA N/A
HDMI 1
VGA 1
HARD DISK
SATA 1 SATA Interface
Capacity Up to 10 TB Capacity for Each HDD*
Alarm
General Alarm • Motion Detection
• Video Tampering
• Scene Change Detection
• Line-Crossing Detection
• Intrusion Detection
• Region Entering Detection
• Region Exiting Detection
• Loitering Detection
• Object Abandoned/Removal Detection
• Vehicle Detection
• Human Detection
• Abnormal Sound Detection
• Smart Frame
Anomaly Alarm • Video Loss
• Offline and IP Conflict
• Disk Exception
• Login Exception
Alarm Linkage • Recording
• White Light Alarm
• Buzzer
• Log
• Audible Alarm
GENERAL
Storage Temperature -40–70 °C
Storage Humidity 10%~90% RH Non-Condensing
Package Contents • VIGI Network Video Recorder
• Power Adapter
• HDD Screws
• Mouse
• Rubber Feet
• Quick Installation Guide
Working Temperature • NVR: -10–55 °C
• Power Adapter: 0–40 °C
Working Humidity 10%~90% RH Non-Condensing
Dimensions( W X D X H ) 246.2 × 148.2 × 45 mm
External Power Supply DC 12V/1.5A
Net Weight 0.59 kg
Gross Weight 0.95 kg
Power Consumption 4.25 W (Without Disk)
Certifications CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI
