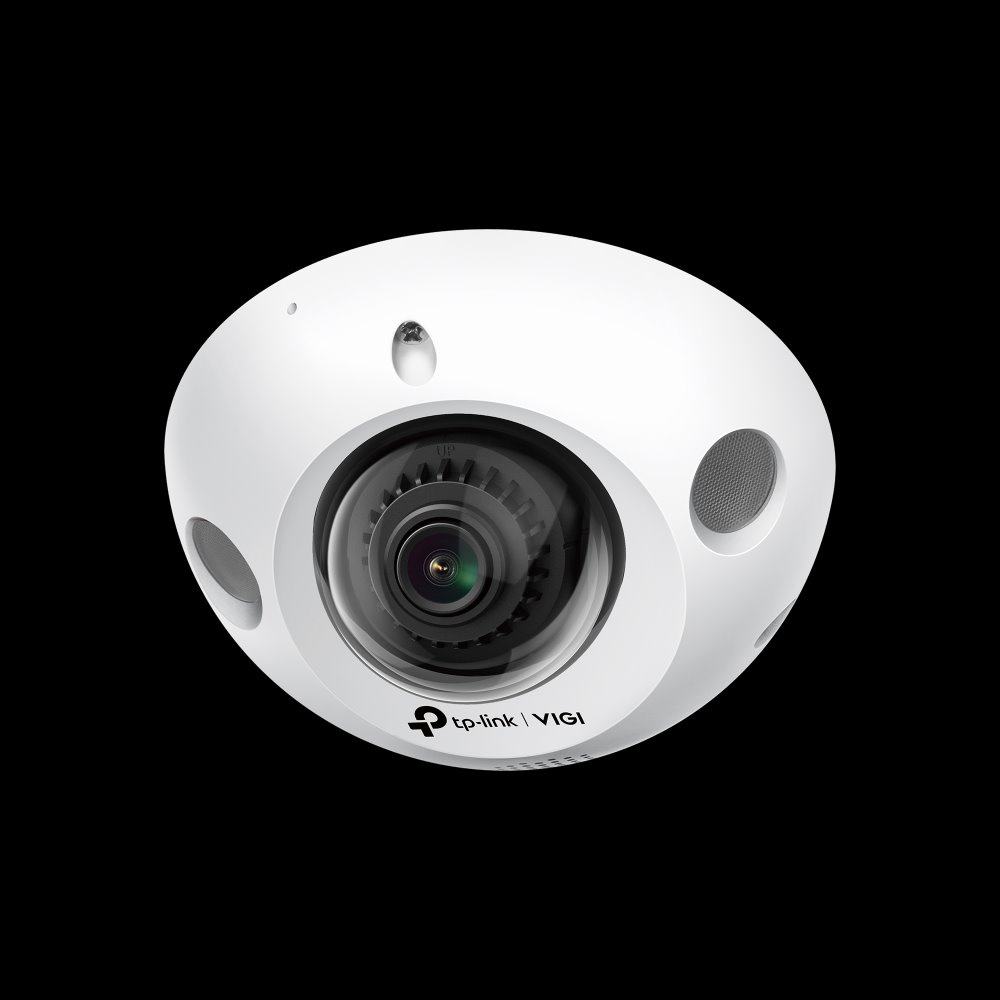

VIGI C230I Mini
VIGI 3 MPx vnútorné IR mini dome sieťová kamera
Veľmi vysoké rozlíšenie 3 MPx: Kamera VIGI C230I Mini má rozlíšenie 3 MPx - viac ako dosť pixelov na zachytenie niektorých diskrétnejších detailov.
Rozlíšenie osôb a vozidiel: Rozlišuje ľudí a vozidlá od ostatných objektov, takže dostávate presnejšie oznámenie o udalostiach.
Inteligentná detekcia: Prijímajte oznámenia a kontrolujte kanály, keď niekto prekročí hranicu, vstúpi do nastavenej oblasti, prekáža kamere alebo odstráni/opustí objekty.
Malá, ale kompaktná a so širokým výhľadom: Kamera VIGI C230I Mini s malými kompaktnými rozmermi a ultra širokouhlým objektívom 2,8 mm je ideálna pre chodby, výťahy, malé sklady a obchody, kde je obmedzený priestor a je vyžadovaný široký záber.
Odolnosť proti vandalizmu IK08: Kamera VIGI je vybavená kopulovitým krytom odolným proti vandalom, takže odoláva poškodeniu a poskytuje spoľahlivejšiu bezpečnostnú ochranu na dôležitých miestach, ako sú bankomaty, chodby a pokladne.
H.265+: Kamery prenášajú komprimovaný krištáľovo čistý obraz bez toho, aby využívali ďalšiu šírku pásma, a šetria tak miesto na disku, znižujú zaťaženie siete a náklady na monitorovanie – to všetko bez zníženia kvality obrazu.
Inteligentné vylepšenia videa: Profesionálne technológie VIGI spracovávajú videá a výrazne zlepšujú ich kvalitu, ktorá je pre vaše sledovanie zásadná, vrátane Smart IR, WDR, 3D DNR a Night Vision.
Koridor režim pre chodby: Umožňuje zmeniť pomer strán obrazu z 16: 9 na 9: 16 a pomáha tak sledovať dlhé a úzke oblasti.

CAMERA
Image Sensor 1/2.8” Progressive Scan CMOS
Shutter Speed 1/3 to 1/10000 s
Slow Shutter Yes
Minimum Illumination Color: 0.1 Lux; 0 Lux with IR
Day/Night Mechanism IR Cut Filter
Day/Night Switch Unified/ Scheduled/ Auto
LENS
Type Fixed Focal Lens
Focal Length 2.8 mm
Aperture F1.6
FOV 2.8mm: Horizontal FOV: 106.9°, Vertical FOV:56.9°, Diagonal FOV: 127.9°
Lens Mount M12
DORI Distance 2.8mm ;
Detect: 49 m (161 ft)
Observe: 20 m (67 ft)
Recognize: 10 m (32 ft)
Identify: 5 m (16 ft)
ANGLE ADJUSTMENT (MANUAL)
Range Pan: -30° to 30°
Tilt: 0° to 85°
Rotate: -15° to 15°
ILLUMINATOR
IR LED Quantity: 2
Range: 30m
Wavelength: 850nm
White LED N/A
Illuminator On/Off Control Auto/Scheduled/Always on/Always off
VIDEO
Max. Resolution 2304 × 1296
Main Stream Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution: 2304x1296, 2048x1280, 1920x1080,1280x720

Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-Stream Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution: 704x576, 640x480, 352x288, 320x240

Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate Control CBR, VBR
Video Compression Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
H.264 Type Main Profile/High Profile
H.264+ Main Stream Supported
H.265 Type Main Profile
H.265+ Main Stream Supported
Video Bit Rate Main Stream: 256 Kbps to 4 Mbps
Sub-Stream: 64 Kbps to 512 Kbps
Image Settings Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, HLC Adjustable by Client Software, Rotation (90°/270°)
Image Enhancement BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range DWDR
SNR ? 52 dB
Image Parameters Switch Yes
Privacy Mask Up to 4 Masks
ROI 1 Region
OSD Setting Yes
AUDIO
Audio Communication Two-Way Audio
Audio Input Yes
Audio Output Yes
Audio Compression Yes
Audio Sampling Rate 8KHz
Environment Noise Filtering Yes
Audio Bit Rate 64 Kbps(G.711 alaw)
NETWORK
Protocol TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS,
RTSP, NTP, UPnP UDP, SSL/TLS
ONVIF Yes
API ONVIF
Simultaneous Live View 3 Main Streams & 3 Sub-Streams
Client VIGI App, VIGI Security Manager, VIGI NVR, Web
Web Browser Open Network Video Interface (Profile S)
Cloud Yes
Security Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
ALARM AND EVENT MANAGEMENT
Smart Event Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
Basic Event Motion Detection, Video Tampering Detection, Exception ( Illegal Login)
Alarm Linkage Memory Card Video Recording, Message Push, Audible Warning
Linkage Method N/A
Output Notification Message Push
INTERFACES
Network Interface 1 RJ45 10/100M Self-Adaptive Ethernet Port
Alarm N/A
Reset Button Yes
Power DC Power Port
On-board Storage Built-In Memory Card Slot, Support MicroSD Card, Up to 256 GB
Built-in Microphone Yes; Records Anything Going on within a 15-ft Radius of the Camera
Built-in Speaker Yes
Audio N/A
GENERAL
Operating Temperature -30–60 °C
Storage Temperature -40–60 °C
Operating Humidity 95% or Less (Non-Condensing)
Storage Humidity 95% or Less (Non-Condensing)
Package Contents VIGI Network Camera
Quick Start Guide
Mounting Accessories
Mounting Template
Material Plastic
Net Weight 0.23 kg
Gross Weight 0.41 kg
Power Supply 12V DC ± 5%, 5.5mm Coaxial Power Plug
PoE (802.3af/at, class 0)
Protection IK08
Product Dimensions (L x W x H) 114× 58× 114 mm
Certifications CE/VCCI/BSMI/KC/ONVIF
