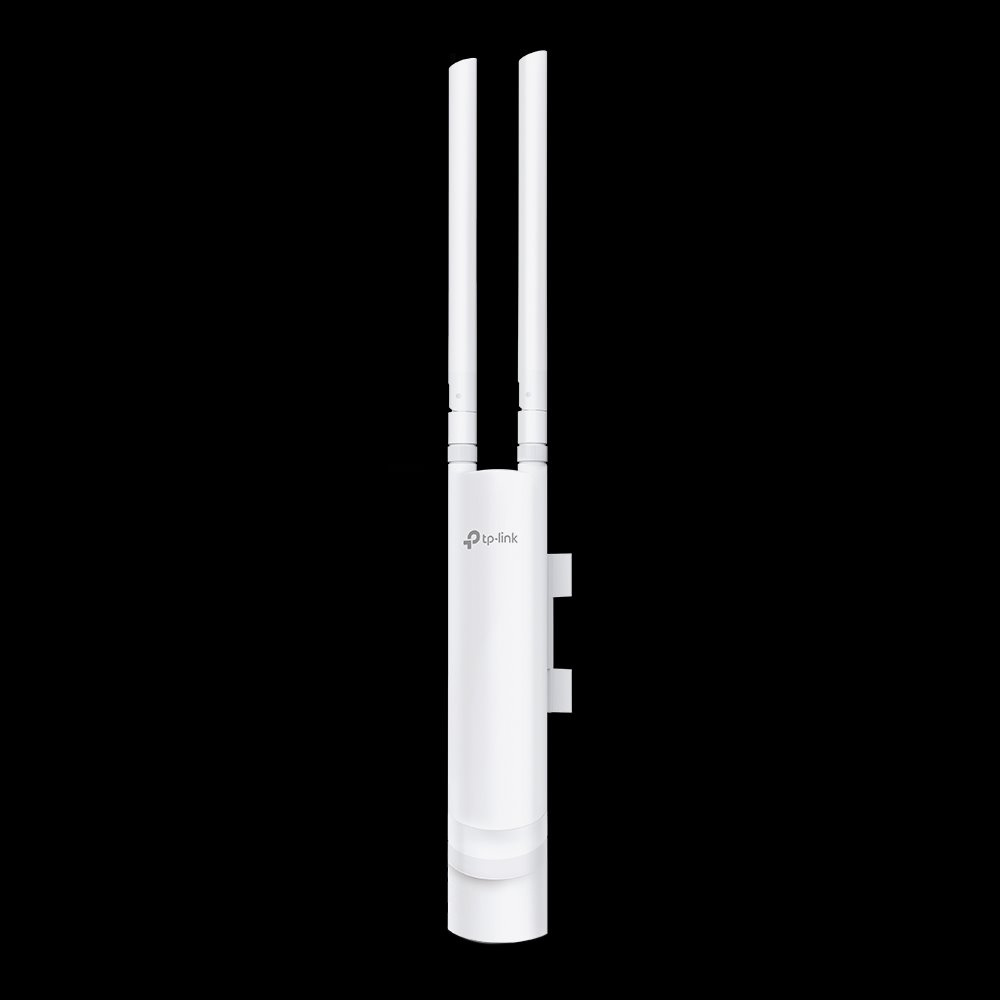

EAP113-Outdoor
300Mbit/s bezdrôtový vonkajší N Access point
Ideálne pre vonkajšie prostredie: IP65 kryt odolný poveternostným vplyvom pre vonkajšie Wi-Fi aplikácie.
Rýchla Wi-Fi: Až 300 Mb/s v pásme 2,4 GHz s 2×2 MIMO.†
Pokrytie s dlhým dosahom: Vyhradený silný zosilňovač výkonu a profesionálnej antény.
Integrácia do Omada SDN: Centralizovaná cloudová správa a inteligentný monitoring.
Centralizovaná správa: Cloudový prístup a aplikácia Omada pre pohodlnú a jednoduchú správu odkiaľkoľvek.*
PoE podpora: Podporuje štandard 802.3af aj pasívne 48V PoE pre flexibilnú inštaláciu (injektor nie je súčasťou balenia)
Bezpečná sieť pre hostí: Viac metód overovania (Captive portál, SMS, voucher atď.) a pokročilé technológie bezdrôtového zabezpečenia.*

HARDWARE FEATURES
Interface 1× Fast Ethernet (RJ-45) Port (Support 48V Passive PoE/802.3af PoE)
Button Reset
Power Supply 48V Passive PoE (+4,5pins; -7,8pins);
802.3af PoE
Power Consumption 4.11 W
Dimensions ( W x D x H ) 8.5 × 1.8 × 1.5 in (214.9 × 46 × 37.7 mm)
Antenna Type 2× 3 dBi External Omni waterproof
Weatherproof Enclosure IP65
Mounting Pole / Wall Mounting (Kits included)
WIRELESS FEATURES
Wireless Client Capacity 100+**
Wireless Standards IEEE 802.11n/g/b
Frequency 2.4 GHz
Signal Rate • 11n: Up to 300 Mbps (dynamic)
• 11g: Up to 54 Mbps (dynamic)
• 11b: Up to 11 Mbps (dynamic)
Transmit Power • CE: ?20 dBm (EIRP)
• FCC: ?22 dBm
Wireless Functions • Multiple SSIDs(Up to 8 SSIDs)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• Load Balance
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client
Wireless Security • Captive Portal Authentication
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support
• 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK
MANAGEMENT
Omada App Yes
Centralized Management • Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
Cloud Access Yes. Requiring the use of OC300, OC200, or Omada Software Controller.
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1, v2c
System Logging Local/Remote Syslog Local/Remote Syslog
SSH Yes
Web-based Management HTTP/HTTPS
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
OTHERS
Certification CE, FCC, RoHS
Package Contents • 300Mbps Wireless N Outdoor Access Point, EAP113-Outdoor
• Mounting Kits
• Waterproof Rubber Insert
• Waterproof Antennas
• Installation Guide
System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10, Windows 11, Linux
Environment • Operating Temperature: -30–65 ? (-22–149 ?)
• Storage Temperature: -40–70 ? (-40–158 ?)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
