TP-LINK "16-Port 10/100Mbps + 2-Port Gigabit Rackmount Switch with 16-Port PoE+PORT: 16× 10/100 Mbps PoE+ Ports, 2× Gig
Popis a parametre
TP-LINK "16-Port 10/100Mbps + 2-Port Gigabit Rackmount Switch with 16-Port PoE+PORT: 16× 10/100 Mbps PoE+ Ports, 2× Gig

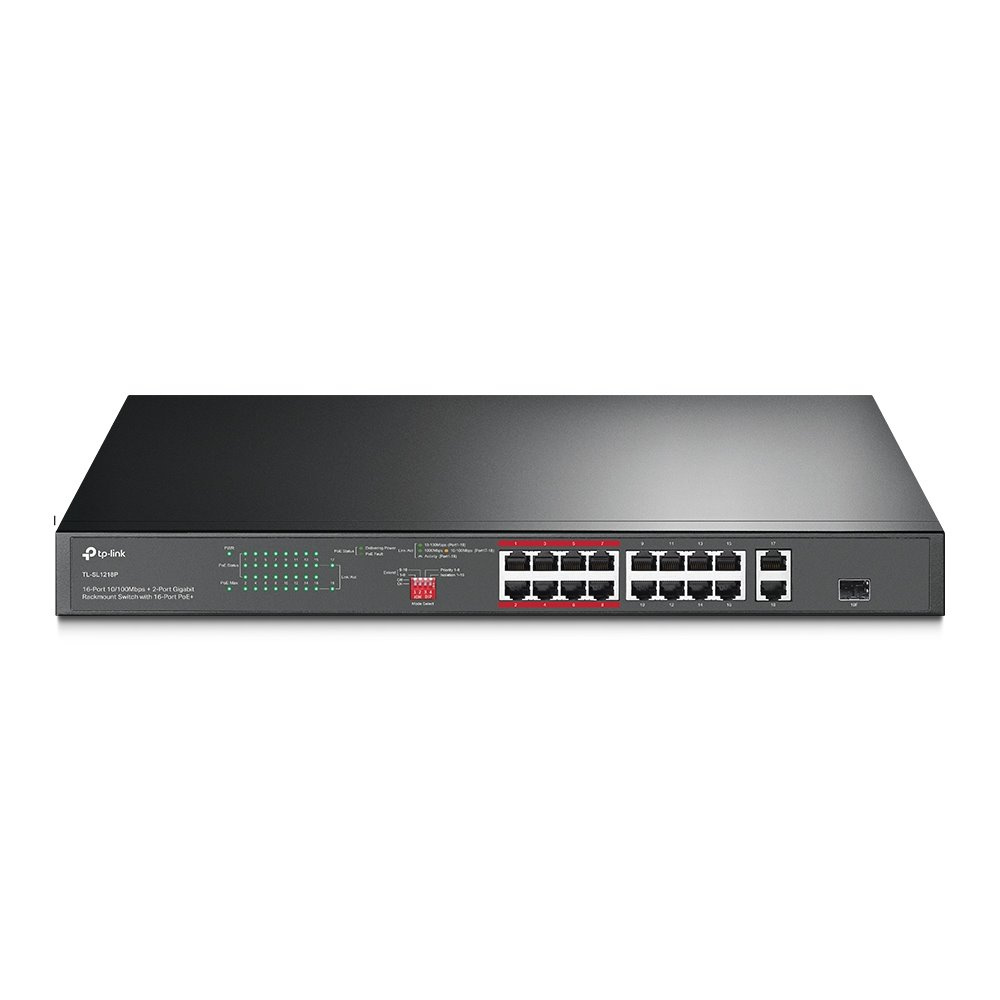

TL-SL1218P
16portový 10/100 Mb/s + 2portový gigabitový switch do racku so 16 portami PoE+
16 portov RJ45 PoE + 10/100Mb/s, 2 gigabitové porty RJ45 a 1 kombinovaný gigabitový SFP slot.
Vysoký výkon PoE napájania, až 30 W pre každý PoE port a 150 W pre všetky PoE porty*
Prenos dát a napájanie až do vzdialenosti 250 m v režime predĺženia špeciálne navrhnutého pre dohľadový systém.**
Prioritný režim pre porty 1-8, ktorý zaručuje kvalitu citlivých aplikácií, ako je napríklad video monitor.
Režim izolácie umožňuje oddelenie prevádzky klienta jedným kliknutím na vyššie zabezpečenie a výkon.
Jednoduché použitie bez nutnosti konfigurácie a inštalácie.
HARDWARE FEATURES
Interface • 16× PoE+ 10/100 Mbps RJ45 Ports
• 2× 10/100/1000 Mbps RJ45 Ports
• 1× Combo Gigabit SFP Slot
Network Media • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100? STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100? STP (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
• EIA/TIA-568 100? STP (maximum 100m)
• 1000BASE-X MMF, SMF
Fan Quantity 2 Fans
Physical Security Lock Yes
Power Supply 100–240V AC, 50/60 Hz
PoE+ Ports(RJ45) • Standard: 802.3at/802.3af compliant
• PoE Ports: Ports 1–16
• PoE Power Budget: 150 W
Dimensions ( W x D x H ) 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)
Max Power Consumption • 12.71 W (220/50Hz. no PD connected)
• 172.8 W (220/50Hz. with 150 W PD connected)
Max Heat Dissipation • 43.34 BTU/h (no PD connected)
• 589.25 BTU/h (with 150 W PD connected)
PERFORMANCE
Switching Capacity 7.2 Gbps
Packet Forwarding Rate 5.36 Mpps
MAC Address Table 8K
Jumbo Frame 10 KB
SOFTWARE FEATURES
Advanced Features • Compatible With IEEE 802.3at/af Compliant PDs
• Extend Mode (Up to 250m PoE power supply and data transmission)
• Priority Mode
• Isolation Mode
• Mac Address Auto-Learning And Auto-Aging
• IEEE802.3x Flow Control
Transmission Method Store-And-Forward
OTHERS
Certification CE, FCC, RoHS
Package Contents • TL-SL1218P
• Power Cable
• Installation Guide
• Two mounting brackets and the fittings
Environment • Operating Temperature: 0–50 °C (32–122 °F)
• Storage Temperature: -40–70 °C (-40–158 °F)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
16portový 10/100 Mb/s + 2portový gigabitový switch do racku so 16 portami PoE+
16 portov RJ45 PoE + 10/100Mb/s, 2 gigabitové porty RJ45 a 1 kombinovaný gigabitový SFP slot.
Vysoký výkon PoE napájania, až 30 W pre každý PoE port a 150 W pre všetky PoE porty*
Prenos dát a napájanie až do vzdialenosti 250 m v režime predĺženia špeciálne navrhnutého pre dohľadový systém.**
Prioritný režim pre porty 1-8, ktorý zaručuje kvalitu citlivých aplikácií, ako je napríklad video monitor.
Režim izolácie umožňuje oddelenie prevádzky klienta jedným kliknutím na vyššie zabezpečenie a výkon.
Jednoduché použitie bez nutnosti konfigurácie a inštalácie.
HARDWARE FEATURES
Interface • 16× PoE+ 10/100 Mbps RJ45 Ports
• 2× 10/100/1000 Mbps RJ45 Ports
• 1× Combo Gigabit SFP Slot
Network Media • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100? STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100? STP (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
• EIA/TIA-568 100? STP (maximum 100m)
• 1000BASE-X MMF, SMF
Fan Quantity 2 Fans
Physical Security Lock Yes
Power Supply 100–240V AC, 50/60 Hz
PoE+ Ports(RJ45) • Standard: 802.3at/802.3af compliant
• PoE Ports: Ports 1–16
• PoE Power Budget: 150 W
Dimensions ( W x D x H ) 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)
Max Power Consumption • 12.71 W (220/50Hz. no PD connected)
• 172.8 W (220/50Hz. with 150 W PD connected)
Max Heat Dissipation • 43.34 BTU/h (no PD connected)
• 589.25 BTU/h (with 150 W PD connected)
PERFORMANCE
Switching Capacity 7.2 Gbps
Packet Forwarding Rate 5.36 Mpps
MAC Address Table 8K
Jumbo Frame 10 KB
SOFTWARE FEATURES
Advanced Features • Compatible With IEEE 802.3at/af Compliant PDs
• Extend Mode (Up to 250m PoE power supply and data transmission)
• Priority Mode
• Isolation Mode
• Mac Address Auto-Learning And Auto-Aging
• IEEE802.3x Flow Control
Transmission Method Store-And-Forward
OTHERS
Certification CE, FCC, RoHS
Package Contents • TL-SL1218P
• Power Cable
• Installation Guide
• Two mounting brackets and the fittings
Environment • Operating Temperature: 0–50 °C (32–122 °F)
• Storage Temperature: -40–70 °C (-40–158 °F)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
