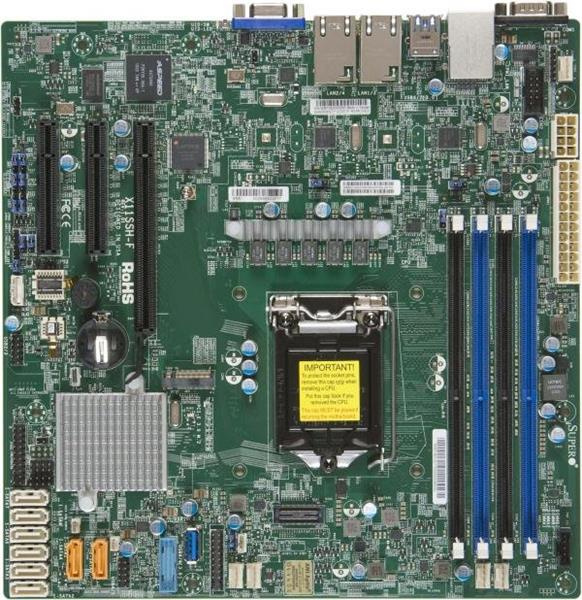

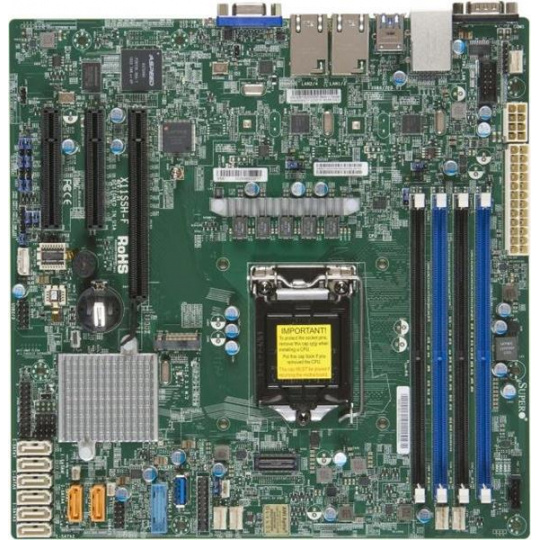

Supermicro X11SSH-F-O 1xLGA1151, iC236,DDR4,8xSATA3,2xGBe Lan,PCIe 3.0,PCIe 3.0 (1 x8, 1 x8 (in x16), 1 x4 (in x8)) mATX
Popis a parametre
Supermicro X11SSH-F-O 1xLGA1151, iC236,DDR4,8xSATA3,2xGBe Lan,PCIe 3.0,PCIe 3.0 (1 x8, 1 x8 (in x16), 1 x4 (in x8)) mATX
Main Board Server - Processor Chipset: Intel C236 CPU Socket Standard: Socket 1151 Supports Central Processor Unit: Intel Xeon E3-1200v5 Series Intel Xeon E3-1200v6 Series CPU Maximum Quantity Supports: 1 Main Board Server - Memory Memory Type: DDR4 SDRAM Provides Error Checking Method: Non-ECC; ECC Memory Speed: 2133MHz(PC4-17000) 2400MHz(PC4-19200) 1600MHz(PC4-12800) 1866MHz(PC4-14900) Memory Form Factor: DIMM 288-pin Maximum Installable System Memory Storage Capacity: 64 GB Memory Slot Total Quantity: 4 Memory Features: Unbuffered Controller Integrated: Storage Controller: Supports: Level 0, Level 1, Level 10, Level 5 SATA III-600 (8) Storage Controller: PCI-Express 3.0 x2 (1 x M.2 (Key M)) Main Board Server - Video Output Video Controller Integrated: yes Video Chipset: Aspeed AST2400 Main Board Server - Networking Specifications LAN Integrated: yes LAN Chipset: Intel i210AT Data Link Protocol Supports: Gigabit Ethernet/Fast Ethernet/Ethernet Slot Provided PCI Express 3.0 x8: 2 PCI Express 3.0 x4: 1 Interface Provided LAN: 2 (RJ-45) USB 3.0: 2 (USB Type A) USB 2.0: 2 (USB Type A) Serial: 1 VGA: 1 (15-pin DB) Main Board Server - Mainboard Features BIOS Type: AMI BIOS Features: DMI 2.3 Support Hardware BIOS virus protection PnP Support SMBIOS 3.0 Support USB Keyboard support ACPI 5.0 Support UEFI 2.3.1 128Mb SPI Flash EEPROM PCI 3.0 Wake up/Sleep: RTC (real time clock) Wake up Hardware Monitoring: CPU Voltage System Temperature System Voltage Mainboard Features: Supports Triple Monitor Main Board Server - Environment Maximum Operating Ambient Temperature: 50 °C Minimum Operating Ambient Temperature: 0 °C Maximum Operating Humidity: 90 % Minimum Operating Humidity: 8 % Main Board Server - Dimensions&Weight Form Factor: Micro ATX Height (mm): 223.8 mm Width (mm): 223.8 mm Main Board Server - Miscellaneous Cable Included: 2 x SATA Data Cables Included Accessories: I/O Shield Warranty and Logistic Warranty Warranty Products Returnable: Yes Warranty Term (month): 12 month(s) Warranty Validation Criteria: Serial Number Logistic Pack Weight Brutto (kg): 2.1 kg Pack Weight Netto (kg): 0 kg Pieces in pack: 1 Retail Packaging Net Weight Carton: 0 kg Retail Packaging Net Weight Plastic: 0 kg Packs in Box: 1 Package Type: Retail
Supermicro X11SSH-F-O 1xLGA1151, iC236,DDR4,8xSATA3,2xGBe Lan,PCIe 3.0,PCIe 3.0 (1 x8, 1 x8 (in x16), 1 x4 (in x8)) mATX
