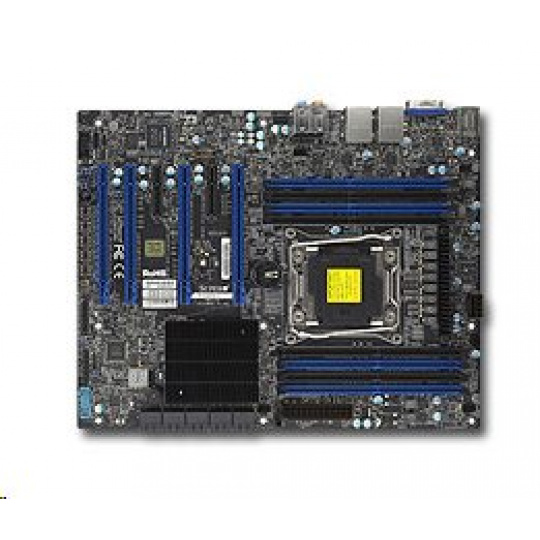

Popis produktu: Xeon CPU (LGA2011-3) i7 CPU (LGA2011-3) - maxinum 64GB DDR4 ECC/non-ECC UDIMM (available with Core i7 only) 1. Single socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v3, E5-1600 v3, and 4th gen. Core i7 2. Intel® C612 chipset 3. Up to 512GB ECC DDR4 2133MHz LRDIMM or 64GB ECC/non-ECC UDIMM (available with Core i7 only); 8x DIMM sockets 4. 4 PCI-E 3.0 x16 (run at 16/16/NA/8 or 16/8/8/8), 2 PCI-E 2.0 x1 (in x4) 5. Intel® i210-AT Dual port GbE LAN Shared with IPMI 6. 10x SATA3 (6Gbps) 7. 1x VGA (for IPMI only), 1x COM, 1x TPM 8. 8x USB 3.0 ports (6 rear + 2 via header) 9. HD Audio 7.1 channel connector by Realtek ALC1150 Physical Stats Form Factor ATX Dimensions 12" x 9.6", (30.5cm x 24.4cm) Processor CPU Intel® Xeon® processor E5-2600/1600 v3 family or Intel® 4th gen. Core™ i7 series (up to 160W TDP **) Single Socket R3 (LGA 2011) Core / Cache Up to 18 Cores / Up to 45MB Cache Note ** Motherboard supports this maximum TDP. Please verify your system can thermally support System Memory Memory Capacity 8x 288-pin DDR4 DIMM slots Up to 512GB DDR4 ECC LRDIMM Up to 256GB DDR4 ECC RDIMM Up to 64GB DDR4 ECC/non-ECC UDIMM (available with Core i7 only) Memory Type 2133/1866/1600/1333MHz ECC DDR4 SDRAM 72-bit, 288-pin (RDIMM/LRDIMM) / 284-pin (UDIMM) gold-plated DIMMs DIMM Sizes RDIMM: 32GB, 16GB, 8GB, 4GB Memory Voltage 1.2 V Error Detection Corrects single-bit errors Detects double-bit errors (using ECC memory) On-Board Devices Chipset Intel C612 Express chipset SATA SATA3 (6Gbps) via C612 controller RAID 0, 1, 5, 10 support Network Controllers Intel® i210-AT Dual Port Gigabit Ethernet Share with IPMI Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output Audio RealTek ALC1150 High Definition Audio Input / Output SATA 10x SATA3 (6Gbps) ports LAN 2x RJ45 Gigabit Ethernet LAN ports Shared with IPMI USB 8x USB 3.0 ports (6 rear + 2 via header) 4 of 8 USB 3.0 ports upgradable to 4x USB 3.1 (10Gbps) (2 rear + 2 via header) (This upgrade is BOM option for OEM only) Audio 7.1 HD Jacks Keyboard/Mouse 1 PS/2 Keyboard/Mouse port Serial Port / Header 1x header TPM 1x TPM 1.2 20-pin Header OS Compatibility • Please reference the OS Compatibility Chart for details Chassis (Optimized for X10SRA-F ) 4U / Tower Chassis: SC743TQ-1200B-SQ Important Chassis Notes To support the new generation Intel® Xeon® processor-based motherboards, Revision K chassis is recommended. Please talk to your sales representative for details. Expansion Slots PCI-Express 4x PCI-E 3.0 x16 slots (runs at 16/16/NA/8 or 16/8/8/8) 2x PCI-E 2.0 x1 (in x4) slots PCI-E slot #1 (x4) and slot #4 (x16) are disabled when an Intel Core i7-5820K is installed System BIOS BIOS Type 128Mb SPI Flash EEPROM with AMI BIOS BIOS Features Plug and Play (PnP) APM 1.2 DMI 2.3 PCI 2.3 ACPI 1.0 / 2.0 / 3.0 / 4.0 USB Keyboard support Hardware BIOS Virus protection SMBIOS 2.7.1 UEFI 2.3.1 RTC (Real Time Clock) Wakeup Management Software IPMI 2.0 with KVM support SuperDoctor® 5 SuperDoctor® III Watch Dog Power Configurations ACPI Power Management Keyboard Wakeup from Soft-Off CPU Fan auto-off in sleep mode Power-on mode for AC power recovery PC Health Monitoring Voltage +12V, +3.3V, +5V, 1.05 (PCH), 1.2V (VDIMM), 3.3V standby, Chassis intrusion header, Monitors CPU voltages, VBAT FAN Total of 5 fan headers supporting up to 5 fans 5 fans with tachometer status monitoring Status monitor for speed control Status monitor for on/off control Low noise fan speed control Pulse Width Modulated (PWM) fan connectors Temperature Monitoring for CPU and chassis environment CPU thermal trip support I2C temperature sensing logic Thermal Monitor 2 (TM2) support PECI LED CPU / System Overheat LED Suspend static indicator LED Other Features Chassis intrusion detection Chassis intrusion header Chipkill support RoHS
