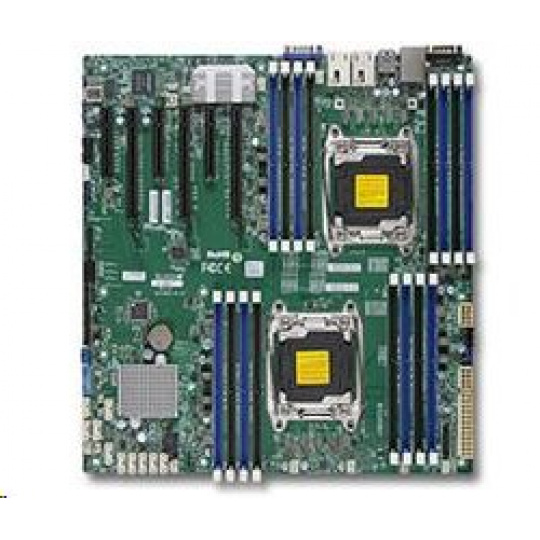

PPopis produktu: Product SKUs MBD-X10DRi -B X10DRi (Bulk Pack) Physical Stats Form Factor E-ATX Dimensions 12" x 13" (30.5cm x 33.0cm) Processor/Cache CPU Intel® Xeon® processor E5-2600 v3 family (up to 145W TDP **) Dual Socket R3 (LGA 2011) Cores / Cache Up to 18 Cores / Up to 45MB Cache System Bus QPI up to 9.6 GT/s Note ** Motherboard supports this maximum TDP. Please verify your system can thermally support. System Memory Memory Capacity 16x 288-pin DDR4 DIMM sockets Up to 1TB ECC LRDIMM, 512GB ECC RDIMM Memory Type 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit DIMM Sizes RDIMM: 32GB, 16GB, 8GB, 4GB LRDIMM: 64GB, 32GB Memory Voltage 1.2 V Error Detection Corrects single-bit errors Detects double-bit errors (using ECC memory) On-Board Devices Chipset Intel® C612 Express chipset SATA SATA3 (6Gbps); RAID 0, 1, 5, 10 IPMI Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2400 BMC Network Controllers Intel® i350 Dual Port Gigabit Ethernet Virtual Machine Device Queues reduce I/O overhead Supports 10Base-T, 100BASE-TX, and 1000BASE-T, RJ45 output Video ASPEED AST2400 BMC Input / Output SATA 10x SATA3 (6Gbps) ports LAN 2x RJ45 Gigabit Ethernet LAN ports 1x RJ45 Dedicated IPMI LAN port USB 5x USB 3.0 ports (2 rear + 2 via header + 1 Type A) 6x USB 2.0 ports (2 rear + 4 via headers) Video 1x VGA port Serial Port / Header 2x Fast UART 16550 serial 2x COM Ports (1 rear, 1 header) DOM 2x SuperDOM (Disk on Module) ports TPM 1x TPM 1.2 20-pin Header Expansion Slots PCI-Express 3 PCI-E 3.0 x16 3 PCI-E 3.0 x8 System BIOS BIOS Type 128Mb SPI Flash EEPROM with AMI BIOS BIOS Features Plug and Play (PnP) APM 1.2 PCI 2.3 ACPI 1.0 / 2.0 / 3.0 / 4.0 USB Keyboard support SMBIOS 2.7.1 UEFI 2.3.1 Management Software Intel® Node Manager 3.0 NMI SPM SUM SuperDoctor® 5 Watch Dog Power Configurations ACPI / APM Power Management Power-on mode for AC power recovery PC Health Monitoring Voltage Monitors for CPU Cores, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory Voltages. 5 Phase-switching voltage regulator FAN 8x 4-pin fan headers (up to 8 fans) 8x fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors Temperature Monitoring for CPU and chassis environment CPU thermal trip support Thermal Control for 8x Fan Connectors Thermal Monitor 2 (TM2) support PECI LED CPU / System Overheat LED Suspend static indicator LED UID/Remote UID Other Features Chassis intrusion detection Chassis intrusion header SDDC Support RoHS Operating Environment Operating Temperature Range 10°C - 35°C (50°F - 95°F) Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F) Operating Relative Humidity Range 8% - 90% (non-condensing) Non-Operating Relative Humidity Range 5% - 95% (non-condensing)
