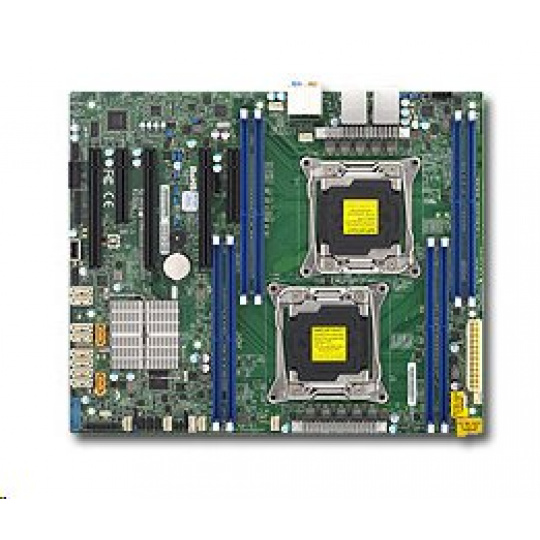

Key Features 1. Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v3 family; QPI up to 9.6GT/s 2. Intel® C612 chipset 3. Up to 512GB LRDIMM / 256GB RDIMM ECC DDR4 2133MHz; 8x DIMM slots 4. 2x PCI-E 3.0 x16, 1x PCI-E 3.0 x8 (in x16), 1x PCI-E 3.0 x4 (in x8), 1x PCI-E 2.0 x4 (in x8) slot 5. Intel® i210 Dual port GbE LAN 6. 10x SATA3 (6Gbps) ports w/ Intel C612 controller; RAID 0, 1, 5, 10 7. 6x USB 3.0 (4 rear, 2 via header) 3x USB 2.0 (2 via header, 1 Type A) 8. 7.1 HD Audio with optical S/PDIF 9. Thunderbolt Add-On Card sup Product SKUs MBD-X10DAL-i -B X10DAL-i (Bulk Pack) MBD-X10DAL-i -O X10DAL-i (Retail Pack) Physical Stats Form Factor ATX Dimensions 12" x 10" (30.5cm x 25.4cm) Processor/Cache CPU Intel® Xeon® processor E5-2600 v3 family (up to 160W TDP **) Dual Socket R3 (LGA 2011) Cores / Cache Up to 18 Cores / Up to 45MB Cache System Bus QPI up to 9.6 GT/s Note ** Motherboard supports this maximum TDP. Please verify your system can thermally support. System Memory Memory Capacity 8x 288-pin DDR4 DIMM slots Up to 512GB ECC LRDIMM, 256GB ECC RDIMM Memory Type 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit DIMM Sizes RDIMM: 32GB, 16GB, 8GB, 4GB LRDIMM: 64GB, 32GB Memory Voltage 1.2 V Error Detection Corrects single-bit errors On-Board Devices Chipset Intel® C612 chipset AHCI SATA SATA3 (6Gbps); RAID 0, 1, 5, 10 SCU SATA SATA3 (6Gbps); RAID 0, 1, 5, 10 Network Controllers Intel® i210 Dual Port Gigabit Ethernet Supports 10Base-T, 100BASE-TX, and 1000BASE-T, RJ45 output Audio RealTek ALC888 7.1 High Definition Audio with S/PDIF header Input / Output SATA 10x SATA3 (6Gbps) ports LAN 2x RJ45 Gigabit Ethernet LAN ports USB 6x USB 3.0 ports (4 rear + 2 via header) 3x USB 2.0 ports (2 via header + 1 Type A) Audio 7.1 HD Audio with optical S/PDIF Serial Port / Header 1x COM Port (1 header) DOM 2x SuperDOM (Disk on Module) ports TPM 1x TPM 1.2 20-pin Header Chassis (Optimized for X10DAL-i ) 2U Chassis: SC825TQ-600LPB SC213LT-600LPB Mid/Mini Tower Chassis: SC733TQ-665B SC732D4-500B 4U / Tower Chassis: SC743TQ-865B-SQ SC743T-665B Important Chassis Notes To support the new generation Intel® Xeon® processor-based motherboards, Revision M chassis is recommended. Please talk to your sales representative for details. Expansion Slots PCI-Express 2x PCI-E 3.0 x16 1x PCI-E 3.0 x8 (in x16) 1x PCI-E 3.0 x4 (in x8) 1x PCI-E 2.0 x4 (in x8) System BIOS BIOS Type 128Mb SPI Flash EEPROM with AMI BIOS BIOS Features Plug and Play (PnP) PCI 2.3 ACPI 1.0 / 2.0 / 3.0 / 4.0 USB Keyboard support SMBIOS 2.7.1 UEFI 2.3.1 Management Software SuperDoctor® 5 Watch Dog Power Configurations ACPI Power Management Power-on mode for AC power recovery PC Health Monitoring Voltage Monitors for CPU Cores, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory Voltages. 5 Phase-switching voltage regulator FAN 7x 4-pin fan headers (up to 6 fans) 7x fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors Temperature Monitoring for CPU and chassis environment CPU thermal trip support Thermal Control for 7x Fan Connectors Thermal Monitor 2 (TM2) support PECI LED CPU / System Overheat LED Other Features Chassis intrusion detection Chassis intrusion header SDDC Support RoHS Operating Environment Operating Temperature Range 10°C - 35°C (50°F - 95°F) Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F) Operating Relative Humidity Range 8% - 90% (non-condensing) Non-Operating Relative Humidity Range 5% - 95% (non-condensing) Parts List (Bulk) Part Number Qty Description X10DAL-i MBD-X10DAL-i 1 X10DAL-i Motherboard I/O Shield MCP-260-00077-0N 1 STD size I/O Shield for X10DAi with EMI Gasket and front metal,RoHS/REACH I/O Cables CBL-0044L 2 SATA CABLE 61CM FLAT S-S PBF Parts List (Retail) Part Number Qty Description X10DAL-i MBD-X10DAL-i 1 X10DAL-i Motherboard I/O Shield MCP-260-00077-0N 1 STD size I/O Shield for X10DAi with EMI Gasket and front metal,RoHS/REACH I/O Cables CBL-0044L 6 SATA CABLE 61CM FLAT S-S PBF Quick Reference Guide MNL-1701-QRG 1 Quick Reference Guide Optional Parts List Part Number Qty Description Heat Sink (optional, not included) - - CPU Heat Sink reference TPM security module (optional, not included) AOM-TPM-9655V AOM-TPM-9655H - TPM module with Infineon 9655, RoHS/REACH,PBF; Vertical or Horizontal depends on the server SuperDOM - - Supermicro SATA DOM Solutions [Details] Add-on Card AOC-TBT-DSL5320 1 Thunderbolt 2,W/Display and GPIO cable,HF,RoHS/REACH
