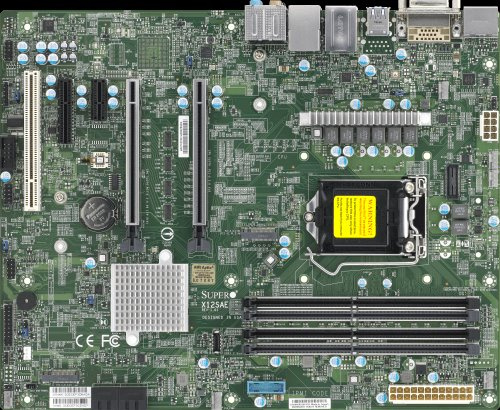

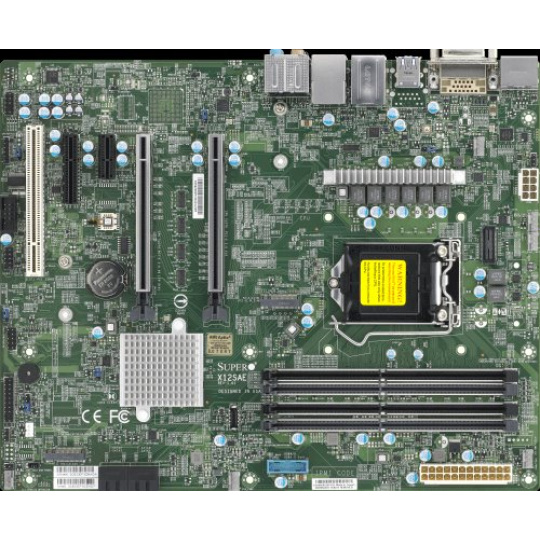

Supermicro Workstation board X12-SAE 1xLGA1200, ATX, Intel® W480
Popis a parametre
Supermicro Workstation board X12-SAE 1xLGA1200, ATX, Intel® W480
Key Features 10th Generation Intel® Core™ i9/Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processor, Intel® Xeon® W-1200 Processors Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 125W TDP Intel® W480 Single LAN with Intel® PHY I219LM LAN controller for AMT/vPro Single LAN with Intel® Ethernet i225V 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-2933MHz, in 4 DIMM slots 1 PCI-E 3.0 x4, 2 PCI-E 3.0 x16 slots (16/NA or 8/8), 1 PCI-E 3.0 x1 1 - 5V PCI 32bit M.2 Interface: 2 PCI-E 3.0 x4, RAID 0 & 1 M.2 Form Factor: 2280/22110 M.2 Key: M-Key Intel® W480 controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10 1 DP (DisplayPort) port, 1 HDMI port, 1 DVI - D port
Supermicro Workstation board X12-SAE 1xLGA1200, ATX, Intel® W480
