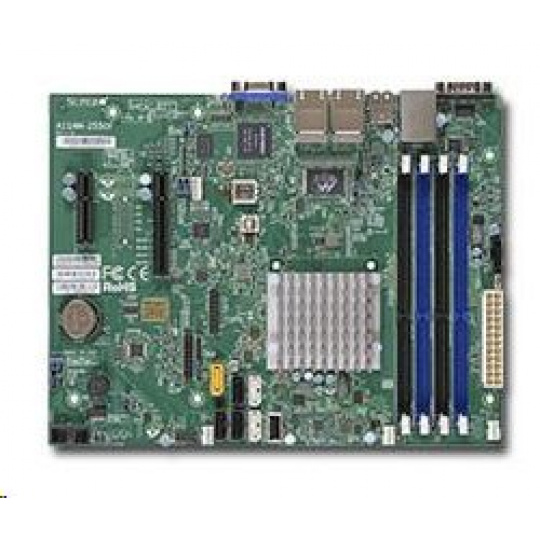

Popis produktu: 1. Intel® Atom processor C2758, SoC, FCBGA 1283, 20W 8-Core 2. Up to 64GB DDR3 1600MHz ECC or non-ECC UDIMM in 4 DIMM sockets 3. Quad GbE LAN ports 4. IPMI with dedicated LAN 5. 2x SATA3 and 4x SATA2 ports 6. 1x PCI-E 2.0 x8, 1x PCI-E 2.0 x4 7. 7x USB 2.0 ports 8. Operating Temperature: 0°C - 60°C 9. 7-Year product life Physical Stats Form Factor uATX Dimensions 9.6" x 7.5" (24.4cm x 19.05cm) Processor/Cache CPU Intel® Atom™ Processor C2758 CPU TDP 20W (8-Core) FCBGA 1283 System-on-Chip System Memory Memory Capacity 4x 240-pin DDR3 UDIMM socket Supports up to 64GB DDR3 ECC or non-ECC memory Memory Type 1600/1333MHz ECC or non-ECC DDR3 SDRAM, 240-pin gold-plated DIMMs, x8 width only DIMM Sizes 16GB, 8GB, 4GB, 2GB Memory Voltage 1.5 V, 1.35 V On-Board Devices SATA SoC SATA3 (6Gbps), SATA2 (3Gbps) Network Controllers C2000 SoC I354 Quad GbE Controller (MACs) Virtual Machine Device Queues reduce I/O overhead Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output IPMI Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support Aspeed AST 2400 BMC USB 2.0 C2000 SoC Video BMC integrated Aspeed AST2400 Input / Output Serial ATA 2x SATA3 (6Gbps) ports 4x SATA2 (3Gbps) ports LAN 4x RJ45 Gigabit Ethernet LAN ports 1x RJ45 Dedicated IPMI LAN port USB 7x USB 2.0 ports (4 rear, 1 Type A, 2 via header) Serial Port 2x Fast UART 16550 Serial Port (1 rear, 1 via header) DOM 1x SATA DOM (Disk on Module) power connector VGA 1x VGA Port Others TPM 1.2 header Chassis ( Optimized for A1SRM-2758F ) 1U Chassis CSE-813MTQ-202CB 1U Chassis SC510, SC512, SC813M/TQ 2U Chassis SC823M/TQ Expansion Slots PCI-Express 1x PCI-E 2.0 x8 slot 1x PCI-E 2.0 x4 slot System BIOS BIOS Type 128Mb SPI Flash EEPROM with AMI UEFI BIOS BIOS Features Plug and Play (PnP) DMI 2.3 ACPI 5.0 USB Keyboard support SMBIOS 2.7.1 UEFI Management Software SuperDoctor® 5 Watch Dog NMI Power Configurations ACPI / ACPM Power Management Main Switch Override Mechanism Power-on mode for AC power recovery PC Health Monitoring Voltage Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +5V Standby, VBAT, Memory Voltages. FAN Total of 3x 4-pin fan headers 3x fans with tachometer status monitoring Status monitor for speed control Status monitor for on/off control Low noise fan speed control Pulse Width Modulated (PWM) fan connectors Temperature Monitoring for CPU and chassis environment CPU thermal trip support LED System Overheat LED Other Features Chassis intrusion detection Chassis intrusion header Intel® QuickAssist Technology Operating Temperature • 0°C to 60°C
