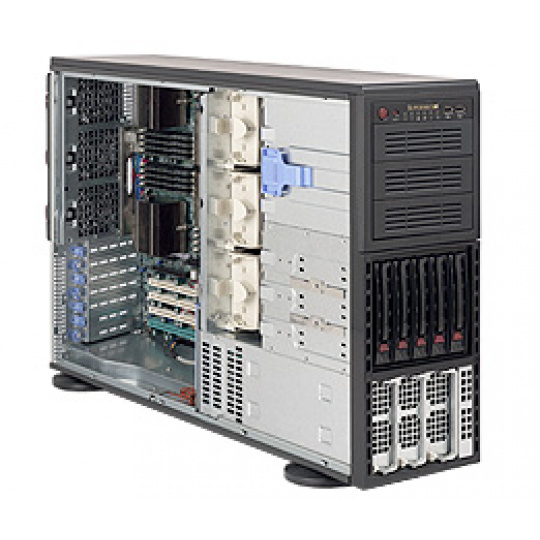

Key Features 1. Four AMD Opteron™ 6100 Series processors (G34); Twelve/Eight-Core ready 2. AMD SR5690/SR5670/SP5100 Chipset 3. 5x 3.5" Hot-swap SAS / SATA Drive Bays 4. Up to 512GB of DDR3 Reg. ECC 1333/1066/800 or 128GB of DDR3 Unbuf. ECC/non-ECC in 32 DIMMs 5. 2x PCI-e 2.0 x16 slots, 1x PCI-e 2.0 x8 slots, and 1x UIO or PCI-E x8 slot 6. Intel 82576 dual-port Gigabit Ethernet (2x GbE LAN ports) and 1x Dedicated LAN for system management (IPMI 2.0) 7. Integrated Matrox G200 Graphics 8. 1400W High-efficiency Gold Level Redundant Power Supplies Product SKUs AS-4042G-TRF A+ Server 4042G-TRF (Black) Motherboard Super H8QGi-F Processor/Chipset CPU Quad 1944-pin Socket G34 Supports up to four Twelve/Eight-Core ready AMD Opteron™ 6100 Series processors HT3.0 Link support Chipset AMD SR5690/SR5670/SP5100 Chipset System Memory Memory Capacity Thirty-Two DIMM sockets Support up to 512GB DDR3 Reg. ECC 1333/1066/800 MHz memory or 128GB of DDR3 Unb. ECC/non-ECC memory Quad channel memory bus For Dual or Quad CPUs: Recommended that memory be populated equally in adjacent memory banks See Detailed Memory Support Matrix Memory Type Registered ECC or unb. ECC / non-ECC DDR3 1333/1066/800 MHz SDRAM 72-bit, 240-pin gold-plated DIMMs DIMM Sizes 1GB, 2GB, 4GB, 8GB, 16GB Memory Voltage 1.35V or 1.5V Error Detection Corrects single-bit errors Detects double-bit errors (using ECC memory) On-Board Devices SATA AMD SP5100 (RAID 0, 1, 10) IPMI Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM over LAN support Winbond® WPCM450 BMC Network Controllers Intel® 82576 controller, Dual-Port Gigabit Ethernet 10/100/1000BASE-T support Super I/O Winbond® W83527 chip VGA Matrox G200 16MB DDR2 graphics Input / Output SATA 6x SATA2.0 (3Gb/s) Ports LAN 2 RJ45 LAN ports 1 RJ45 Dedicated LAN supports IPMI USB 7x USB 2.0 ports 2x Rear, 4x internal header, and 1x type A Keyboard / Mouse PS/2 keyboard and mouse ports Serial Ports 1x Fast UART 16550 serial port 1x serial port header VGA 1 VGA port Chassis Form Factor Tower / 4U Rackmountable Model SC748TQ-R1400B Dimensions Height 7.0" (178mm) Width 17.8" (452mm) Depth 28.4" (721mm) Gross Weight 87 lbs (39.5 kg) Available Colors Black Front Panel Buttons Power On/Off button System Reset button LEDs Power LED Hard drive activity LED 2x Network activity LEDs System Overheat LED Power Fail LED Ports 2x USB Ports Drive Bays Hot-swap 5x 3.5" Hot-swap SAS/SATA Drive Bays SAS or enterprise SATA HDD only recommended Peripheral Bay(s) 2x 5.25" Peripheral Drive Bay 1x 5.25" Bay For Floppy Drive Expansion Slots PCI-Express 2x PCI-e 2.0 x16 1x PCI-e 2.0 x8 1x UIO slot or 1x PCI-e 2.0 x8 SAS / SATA Backplane SAS / SATA Hard Drive Backplane with SES2 System Cooling Fans 3x 8200 RPM Hot-Swappable Cooling Fans 3x 8200 RPM Hot-Swappable Rear Exhaust Fan Shrouds 1x Air Shroud Power Supply Redundant 1400W high-efficiency power supply with PMBus AC Input 1200W: 100 - 140V, 50 - 60Hz, 10.5 - 14.7 Amp 1400W: 180 - 240V, 50 - 60Hz, 7.2 - 9.5 Amp DC Output +5V standby 6 Amp DC Output +12V 100 Amp @ 100-140V 117 Amp @ 180-240V Certification 80 PLUS Gold Certified [ Test Report ] PC Health Monitoring CPU Monitors CPU Core Voltages, +3.3V, +5V, +12V, 5V Standby, VBAT CPU 4-Phase-switching voltage reulator FAN Total up to 9-fan status tachometer monitoring Up to nine 3-pin fan headers Status monitor for speed control Support 3-pin fans with fan-speed control Temperature Monitoring for CPU and chassis environment CPU Thermal Trip Support PC Temperature Sensing Logic LED CPU / System Overheat LED Suspend-State Indicator LED +5V Standby Alert LED Other Features Chassis Intrusion Detection Chassis Intrusion Header System BIOS BIOS Type 8Mb Flash EEPROM with AMI® BIOS SST 49LF080A BIOS Chip BIOS Features Plug and Play (PnP) DMI 2.3 PCI 2.2 ACPI 2.0 USB Keyboard Support SMBIOS 2.3 Parts List - (Items Included) Part Number Qty Description Motherboard / Chassis MBD-H8QGi-F CSE-748TQ-R1400B 1 1 Super H8QGi-F Motherboard 4U SC748TQ-R1400B Chassis Air Shroud MCP-310-74802-0B 1 Mylar air shroud for H8QGi/6-F and H8QMi/3-2 Backplane CSE-SAS-M35TQ 1 M35 SAS BACKPLANE W/AMI MG9072 Cable 1 CBL-0157L-01 2 8pin to 8pin cable for SGPIO, 61.5cm, PBF Cable 2 CBL-0206L 5 48CM SATA ROUND S-S PBF CD CDR-APLUS2 1 DRIVER CD FOR AMD SP5100 CHIPSET MB Heatsink / Retention SNK-P0043P 4 2U Passive CPU HS for AMD Socket G34 Power Distributor PDB-PT748-8824 1 OUTPUT CONNECTORS INCLUDE 24 PIN Power Supply PWS-1K41F-1R 2 1400W 1U GOLD LEVEL PWS W/ PM BUS & WX106MM Fan FAN-0115L4 FAN-0116L4 3 3 92x92x38 mm, 7.5K RPM, PWM Fan for 748 rev K 80x80x38 mm, 8.2K RPM, PWM Fan for 748 rev K Mobile Rack CSE-M35BP 1 BLACK DISK ARRAY MOBILE RACK W/ 5 DRIVES Optional Parts List Part Number Qty Description Mounting Rails MCP-290-00001-00 MCP-290-00059-0B - - SC748 4U Chassis Mounting Rails (not for Rev. K chassis) 26.5" to 36.4" rail set + handles, Quick Release for 4U 17.2"W tower for Rev. K chassis
