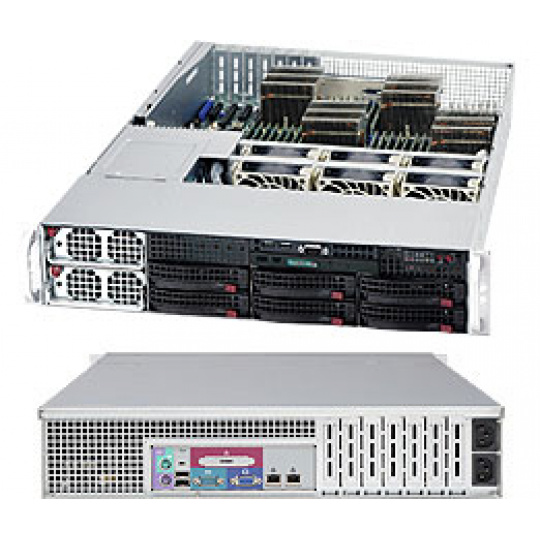

Key Features 1. Four AMD Opteron™ 6000 series (6300 ready) processors (Socket G34) 16/12/8/4-Core ready; HT3.0 Link support 2. Up to 1TB DDR3 1600MHz ECC Registered DIMM; 32x DIMM sockets 3. 2x PCI-e Gen 2.0 x16 slot, 1x PCI-e Gen 2.0 x8 slot, 1x UIO or x8 slot 4. Dual-port GbE LAN Controller, 4x USB 2.0 ports, 1x dedicated LAN for system management (IPMI 2.0) 5. 6x Hot-swap SATA Drive Bays 6. 1400W High-efficiency Redundant Power Supplies 80Plus Gold Certified 7. 6x 4-pin PWM fans with optimal fan speed control Product SKUs AS-2042G-TRF A+ Server 2042G-TRF (Black) Motherboard Super H8QGi-F Processor/Chipset CPU Quad 1944-pin Socket G34 Supports up to four 16/12/8/4-Core ready AMD Opteron™ 6000 Series processors HT3.0 Link support Chipset AMD SR5690/SR5670/SP5100 Chipset Note Supports 6000 processors with Max ACP 80W (TDP 115W) System Memory Memory Capacity 32 DIMM sockets Support up to 1TB Registered ECC or 256GB Unbuffered ECC/non-ECC DDR3 1600/1333/1066 SDRAM in 32 DIMMs Quad channel memory bus For Dual or Quad CPUs: Recommended that memory be populated equally in adjacent memory banks See Detailed Memory Support Matrix Memory Type Registered ECC or unb. ECC / non-ECC DDR3 1600/1333/1066 MHz SDRAM 72-bit, 240-pin gold-plated DIMMs DIMM Sizes 1GB, 2GB, 4GB, 8GB, 16GB, 32GB Memory Voltage 1.35V or 1.5V Error Detection Corrects single-bit errors Detects double-bit errors (using ECC memory) On-Board Devices SATA AMD SP5100 (RAID 0, 1, 10) IPMI Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM over LAN support Winbond® WPCM450 BMC Network Controllers Intel® 82576 controller, Dual-Port Gigabit Ethernet 10/100/1000BASE-T support VGA Matrox G200 16MB DDR2 graphics Super I/O Winbond® W83527 chip Input / Output SATA 6x SATA2.0 (3Gb/s) Ports LAN 2 RJ45 LAN ports 1 RJ45 Dedicated LAN supports IPMI USB 7x USB 2.0 ports 2x Rear, 4x internal header, and 1x type A VGA 1x VGA port Keyboard / Mouse PS/2 keyboard and mouse ports Serial Ports 1x Fast UART 16550 serial port 1x serial port header Expansion Slots PCI-Express 2x PCI-e 2.0 x16 2x PCI-e 2.0 x8 1x UIO slot System BIOS BIOS Type 16Mb SPI Flash ROM with AMI® BIOS BIOS Features Plug and Play (PnP) DMI 2.3 PCI 2.2 ACPI 2.0 USB Keyboard Support SMBIOS 2.3 Chassis Form Factor 2U Rackmount Model SC828TQ+-R1400LPB Dimensions Height 3.5" (89mm) Width 17.2" (437mm) Depth 27.9" (709mm) Gross Weight 69 lbs (31.3kg) Available Colors Black Front Panel Buttons • Power On/Off button • System Reset button LEDs • Power LED • Hard drive activity LED • 2x Network activity LEDs • System Overheat LED • Power fail LED Ports 2x USB Ports + DB9 COM Port (optional) Drive Bays Hot-swap 6x 3.5" SATA Hot-swap drive trays Enterprise SATA HDD only recommended SAS / SATA Backplane 1x 2U SAS / SATA backplane w/ SES-II System Cooling Fans 6x 80mm 6500 RPM fans Power Supply Redundant 1400W high-efficiency power supply with PMBus AC Input 1200W: 100 - 140V, 50 - 60Hz, 10.5 - 14.7 Amp 1400W: 180 - 240V, 50 - 60Hz, 7.2 - 9.5 Amp DC Output +5V standby 6 Amp DC Output +12V 100 Amp @ 100-140V 117 Amp @ 180-240V Certification 80 PLUS Gold Certified [ Test Report ] PC Health Monitoring CPU Monitors CPU Core Voltages, +1.8V, +3.3V, +5V, ±12V, +3.3V Standby, -12V Standby, sVBAT, HT, memory, chipset CPU switching voltage regulator FAN Up to 9-fan status tachometer monitoring Up to nine 4-pin fan headers Status monitor for speed control 3-pin fan support (w/o speed control) Low noise fan speed control (4-pin fan only) Pulse Width Modulated (PWM) fan connectors Temperature Monitoring for CPU and chassis environment CPU Thermal Trip Support Thermal control for 9x fan connectors I2C Temperature Sensing Logic LED CPU / System Overheat LED +5V Standby Alert LED Other Features Chassis Intrusion Detection Chassis Intrusion Header Operating Environment / Compliance RoHS RoHS Compliant Environmental Spec. Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) Parts List - (Items Included) Part Number Qty Description Motherboard / Chassis MBD-H8QGi-F CSE-828TQ+-R1400LPB 1 1 Super H8QGi-F Motherboard 2U SC828TQ+-R1400LPB Chassis (Black) Cable(s) CBL-0157L-01 CBL-0227L CBL-0228L CBL-0230L CBL-0341L 2 2 2 2 1 8pin to 8pin cable for SGPIO, 61.5cm, PBF 48CM SATA ROUND S-RA PBF 55CM SATA ROUND S-RA PBF 65CM SATA ROUND S-RA PBF 70CM, INTERNAL USB CABLE FOR SLIM USB DVD ROM DVD-ROM DVM-TEAC-DVD-SBT2 OR DVM-PNSC-DVD-SBT1 1 Black slim SATA DVD, TEAC OR Black slim SATA DVD, Panasonic DVD-ROM Accessory CDM-USATA-G 1 Mini-SATA to USB adapter for slim DVD Backplane BPN-SAS-828TQ 1 Support 6x SAS/SATA HDD; SATA con Driver CDR-APLUS2 1 Driver CD for AMD SP5100 chipset motherboards Fan(s) FAN-0099L4 6 4-pin PWM Cooling Fans Drive Tray(s) MCP-220-00001-01 MCP-220-00007-01 6 1 Black Hot-swappable Hard Drive Tray Black USB Assembly Tray Heatsink / Retention SNK-P0043P 4 2U Passive CPU HS for AMD Socket G34 Mounting Rails MCP-290-00053-0N 1 Rail set, quick/quick, default for 2,3U 17.2"W Power Supply PWS-1K41F-1R 2 1400W Redundant Gold Level Power Supplies w/ PMBus & WX106MM Air Shroud MCP-310-82801-0N 1 SC828 Air Shroud for 2U Chassis
