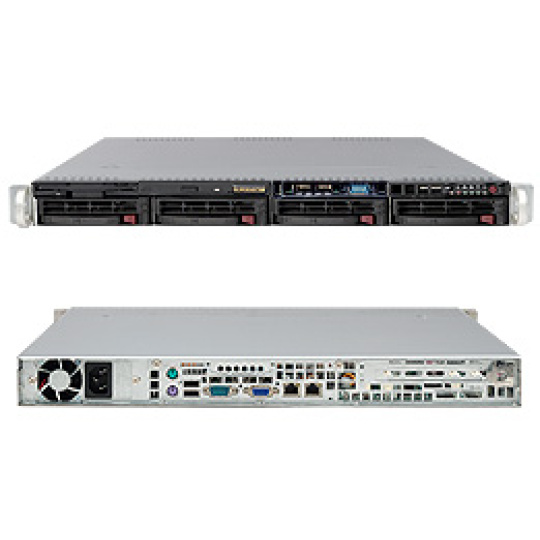

Key Features 1U Chassis for motherboard support size: (12" x 10") (9.6" x 9.6") 4 x 3.5" hot-swap SAS/SATA 1U 4-Port 12Gbps Backplane Support 4x3.5 1U 350W Multi-output power supply Platinum level 1 full height expansion slot(s) 4 x 40x28mm PWM fan(s) Optional 2 x 40x28mm PWM fan(s) Product SKUs CSE-813MFTQC-350CB2 SuperChassis 813MFTQC-350CB2 Form Factor 1U Chassis for motherboard support size: (12" x 10") (9.6" x 9.6") Processor Support Dual, single Intel® / AMD processors Dimensions Height 1.7" (43 mm) Width 17.2" (437 mm) Depth 19.85" (503 mm) Gross Weight 31 lbs (14.06 kg) Packaging (W x H x L) 23.4" (594 mm) x 8.5" (216 mm) x 29.7" (754 mm) Available Color Black Expansion Slots 1 full height expansion slot(s) Drive Bays 4 x 3.5" hot-swap SAS/SATA Backplane 1U 4-Port 12Gbps Backplane Support 4x3.5 Peripheral Drives Optional 1 x Slim DVD-ROM Drive Front Panel Buttons Power On/Off button System Reset Button LEDs 2 Network Activity LEDs HDD activity LED Power Status LED System Information LED Motherboard (for CSE- 813MFTQC-350CB2) X11SPi-TF X11SPL-F X11SPM-TF X11SPM-TPF X11SPM-F H11SSL-NC H11SSL-C H11SSL-i X11SCM-F X11SCM-LN8F X11SCL-LN4F Systems Cooling Fans 4 x 40x28mm PWM fan(s) Optional 2 x 40x28mm PWM fan(s) Operating Environment (System) Operating Temperature Range 5°C - 35°C (41°F - 95°F) Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F) Operating Relative Humidity Range 8% - 90% (non-condensing) Non-Operating Relative Humidity Range 5% - 95% (non-condensing) Power Supply 1U 350W Multi-output power supply Platinum level Power Efficiency 93% Total Output Power and Input 350W with Input 100 - 240Vac AC Input Frequency 50-60Hz Dimensions (L x W x H) 180 x 100 x 40 mm Output Type 24pin ATX -12V Max: .2A / Min: 0A +12V Max: 29A / Min: .5A (100Vac - 240Vac) +5V Max: 15A / Min: .2A +3.3V Max: 12A / Min: .2A +5Vsb Max: 3A / Min: 0A Certification Platinum Certified Platinum Certified Regulatory (Power Supply) Power Supply Safety / EMC BSMI CCC CE/EMC FCC class B TUV/CB Standard Parts List Part Number Qty Description HD Backplane BPN-SAS3-815TQ 1 1U 4-Port 12Gbps Backplane Support 4x3.5 Cable(S) CBL-0071L 1 CBL,FRONT CNTL,16 TO 16 PIN,RA,RND TUBE,75CM,28AWG Cable(S) CBL-PWCD-0160-IS 1 PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,13A,125V,RoHS/REACH CD-ROM & Accessory CSE-PT93L-B 1 Black DVD dummy cover for SC813, 813M, 815, PBF-RoHS Fan(s) FAN-0154L4 4 40x40x28 mm, 22.5K RPM, SC813MF Middle Cooling Fan,RoHS/REACH Front Panel FPB-FP813-D 1 Front control board dual color for SC815,SC813M (C) Cooling Fan & Accessory MCP-320-00031-0B 1 Fan tray for six 40x28 fans(SC813M/113M) Drive Tray(s) MCP-220-00075-0B 4 Black gen 5.5 hot-swap 3.5"; HDD tray Part(s) MCP-260-00078-0N 1 1U I/O shield for X10 and X9 Server MB with 5X5mm vent hole and EMI Gasket,RoHS/REACH,PBF Part(s) MCP-340-00001-01 2 Dummy fan 40x28mm Power Supply & Accessory PWS-350-1H 1 1U Single AC-DC 350W Platinum Level, multiple output power supply (180mm) Mounting Rail(s) MCP-290-00102-0N 1set Outer rail, quick-release type, 25.6" to 33.05" Mounting Rail(s) MCP-290-00108-0N 1set Inner rail, front, short, quick-release type Mounting Rail(s) MCP-290-00110-0N 1set Inner rail, extension (quick) for 1U 17.2 Optional Parts List Part Number Qty Description Mounting Rail CSE-PT52L - Sliver chassis rail set for SC813M,515,113M Front Bezel CSE-PTFB-813LB - BLACK SC813 FRONT BEZEL, PB FREE Peripheral Drive(s) DVM-PNSC-DVD-SBT3 - BLACK PANASONIC SLIM DVD ROM SATA DRIVE,HF,RoHS/REACH Peripheral Drive(s) DVM-TEAC-DVD-SBT4 - BLACK TEAC SLIM DVD ROM SATA DRIVE,HF,RoHS/REACH Peripheral Drive(s) MCP-220-00110-0B - Black USB/COM port tray in slim DVD bay,RoHS/REACH,PBF Peripheral Drive(s) MCP-220-81502-0N - Slim SATA DVD mounting kit for SC213,219,813,815,818,819,825,828,829,836,842
