Supermicro
Popis a parametre
Supermicro

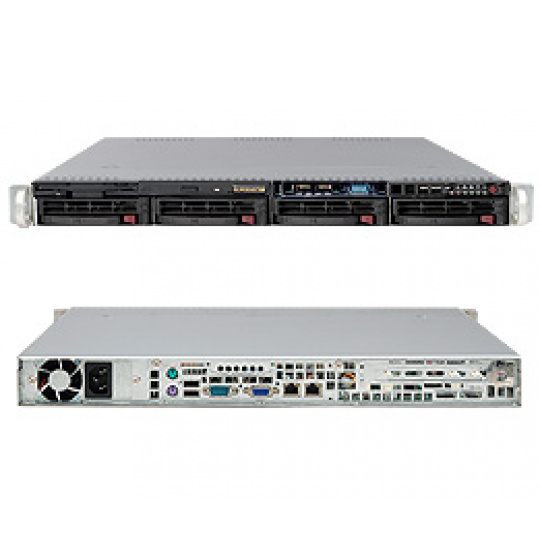

Key Features SAS3 12Gb/s Technology 1. 350W High-efficiency Power Supply Platinum Level (94%+) 2. 4x 3.5" Hot-swap SAS/SATA Drive Bays 3. 1x Front USB/COM Port tray in Slim FDD bay(Optional) 4. 4x 4cm high performance cooling fans 5. 1x Full-height I/O Expansion Slot 6. Quick release rail set roduct SKUs CSE-813MFTQC-350CB SuperChassis 813MFTQC-350CB (black) Form Factor 1U chassis for motherboard support size 12" x 10", 9.6" x 9.6" Processor Support Supports dual, single Intel® / AMD processors Dimensions Height 1.7" (43mm) Width 17.2" (437mm) Depth 19.85" (503mm) Gross Weight lb ( kg) Packaging 23.4'' (W) x 8.5''(H) 29.7'' (L) Available Color black Expansion Slots 1 full-height & full-length expansion slot(s) Drive Bays Internal Bay • 4x 3.5" hot-swap SAS/SATA drive bay with SES2 Front Panel Buttons • Power On/Off button • System Reset Button LEDs • 2 Network Activity LEDs • Fan Fail/System Over Heat LED • HDD activity LED • Power Status LED Motherboard (for CSE-813MFTQC-350CB ) X10SRM-F X10SRM-TF X11SSH-CTF X11SSH-F X11SSH-LN4F X11SSH-TF X11SSi-LN4F X11SSL X11SSL-CF X11SSL-F X11SSL-nF X11SSM X11SSM-F X11SSZ-F X11SSZ-QF X11SSZ-TLN4F Server(s) for SC813MFTQC-350CB 5019S-M2 System Cooling Fans •4x 40x28mm PWM fan •Optional 2x 40x28mm PWM fan Operating Environment (System) Operating Temperature Range 5°C ~ 35°C (41°F ~ 95°F) Non-Operating Temperature Range -40°C ~ 60°C (-40°F ~ 140°F) Operating Relative Humidity Range 8% ~ 90% (non-condensing) Non-Operating Relative Humidity Range 5% - 95% (non-condensing) Power Supply 350W AC power supply w/ PFC AC Voltage 100-240 V, 50-60 Hz, 4.2-1.8 Amp +5V Max.: 15 Amp Min.: 0.2 Amp +5V standby Max.: 3 Amp Min.: 0 Amp +12V Max.: 29 Amp Min.: 0.5 Amp -12V Max.: 0.2 Amp Min.: 0 Amp +3.3V Max.: 12 Amp Min.: 0.2 Amp Certification Platinum Level Certified Platinum Level Certified [ Test Report ] Regulatory (Power Supply) Power Supply Safety / EMC USA - UL listed, FCC Canada - CUL listed Germany - TUV Certified Europe/CE Mark EN 50950/IEC 50950-Compliant
