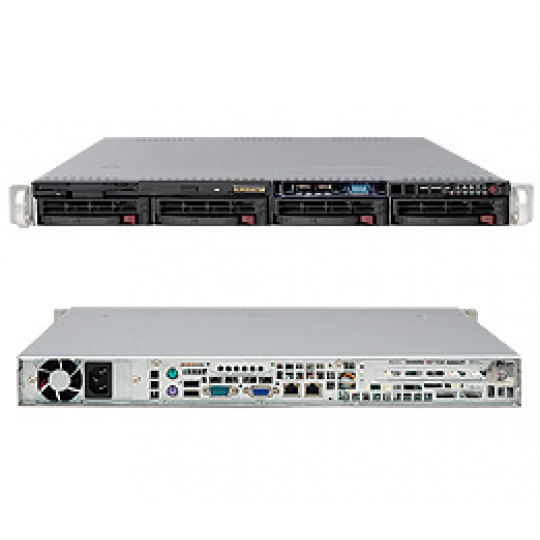

Key Features 1. 520W High-efficiency Power Supply 2. 4x 3.5" Hot-swap SAS / SATA Drive Bays 3. 1x Slim DVD ROM Drive (Optional) 5. 4x 4cm PWM Fans 6. 1x Full-height, Half-length I/O Expansion Slot 7. Power Switch / Reset & 5 LED Indicators Available Colors Beige Black Downloads Chassis Manual Product SKUs CSE-813MTQ-520C SuperChassis SC813MTQ-520C (Beige) CSE-813MTQ-520CB SuperChassis SC813MTQ-520CB (Black) Form Factor 1U chassis support for max. motherboard size - 12" x 10" ATX Processor Support Supports dual, single Intel® / AMD processors Dimensions Height 1.7" (43mm) Width 17.2" (437mm) Depth 19.8" (503mm) Gross Weight 31 lbs (14.1kg) Available Colors Beige, Black Expansion Slots 1x full-height, half-length PCI expansion slot (Riser Card Required) Drive Bays Hot-swap 4x 3.5" Hot-swap SAS / SATA drive bays SAS or enterprise SATA HDD only recommended SAS / SATA Backplane 1x SAS / SATA Backplane Peripheral Drives DVD-ROM Slim DVD-ROM drive (Optional) Front Panel Buttons Power On/Off button System Reset button LEDs Power LED Hard drive activity LED 2x Network activity LEDs System Overheat LED Ports 2x Front USB Ports 1x Serial COM Port System Cooling Fans 4x 4cm 12,500 RPM PWM fans Operating Environment (System) Operating Temperature Range 10 - 35°C (50° to 95° F) Non-Operating Temperature Range -40 - +70°C (-40° to 158° F) Humidity Range 8 - 90% non-condensing Non-Operating Humidity Range 5 - 95% non-condensing Power Supply 520W AC to DC power supply w/ PFC AC Voltage 100 - 240V, 50 - 60Hz, 7 - 3Amp +5V 20 Amp +5V standby 3 Amp +12V 39 Amp -12V 0.5 Amp +3.3V 16 Amp Regulatory (Power Supply) Power Supply Safety / EMC USA - UL listed, FCC Canada - CUL listed Europe/CE Mark EN 60950/IEC 60950-Compliant Standard Parts List Part Number Qty Description Chassis CSE-813MTQ-520C CSE-813MTQ-520CB 1 1 1U Chassis (Beige) 1U Chassis (Black) Cable(s) CBL-0049L CBL-186L CBL-0157L 1 4 1 Front Panel Ribbon Cable (BOM) 35cm SATA Cable 8-pin to 8-pin Ribbon Cable For SGPIO Fan(s) FAN-0061L4 CSE-PT0121 4 1 1U, 40x28mm 4-pin 12,500 RPM High-Performance PWM Fan Fan Holder Front Tray CSE-PT40(B) 1 Front USB and COM Port Tray I/O MCP-260-00024-0N 1 1U Standard I/O Shield Mounting Rails CSE-PT52 1 1U Slide Rails Power Supply PWS-521-1H 1 520W 1U Power Supply with Harness Hard Drive CSE-PT39(B) BPN-SAS-815TQ 4 1 Hot-swappable Hard Drive Trays SAS / SATA Backplane [ Manual ]; passed SAS-2 compatibility testing Air Shroud MCP-310-00029-01 1 Air Shroud * Air shroud is not required to support Intel® Xeon® 5500 series based motherboards. Optional Parts List Part Number Qty Description Heatsink / Retention - - Please refer to our Thermal Components Matrix Mounting Rails MCP-290-00056-0N MCP-290-00052-0N-BULK - - 19" to 26.4" outer rail, /quick, for 1U 17.2" W chassis 25.6" to 33.05" outer rail, /quick, for 1U 17.2" W chassis (10 sets/pack) Peripheral Drives DVM-TEAC-824B DVM-PNSC-824B DVM-TEAC-DVD-SBT DVM-PNSC-DVD-SBT CSE-PT92L MCP-220-81502-ON - - - - - - Black slim IDE DVD (8x DVD, 24x CDR), TEAC Black slim IDE DVD (8x DVD, 24x CDR), Panasonic Black slim SATA DVD (8x DVD, 24x CDR), TEAC Black slim SATA DVD (8x DVD, 24x CDR), Panasonic Slim IDE DVD kit (include backplane, cable) Slim SATA DVD kit (include backplane, cable) Peripheral Drives FPD-TEAC-S(B) CSE-PT91L CSE-PT93L(-B) CSE-PT94L(-B) - - - - TEAC 3.5" 1.44MB Slim Floppy Drive (B = black) Slim FDD kit DVD or CD dummy cover (B = black) FDD or USB tray dummy cover (B = black) Riser Card(s) CSE-RR32-1U CSE-RR1U-X - - 1U 32-bit Riser Card 1U 64-bit 3.3V PCI-X Riser Card
