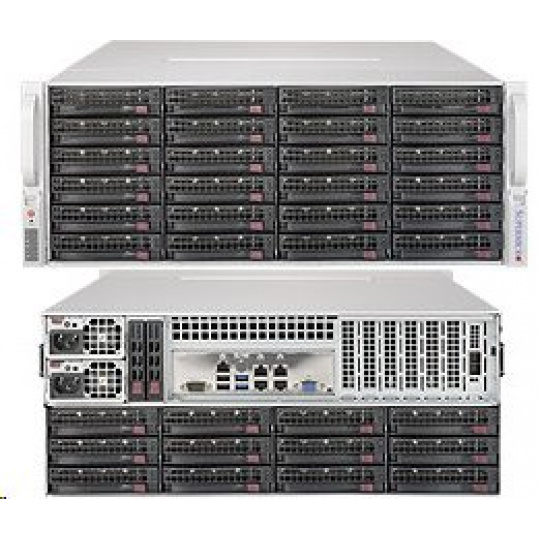

Key Features 1. Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v3 family; QPI up to 9.6GT/s 2. Up to 1TB ECC DDR4 2133MHz; 16x DIMM slots 3. 1 PCI-E 3.0 x16, 6 PCI-E 3.0 x8 (slot 1 & 2 occupied by controller and JBOD expansion port) 4. Dual 10GBase-T LAN w/ Intel® X540 5. 36x 3.5" Hot-swap SAS3/SATA3 drive bays (24 front + 12 rear); 2x 2.5" optional Hot-swap drive bays (rear); 4x 2.5" internal fixed drive bays 6. SAS3 via LSI 3008 controller; IT mode 7. Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN 8. 7x 80mm middle cooling fans 9. 1280W Redundant Power Supplies Platinum Level (94%) Product SKUs SSG-6048R-E1CR36L SuperServer 6048R-E1CR36L (Black) Motherboard Super X10DRH-iT Processor/Cache CPU Intel® Xeon® processor E5-2600 v3 family (up to 145W TDP) * Dual Socket R3 (LGA 2011) Cores / Cache Up to 18 Cores / Up to 45MB Cache System Bus QPI up to 9.6 GT/s Note * Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization. System Memory Memory Capacity 16x 288-pin DDR4 DIMM slots Up to 1TB ECC LRDIMM, 512GB ECC RDIMM Memory Type 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit DIMM Sizes RDIMM: 32GB, 16GB, 8GB, 4GB LRDIMM: 64GB, 32GB Memory Voltage 1.2 V Error Detection Corrects single-bit errors On-Board Devices Chipset Intel® C612 chipset SAS SAS3 (12Gbps) via LSI 3008 IT mode firmware SATA SATA3 (6Gbps) with RAID 0, 1, 5, 10 IPMI Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2400 BMC Network Controllers Intel® X540 Dual Port 10GbE Virtual Machine Device Queues reduce I/O overhead Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output 1x Realtek RTL8201N PHY (dedicated IPMI) Graphics ASPEED AST2400 BMC Input / Output LAN 2x RJ45 10GBase-T LAN ports 1x RJ45 Dedicated IPMI LAN port USB 2x USB 3.0 ports (rear) 2x USB 2.0 ports (rear) 1x Type A VGA 1x VGA port Serial Port / Header 1x Fast UART 16550 port / 1 Header Chassis Form Factor 4U Rackmount Model CSE-847BE1C-R1K28LPB Dimensions and Weight Width 17.2" (437mm) Height 7" (178mm) Depth 27.5" (699mm) Weight Gross Weight: 102.5 lbs (46.4 kg) Net Weight: 65.5 lbs (29.7 kg) Available Colors Black Front Panel Buttons Power On/Off button System Reset button LEDs Power status LED Hard drive activity LED 2x Network activity LEDs System Overheat LED Power fail LED Expansion Slots PCI-Express 1x PCI-E 3.0 x16 slot 6x PCI-E 3.0 x8 slots Slot 1 & 2 occupied by controller and JBOD Expansion Port Drive Bays Hot-swap 36x 3.5" Hot-swap SAS3/SATA3 drive bays Double-sided: 24 front + 12 rear drive bays Optional 2x 2.5" Hot-swap HDD bays (rear) Fixed internal Drive Bracket supports 1x 3.5 or 2x 2.5" devices Backplane SAS3/SATA3 single expander per backplane System Cooling Fans 7x 80mm middle cooling fans Redundant cooling Power Supply with Digital Switching Control & PMBus 1.2 1280W High-Efficiency (95%+) power supply AC Input 1000W Output @ 100-140V, 12-8A, 50-60Hz 1280W Output @ 180-240V, 8-6A, 50-60Hz DC Output 1000W: +12V/83A; +5Vsb/4A 1280W: +12V/106.7A, +5Vsb/4A Certification Platinum Level Certified95%+ Platinum Certified [ Test Report ] System BIOS BIOS Type 128Mb SPI Flash EEPROM with AMI BIOS BIOS Features Plug and Play (PnP) APM 1.2 PCI 2.2 ACPI 1.0 / 2.0 USB Keyboard support SMBIOS 2.3 UEFI Operating Environment / Compliance RoHS RoHS Compliant Environmental Spec. Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
