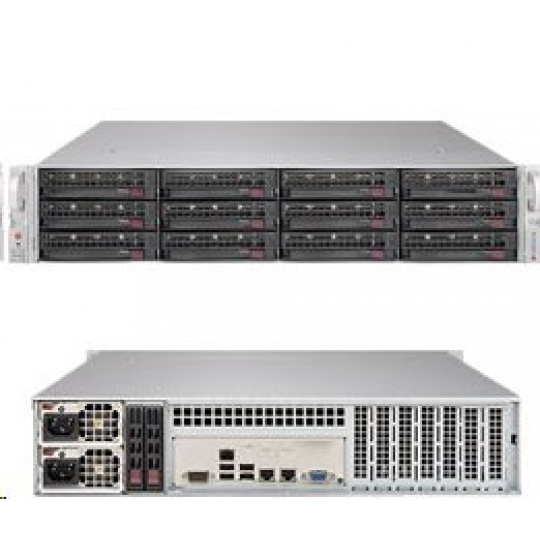

Key Features - Corporate Database - Database Processing & Storage - Enterprise Server - HPC, Data Center - iSCSI SAN 1. Dual socket P (LGA 3647) supports Intel® Xeon® Scalable Processors, 3 UPI up to 10.4GT/s 2. Up to 2TB ECC 3DS LRDIMM, up to DDR4-2666MHz; 16 DIMM slots 3. 3 PCI-E 3.0 x16, 4 PCI-E 3.0 x8 (slot 2 & 3 occupied by controller and JBOD expansion port) 4. 12 Hot-swap 3.5" SAS3/SATA3 direct attached drive bays 5. Broadcom 3008 SAS3 AOC 6. 2x 10GBase-T LAN ports with Intel X722 + PHY Intel X557 7. Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN 8. 3 Hot-swap 8cm redundant PWM fans 9. 1200W Redundant Power Supplies Titanium Level (96%) Product SKUs SSG-6029P-E1CR12L SuperServer 6029P-E1CR12L (Black) Motherboard Super X11DPH-T Processor/Cache CPU Dual Socket P (LGA 3647) Intel® Xeon® Scalable Processors, 3 UPI up to 10.4GT/s Support CPU TDP 70-205W Cores Up to 28 Cores with Intel® HT Technology System Memory Memory Capacity 16 DIMM slots Up to 2TB ECC 3DS LRDIMM, 512GB ECC RDIMM, DDR4 up to 2666MHz Memory Type 2666/2400/2133MHz ECC DDR4 SDRAM On-Board Devices Chipset Intel® C624 chipset SAS SAS3 (12Gbps) via Broadcom 3008 AOC Broadcom 3008 controller SATA SATA3 (6Gbps); RAID 0, 1, 5, 10 Network Controllers Dual 10GBase-T LAN ports with Intel X722 + PHY Intel X557 IPMI Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support Video ASPEED AST2500 BMC Input / Output LAN 2 RJ45 10GBase-T LAN ports 1 RJ45 Dedicated IPMI LAN port USB 4 USB 3.0 ports (rear) 1 Type A Video 1 VGA port Serial Port / Header 1 Fast UART 16550 port / 1 Header System BIOS BIOS Type 256Mb AMI UEFI Management Software Intel® Node Manager IPMI 2.0 NMI SPM, SUM SuperDoctor® 5 Watchdog PC Health Monitoring CPU Monitors for CPU Cores, Chipset Voltages, Memory. 4+1 Phase-switching voltage regulator FAN Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors Temperature Monitoring for CPU and chassis environment Thermal Control for fan connectors Chassis Form Factor 2U Rackmount Model CSE-826BE1C4-R1K23LPB Dimensions Width 17.2" (437mm) Height 3.5" (89mm) Depth 24.8" (630mm) Gross Weight 61 lbs (27.7 kg) Available Colors Black Front Panel Buttons Power On/Off button System Reset button LEDs Power status LED Hard drive activity LED Network activity LEDs System Overheat LED Power fail LED Expansion Slots PCI-Express 3 PCI-E 3.0 x16 slot 4 PCI-E 3.0 x8 slots Slot 2 & 3 occupied by controller and JBOD expansion port Drive Bays Hot-swap 12 Hot-swap 3.5" SAS3/SATA3 drive bays Optional 2 Optional Onboard NVMe M.2 Backplane SAS3 12Gb/s direct attached storage backplane, w/ 24x SAS3 2.5" drive slots System Cooling Fans 3 Hot-swap 8cm redundant PWM cooling fans Power Supply (76mm Width) 1200W Redundant Power Supplies with PMBus Total Output Power 1000W/1200W Dimension (W x H x L) 76 x 40 x 336 mm Input 100-127Vac / 15-12A / 50-60Hz 200-240Vac / 8.5-7A / 50-60Hz +12V Max: 83A / Min: 0A (100-127Vac) Max: 100A / Min: 0A (200-240Vac) +5Vsb Max: 4A / Min: 0A Output Type 19 Pairs Gold Finger Connector Certification Platinum Level Certified95%+ UL/cUL/CB/BSMI/CE/CCC Titanium Level [ Test Report ] Operating Environment RoHS RoHS Compliant Environmental Spec. Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
