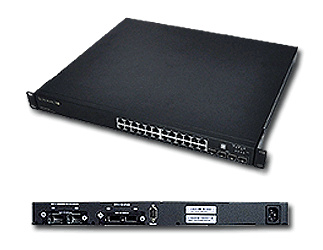

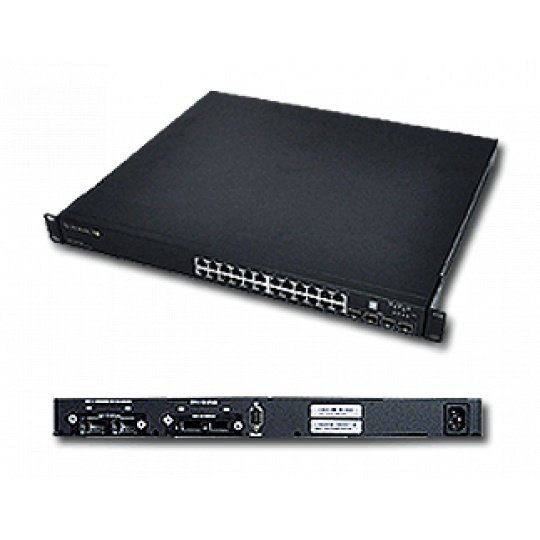

Wire-speed Layer 3 Routing 1:1 Non-blocking connectivity 1U form factor for flexible installation Enterprise-Class Performance with Advanced Switching Capabilities in a 1U Form Factor for 1/10-Gigabit Ethernet Networking SSE-G24-TG4 The new SSE-G24-TG4 from Supermicro is a standalone 24-port Layer 2/Layer 3 1/10-Gigabit Ethernet switch. It offers a full suite of advanced Ethernet switching features - the same as in the new Ethernet switch for the Supermicro SuperBlade® server systems. In addition to the 24 ports at 1-gigabit per second, the SSE-G24-TG4 offers up to four 10-gigabit per second "uplink ports". These uplink ports can be used to connect to 10-Gigabit Ethernet backbone networks or servers with 10-Gigabit Ethernet connectivity - or they can be "stacked" together to create an even larger capacity switch. Fiber or copper wiring options are available for the 10-Gigabit connections. Specification Port Attributes: - 24 one Gigabit Ethernet ports * 24 RJ45 Copper ports * Four fiber SFP combo ports - Up to four high-speed ports * Two or four 10 Gigabit Ethernet uplink ports * Up to two stacking ports - Out-of-band RS-232 Management port Performance: - Switching capacity: 136 Gbps - Stacking performance - up to 48 Gbps - Forwarding rate: 95 Mpps Availability: - Spanning Tree (802.1D) - Rapid Spanning Tree (802.1w) - Multiple Spanning Trees (802.1s) - Virtual Redundant Routing Protocol (VRRP) VLAN: - 802.1Q tagging, port and protocol based - 1024 VLANs - Dynamic VLAN Support (GVRP) Quality of Service and DiffServ: - 8 priority queues per port - Adjusted WRR and Strict Priority Scheduling - Layer 2 / 3 / 4 Prioritization - Marking - Metering / Rate limiting Specification (Continued) Switching Features: - Link Aggregation - 24 groups with 8 members per group - LACP Support - Link Layer Discovery Protocol (802.1AB) - Jumbo Frame Support - Port Mirroring - N to 1. Tx & Rx Configurable Routing Features: - Static Routing, RIP v1/v2, RIPng, OSPF v1/v2/v3 and BGP - IPv4 and IPv6 Routing - VRRP (Virtual Router Redundancy Protocol) - DVMRP (Distance Vector Multicast Routing Protocol) Multicast: - IGMP Snooping v1/v2/v3 - IGMP v1/v2/v3 - PIM SM, PIM DM - PIM SMv6 Security: - 802.1x Port Based Authentication - Switch access password protection - Layer 2 / 3 / 4 Access control Lists - RADIUS and TACACS+ Authentication - SSH / SSL Encryption Management: - Web-basd management interface - HTTP, HTTPS - Industry standard CLI with telnet, SSH or local management port - Scripting capability - Command completion - Multiple levels of user privileges (CLI and Web UI) - SNMP v1/v2/v3 - Four RMON Groups - (1, 2, 3 and 9) - Logging - syslog - Dual firmware images - Configuration file - upload / download Options: - AOM-SSE-X2C: Two-port CX4 Connector Module for copper connections - AOM-SSE-X2F: Two-port XFP Connector Module for Fiber connections Operating Conditions: - Operating temperature: 0 to 45°C - Power Consumption: 105 W Dimensions Height 1.7" (43mm) Width 17.3" (440mm) Depth 15.2" (387mm) Gross Weight w/o modules: 12.2 lbs (5.54 kg) w/ modules: 12.6 lbs (5.70 kg) Available Colors Black Add-On Modules (Optional) AOM-SSE-X2C Dual-port CX-4 Copper interface module AOM-SSE-X2F Dual-port XFP fiber interface module
