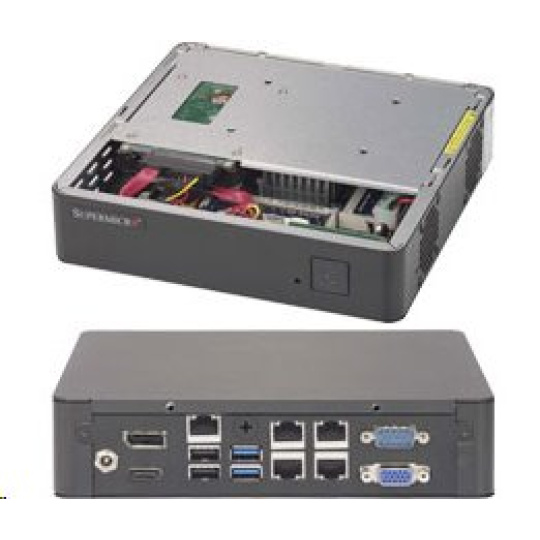

Key Features - Compact Embedded Mini ITX Box - Long Life Cycle Support - Digital Signage, Indoor Kiosk 1. Intel® Pentium® Processor N3700, Quad-Core (6W, 4C); Socket FCBGA 1170 2. System-on-Chip 3. 1x 2.5" internal drive bay 4. Up to 8GB 1600MHz DDR3 Non-ECC SO-DIMM in 2 socket 5. 1x SuperDOM, 1x mSATA slot, 1x TPM 1.2 header 6. I/O ports: 4x GbE, 1x HDMI, 1x Display Port, 1x VGA, 1x serial port 7. 1x IPMI 2.0 w/ dedicated Port & KVM 8. 2x USB 3.0 & 2x USB 2.0 (rear) ports 9. 1x 4cm high performance PWM fan 10. 60W DC power adapter Product SKUs SYS-E200-9B SuperServer E200-9B (Black) Motherboard Super X11SBA-LN4F Processor/Cache CPU Socket FCBGA1170 Intel® Pentium® Processor N3700 CPU TDP 6W 1.6-2.4GHz, 2MB System Memory Memory Capacity 2x 204-pin SO-DIMM slot Supports up to 8GB non-ECC DDR3 1600MHz memory (Dual Channel) Memory Type 1600/1333/1066MHz DDR3 SO-DIMM, 204-pin gold-plated DIMMs DIMM Sizes 4GB, 2GB Memory Voltage 1.35 V On-Board Devices Chipset Intel® N3700 System on Chip SATA SATA 3.0 (6Gbps) from Intel® SoC Network Controllers Quad Gigabit Ethernet LAN ports with Intel® I210-AT Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output Graphics Aspeed AST2400 BMC Input / Output Serial ATA 2x SATA3 (6Gbps) ports LAN 4x RJ45 Gigabit Ethernet LAN ports 1x RJ45 Dedicated IPMI LAN port USB 2x USB 3.0 ports (rear) 2x USB 2.0 ports (rear) Display 1x Display Port, 1x HDMI, 1x VGA (Two Independent Displays) DOM 1x SuperDOM (Disk on Module) port with built-in power Others TPM 1.2 header Chassis Form Factor Mini-ITX Model CSE-101S Dimensions Width 7.68" (195mm) / 15" (381mm) - pkg. Height 1.75" (44.5mm) / 10.87" (276mm) - pkg. Depth 7.68" (195mm) / 5.59" (142mm) - pkg. Weight Gross Weight: 5.5 lbs (2.49 kg) Net Weight: 2.45 lbs (1.11 kg) Available Colors Black Front Panel Buttons Power On/Off button LEDs Power LED (Hard drive activity LED) Expansion Slots Mini-PCIe 1x mini-PCIe slot with mSATA support Drive Bays Internal 1x 2.5" internal drive tray System Cooling Fans 1x 4cm high performance PWM fan; support up to 2 chassis fans Power Supply 60W DC Power Adapter System BIOS BIOS Type 128Mb SPI Flash EEPROM with AMI UEFI BIOS BIOS Features Plug and Play (PnP) ACPI 5.0 UEFI 2.3.1 SMBIOS 2.7 DMI 2.3 USB Keyboard support RTC (Real time Clock) Wakeup 3TB HDD Support Management Software IPMI 2.0 with KVM support NMI SUM SuperDoctor® 5 Watch Dog Power Configurations ACPI / ACPM Power Management Main Switch Override Mechanism Keyboard Wakeup from Soft-Off Power-on mode for AC power recovery Fan Fans with tachometer status monitoring Status monitor for speed control Low noise fan speed control Pulse Width Modulated (PWM) fan connectors Operating Environment / Compliance RoHS RoHS Compliant Environmental Spec. Operating Temperature: 0°C to 40°C (32°F to 104°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 10% to 85% (non-condensing) Non-operating Relative Humidity: 10% to 95% (non-condensing)
