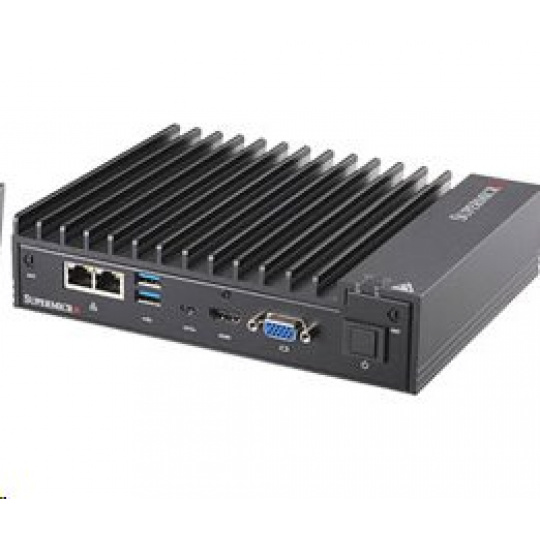

Key Features   - IoT Gateway for Smart     Factory/Building/Home   - Kiosk, Interactive info system   - Environmental Monitor 1. Intel® Atom™ Processor E3940,     Single Socket FCBGA 1296 2. System-on-Chip 3. 1 Full size Mini-PCIe,     1 M.2 2280 B-Key for SATA or PCIe SSD 4. 1 non-ECC DDR3L SODIMM; up to 8GB 5. Dual GbE LAN ports via Intel I210-AT 6. 4 COM, 2 USB 3.0, 4 USB 2.0 7. 1 VGA, 1 HDMI 8. Fanless design 9. Lockable 12V DC 40W power adapter Product SKUs SYS-E100-9AP SuperServer E100-9AP (Black)   Motherboard Super A2SAN-E   Processor/Cache CPU Intel® Atom™ Processor E3940 FCBGA 1296 System-on-Chip CPU TDP support 9W   System Memory Memory Capacity 1x 204-pin DDR3L SO-DIMM socket Memory Type 1866/1600/1333MHz Unbuffered non-ECC SO-DIMM DDR3L, 204-pin gold-plated DIMMs DIMM Sizes 8GB, 4GB, 2GB Memory Voltage 1.35 V   On-Board Devices Network Controllers Dual GbE LAN with Intel i210-AT controller   Input / Output LAN 2 RJ45 Gigabit Ethernet LAN ports USB 2 USB 3.0 (front) 4 USB 2.0 (rear) COM Port 4 COM ports (4 headers); 2 RS232, 2 RS232/422/485, RS-485 supports auto flow control Video 1 VGA, 1 HDMI Others 1 DIO via DB9 Chassis Form Factor 3.5" SBC Model CSE-E101   Dimensions Width 7.68" (195mm) / 9.5" (241mm) - pkg. Height 1.73" (44mm) / 5.5" (140mm) - pkg. Depth 5.94" (151mm) / 8" (203mm) - pkg. Available Colors Black   Front Panel Buttons Power On/Off button LEDs Power LED and Hard drive activity LED   Expansion Slots PCI-Express 1 Full size Mini-PCIe (1 USB 2.0, 1 PCIe Gen2)   Drive Bays Internal 1 M.2 2280 B-Key for SATA or PCIe SSD (2242 can be supported with bracket)   System Cooling Fans Fan-less design   Power Supply Lockable 12V DC 40W power adapter   System BIOS BIOS Type 64Mb SPI Flash EEPROM with AMI UEFI BIOS BIOS Features Plug and Play (PnP) DMI 2.3 ACPI 5.0 USB Keyboard support SMBIOS 2.7.1 UEFI   Management Software SuperDoctor® 5 Watch Dog Power Configurations ACPI Power Management ATX Power connector Control of power-on for recovery from AC power loss CPU thermal trip support for processor protection   Operating Environment / Compliance RoHS RoHS Compliant Environmental Spec. Operating Temperature:    -20°C to 60°C (-4°F to 140°F) Non-operating Temperature:    -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity:    8% to 90% (non-condensing) Non-operating Relative Humidity:    5% to 95% (non-condensing) Operational Vibration, IEC 60068-2-64, 5 Grms, random, 5~500 Hz, 1hr/axis Operational Shock, IEC 60068-2-27, 30G, half sine, 11ms
