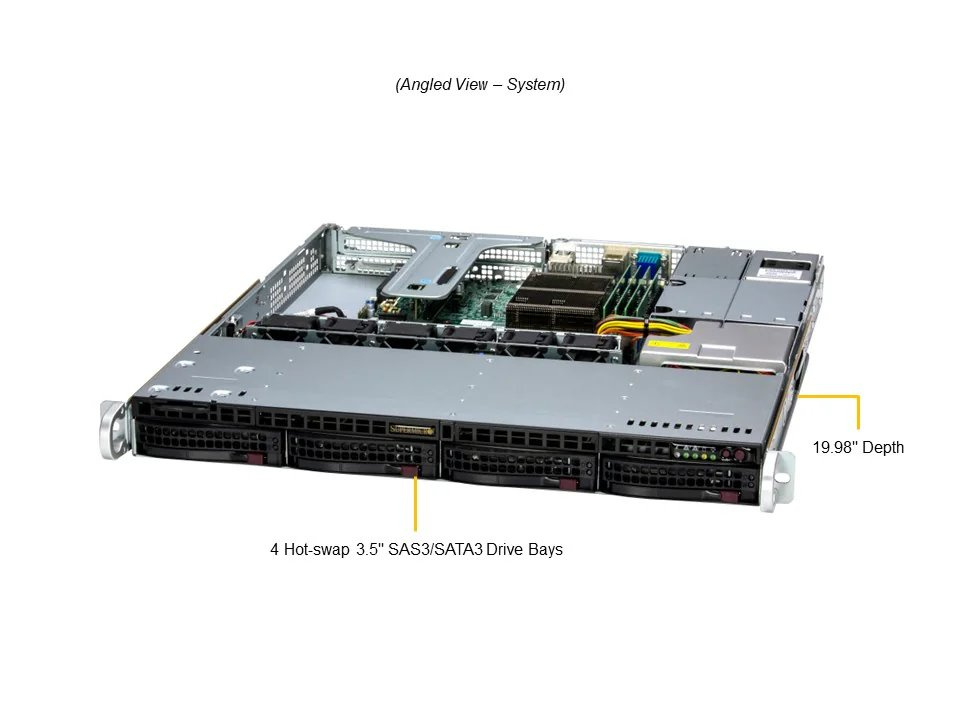

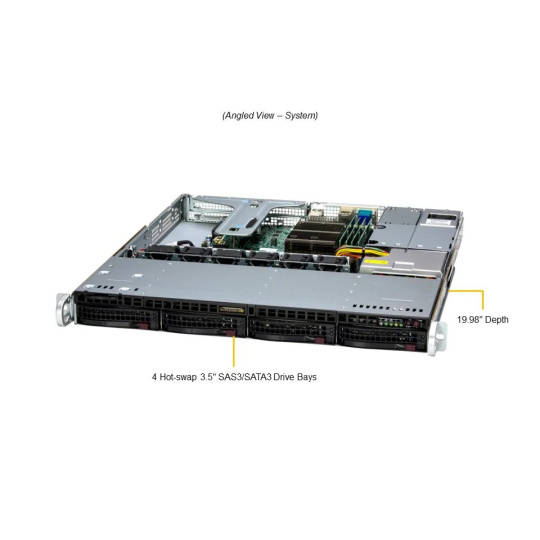

Key Applications Web/Hosting ApplicationEmail/Firewall/Print ServerGeneral Purpose Key Features Single Socket V0 (LGA-1700) supports Intel® Xeon® 6300-series / E-2400 series, Intel® Pentium® processors 4 DIMMs; Up to 128GB of DDR5 ECC UDIMM memory with speeds of up to 4400MHz 1 PCIe 5.0 x16 or 2 PCIe 5.0 x8 (FHHL & LP); 1 Dedicated Internal HBA slot Intel® Ethernet Controller i210 2x 1GbE RJ45 Default single Titanium 600W Power Supply; Optional redundant power by adding 1x Power Supply Module Product SKUs SuperServer SYS-511R-M Motherboard Super X13SCH-SYS Processor CPU Single V0 (LGA-1700) Intel® Xeon® 6300-series/E-2400/Pentium® G7400/G7400T processors Core Count Up to 8C/16T; Up to 24MB Cache Note Supports up to 95W TDP CPUs (Air Cooled) System Memory Memory Slot Count: 4 DIMM slots/2 Channels Max Memory (2DPC): Up to 128GB 4400MT/s ECC DDR5 UDIMM View Memory Options Memory Voltage 1.1V On-Board Devices SATA SATA (6Gbps) ; RAID 0/1/5/10 support Chipset Intel® C266 Network Connectivity 2 RJ45 1GbE with Intel® I210 View AOC Options Input / Output LAN 2 RJ45 1 GbE LAN ports 1 RJ45 1 GbE Dedicated BMC LAN port (IPMI shared on LAN port 1) USB 4 USB 2.0 ports(header) 2 USB 3.2 Gen1 Type-A ports(rear) 2 USB 2.0 Type-A ports(rear) 2 USB 3.2 Gen1 ports(Header) 1 USB 3.2 Gen1 Type-A port(Header) Video 1 VGA port Serial 1 COM port(Rear) 1 COM port(Header) TPM 1 TPM header System BIOS BIOS Type AMI 32MB SPI Flash EEPROM Management Software SuperCloud Composer® Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New! Power configurations ACPI/APM Power Management Security Hardware Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant Features Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown PC Health Monitoring CPU Monitors for CPU Cores, Chipset Voltages, Memory 6 + 1 Phase-switching voltage regulator FAN Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors Temperature Monitoring for CPU and chassis environment Thermal Control for fan connectors Chassis Form Factor 1U Rackmount Model CSE-813MF2TS-R0RCNBP Dimensions and Weight Height 1.7" (43 mm) Width 17.2" (437 mm) Depth 19.98" (507 mm) Package 8.5" (H) x 24" (W) x 29.5" (D) Weight Gross Weight: 30.4 lbs (13.8 kg) Net Weight: 17.6 lbs (8 kg) Available Color Black Front Panel LED Device Activity LAN 1 Activity LAN 2 Activity Power status System information Buttons Power On/Off System Reset Expansion Slots PCI-Express (PCIe) Configuration Default 1 PCIe 5.0 x8 FHHL slot 1 PCIe 5.0 x8 LP slot Option A 1 PCIe 5.0 x16 FHHL slot View AOC Options Drive Bays / Storage Drive Bays Configuration Default: Total 4 bays 4 front hot-swap 3.5" SAS*/SATA drive bays (*SAS support may require additional storage controller and/or cables) View Drive Options M.2 2 M.2 PCIe 4.0 x4 NVMe slots (M-key 2280/22110) View M.2 Options Peripheral Bays 2 2.5" bays (optional) System Cooling Fans 2 AOC cooling Fan(s) (optional) 4 middle cooling PWM 40x40x28mm Fan(s) Air Shroud 1 Air Shroud Power Supply 1x 600W Redundant Titanium Level (96%) power supply Dimension (WxHxL) 54.5 x 40.25 x 220 mm Input 600W: 100-127Vac / 50-60Hz 600W: 200-240Vdc / 50-60Hz 600W: 200-240Vac / 50-60Hz +12V Max: 50A / Min: 0A (100Vac-127Vac) Max: 50A / Min: 0A (200Vdc-240Vdc) Max: 50A / Min: 0A (200Vac-240Vac) 5V SB Max: 4A / Min: 0A Output Type Backplanes (gold finger) Operating Environment Environmental Spec. Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -30°C to 60°C (-22°F to 140°F) Operating Relative Humidity: 8% to 80% (non-condensing) Non-operating Relative Humidity: 8% to 90% (non-condensing)
