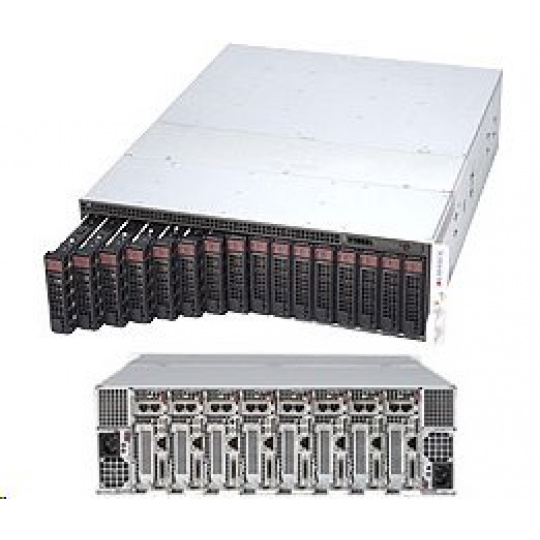

Key Features (per node) • Cloud Computing • Web Cache • Web Hosting, VM • Social Networking 1. Single socket H4 (LGA 1151) supports Intel® Xeon® processor E3-1200 v5, Intel® 6th Gen. Core™ i3 series, Intel® Celeron® and Intel® Pentium® 2. 2x 3.5" SATA3 by default; 2x 2.5" SATA3 HDDs w/ Optional kits 3. Up to 64GB ECC UDIMM DDR4-2133MHz in 4 sockets 4. IPMI 2.0 + KVM with dedicated LAN Dual-port 1GbE LAN (Intel i350) 5. 1x PCI-E 3.0 x8 and 1x Micro-LP 6. 2x USB 2.0, 1x VGA, 1x COM port, (with KVM dongle) 7. 1x USB 3.0 (Type A), 1x SATA DOM 8. 4x 8cm Heavy duty fans with optimal cooling zone 9. 1600W Redundant Titanium Level power supplies Product SKUs SuperServer SYS-5039MS-H8TRF (Black) Motherboard Motherboard MBD-X11SSD-F Processor/Cache CPU Single Socket H4 (LGA 1151) supports: Intel® Xeon® processor E3-1200 v5, Intel® 6th Gen Core™ i3, Intel® Pentium®, Intel® Celeron® processors CPU TDP up to 80W System Memory (per node) Memory Capacity 4x 288-pin DDR4 DIMM slots Supports up to 64 GB DDR4 ECC Un-Buffered memory (UDIMM) Memory Type 2133MHz ECC DDR4 SDRAM 72-bit, 288-pin gold-plated UDIMMs DIMM Sizes 16GB, 8GB, 4GB Memory Voltage 1.2 V Error Detection Corrects single-bit errors Detects double-bit errors (using ECC memory) Expansion Slots (per node) PCI-Express 1x PCI-E 3.0 x8 Low-profile slot 1x Micro-LP for Dual GbE (pre-installed); 10GbE or IB AOC optional Network Devices (per node) Micro-LP NIC Intel® i350 GbE controller Dual RJ-45 connectors Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output Intel® I/O Acceleration Technology (I/O AT) MicroLP Adapter Matrix (Networking options) On-Board Devices (per node) Chipset Intel® C236 chipset SATA SATA3 (6Gbps) via C236 controller IPMI Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM over LAN support ASPEED AST2400 BMC Graphics ASPEED AST2400 Graphics (BMC with Graphic controller) Input / Output (per node) SATA 2x SATA3 (6Gbps) ports LAN 2x RJ45 Gigabit Ethernet LAN ports 1x RJ45 Dedicated IPMI LAN port USB 2x USB 2.0 ports + 1x USB 3.0 Type A port DOM SATA DOM (Disk on Module) power connector support VGA 1x VGA port System BIOS BIOS Type 128Mb SPI Flash EEPROM with AMI BIOS BIOS Features DMI 2.3 ACPI 1.0 / 2.0 USB Keyboard support SMBIOS 2.3 Rear Window (each node) Switch Power / UID Chassis Form Factor 3U Model CSE-938BH-R1K68B Dimensions and Weight Height 5.21" (132.5 mm) Width 17.26" (438.4 mm) Depth 23.2" (589 mm) Package 11.65" (H) x 26.26" (W) x 34" (D) Weight Net Weight: 62.2 lbs (28.21 kg) Gross Weight: 88 lbs (39.92 kg) Color Black Front Panel Buttons Power On/Off button LEDs Power LED Node status LED Drive Bays (per node) Internal 2x 3.5" Hot-swap SATA3 (6Gbps) HDDs per node (or 2x 2.5" SATA3 with optional kits); up to 16 HDDs total Enterprise SATA HDD only recommended System Cooling Fans 4x 8cm Heavy duty fans with optimal cooling zone Power Supply 1600W Titanium Level (96%) High-efficiency Redundant Single Output Power Supplies AC Input 800W Output @ 100-140V, 7-10A, 50-60Hz 1600W Output @ 180-240V, 8-11A, 50-60Hz DC Output 800W: +12V/67A, +5Vsb/1A 1600W: +12V/133A, +5Vsb/1A Certification Titanium Level Certified96% Titanium Level [ Test Report ] PC Health Monitoring CPU Monitors for CPU Cores, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages. 3-Phase-switching voltage regulator with auto-sense from 0.5V-2.3V FAN Cooling zone Temperature Monitoring for CPU and chassis environment Operating Environment / Compliance RoHS RoHS Compliant Environmental Spec. Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
